Milwaukee SSPE 1300 SX W SAWZALL 4933428520
SKU: SKU250626193226001
EAN: 4002395241545
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | SSPE 1300 SX |
| MPN | 4933428520 |
| EAN | 4002395241545 |
| Product Category | Power Tools | Sawing and Cutting | Reciprocating Saws |
| Description | |
|---|---|
| Specifications | |
|---|---|
| AVS Anti-Vibration System | Yes |
| No load stroke rate (spm) | 0 - 2800 |
| Power input (W) | 1300 |
| Power output (W) | 600 |
| Standard equipment | 4 m cable, 1 SAWZALL™ blade, additional keyed blade clamp |
| Stroke length (mm) | 32 |
| Stroke rate (spm) | 0-3.00 |
| Supplied in | Kitbox |
| Article Number | 4933428520 |
| EAN | 4002395241545 |
| Weight (kg) | 3.9 |
| Sound power level (Lwa)(dB(A)) | 102 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 91 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration cutting boards (m/s²) | 14,5 |
| Vibration cutting boards uncertainty (m/s²) | 1,5 |
| Vibration cutting wooden beam (m/s²) | 22,5 |
| Vibration cutting wooden beam uncertainty (m/s²) | 1,5 |
| What's Included | |
|---|---|
|

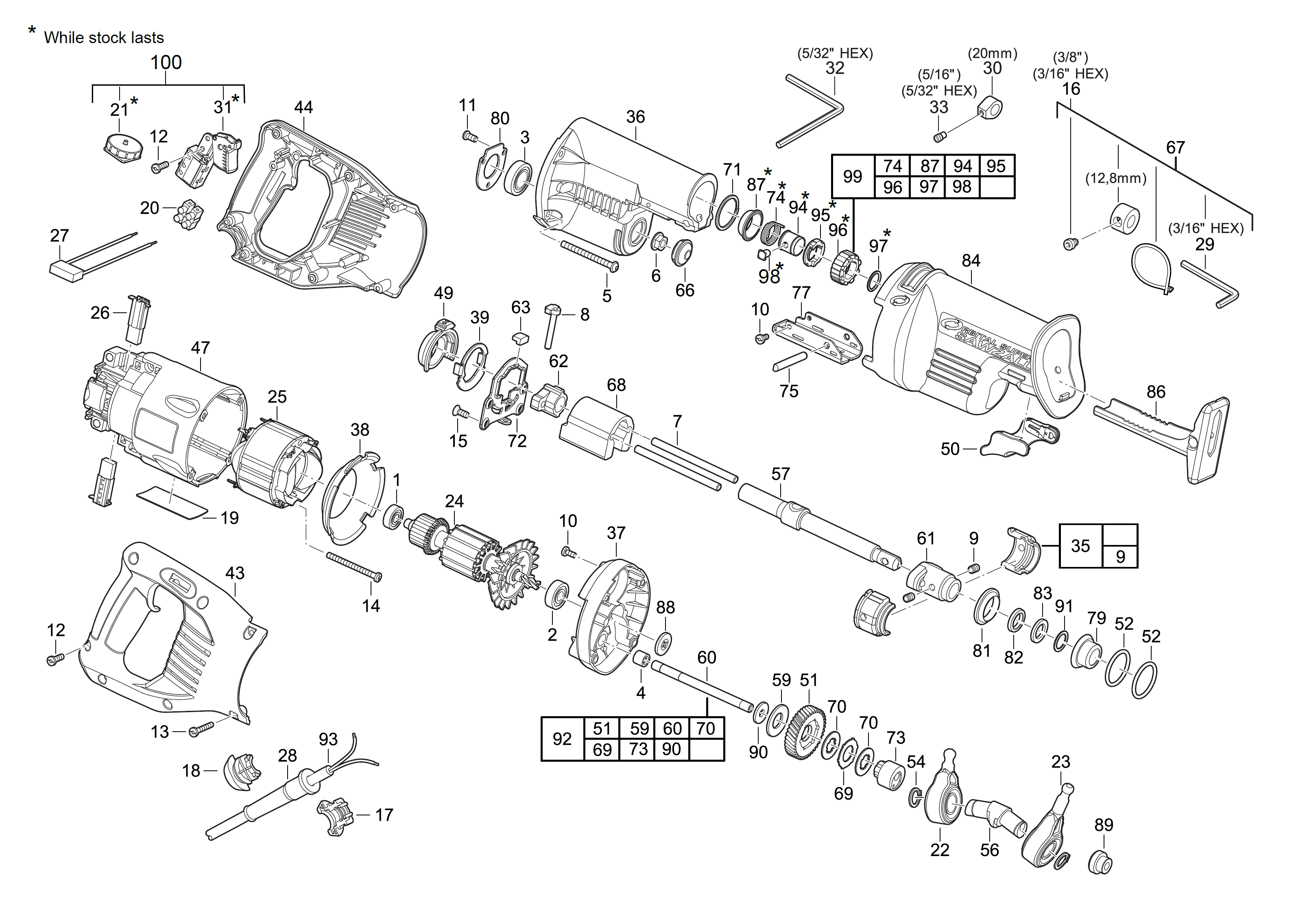

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 02040845 | BALL BEARING | 1 |
| 02040915 | BALL BEARING | 1 |
| 02041511 | BALL BEARING | 1 |
| 02502150 | NEEDLE BEARING | 1 |
| 05880302 | SCREW | 1 |
| 06553790 | NUT | 1 |
| 06650045 | DOWEL PIN | 1 |
| 06650505 | BOLT | 1 |
| 06827253 | SCREW | 1 |
| 06827255 | SCREW | 1 |
| 06827270 | SCREW | 1 |
| 06827326 | SCREW | 1 |
| 06827453 | SCREW 8-16X2-1/4 PAN PLAS | 1 |
| 06828870 | SCREW | 1 |
| 06830115 | SCREW | 1 |
| 06832976 | SCREW SCREW-BLADE CLAMP | 1 |
| 14080075 | COUPLING | 1 |
| 14200480 | POTENTIOMETER | 1 |
| 14300080 | BEARING BUSH HALF | 2 |
| 14461060 | LOCK COMPLETE | 1 |
| 14670126 | ECCENTRIC DISC | 1 |
| 14670136 | ECCENTRIC DISC | 1 |
| 16340510 | ARMATURE | 1 |
| 18341510 | ELECTRIC FIELD | 1 |
| 22200520 | CARBON BRUSH SET | 2 |
| 22330035 | CAPACITOR | 1 |
| 22560625 | CLAMP | 1 |
| 22644523 | CABLE | 1 |
| 23660208 | SWITCH | 1 |
| 28142600 | GEAR BOX HOUSING | 1 |
| 28282600 | PLATE | 1 |
| 31050155 | STOP DISC | 1 |
| 31110130 | PLATE | 1 |
| 31150170 | COVER | 1 |
| 31170260 | CLAMP | 1 |
| 31170265 | CLAMP | 1 |
| 31442090 | RIGHT HANDLE HALF | 1 |
| 31442095 | LEFT HANDLE HALF | 1 |
| 31500085 | MOTOR HOUSING | 1 |
| 31520045 | LEVER | 1 |
| 31520090 | SHOE REL.LEVER KIT | 1 |
| 32402050 | GEAR | 1 |
| 34400040 | O-RING | 1 |
| 34600125 | RETAINING RING | 1 |
| 34601315 | RING | 1 |
| 34603700 | RETAINING RING | 1 |
| 36920701 | SHAFT | 1 |
| 38506400 | SPINDLE | 1 |
| 40500162 | TORSION SPRING | 1 |
| 40508850 | DISC SPRING | 1 |
| 42120190 | REDUCT. GEAR SHAFT | 1 |
| 42240066 | ADAPTER SLEEVE | 1 |
| 42240525 | BEARING BUSH | 1 |
| 42380055 | RUBBER BUFFER | 1 |
| 42500355 | ECCENTRIC DISC | 1 |
| 42500360 | ECCENTRIC DISC | 1 |
| 42520380 | BEARING COVER | 1 |
| 42680685 | CLAMP | 1 |
| 42870180 | BALANCE WEIGHT | 1 |
| 43060676 | PLATE | 1 |
| 43060685 | DISC PLATE | 1 |
| 43360125 | BOLT | 1 |
| 43560620 | ECCENTRIC DISC | 1 |
| 43780577 | BUSH | 1 |
| 44601635 | PIN | 1 |
| 44601750 | LOCK PIN | 1 |
| 44660880 | HOLDER | 1 |
| 44760210 | CABLE ENTRY SLEEVE | 1 |
| 44860035 | PROTECTIVE CAP | 1 |
| 44860655 | BEARING CAGE | 1 |
| 45060110 | SEAL | 1 |
| 45060475 | SEAL RING | 1 |
| 45060501 | FELT PACKING | 1 |
| 45120700 | INSULATOR | 1 |
| 45160645 | DISTANCE HOLDER | 1 |
| 45220175 | SLEEVE | 1 |
| 45280555 | SEAL RING | 1 |
| 45361445 | SPACER | 1 |
| 45881555 | WASHER | 1 |
| 45888577 | WASHER | 1 |
| 49225016 | CLAMPING PIECE | 1 |
| 4931428526 | RATING PLATE | 1 |
| 4931454350 | SWITCH | 1 |
| 49960070 | Wood Drill Selfeed Allen Key 5/32-1pc | 1 |
| 49960080 | WRENCH 3/16 | 1 |
Specifications
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Blade Length | TBA |
| Blade Location | TBA |
| Blade Strength | TBA |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Cutting Angle | TBA |
| Cutting Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | SSPE 1300 SX |
| Motor Type | TBA |
| MPN | 4933428520 |
| Number of Batteries | TBA |
| Number of Items in Set | TBA |
| Power Source | TBA |
| Safety Type IP | TBA |
| Set Includes | TBA |
| Suitable For | TBA |
| Type | Reciprocating Saws |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
