Milwaukee M18 CHD-402C SDS-plus D-Handle Rotary Hammer 4933472143
SKU: SKU250626195108003
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Blow energy (EPTA)(J) | 2.3 |
| Blow energy (J) | 2.3 |
| Kit included | 2 x M18 B4 Battery packs, M12-18 FC Charger, Kitbox |
| Max. drilling concrete (mm) | 26 |
| Max. drilling steel (mm) | 13 |
| Max. drilling wood (mm) | 28 |
| Max. percussion rate (bpm) | 0 - 4900 |
| No load speed (rpm) | 0 - 1400 |
| Optimised drilling capacity in concrete (mm) | 26 |
| Reception | SDS-Plus |
| Standard equipment | side handle, depth gauge, grease |
| Supplied in | Kitbox |
| Tool reception | SDS-Plus |
| Article Number | 4933472143 |
| Battery pack capacity (Ah) | 4.0 |
| Battery type | Li-ion |
| Charger included | M12-18 FC |
| Charger supplied | 45 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 4.1 (M18 B4) |
| Sound power level (Lwa)(dB(A)) | 101.25 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 90.25 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 10.4 |
| Vibration chiselling uncertainty (m/s²) | 1.5 |
| Vibration drilling into concrete [m|s²] | 12.4 |
| Vibration drilling into concrete uncertainty [m|s²] | 1.5 |
| Vibration level (m/s²) | 12.4 |
| Vibration percussion drilling into concrete [m|s²] | 12.4 |
| What's Included | |
|---|---|
|

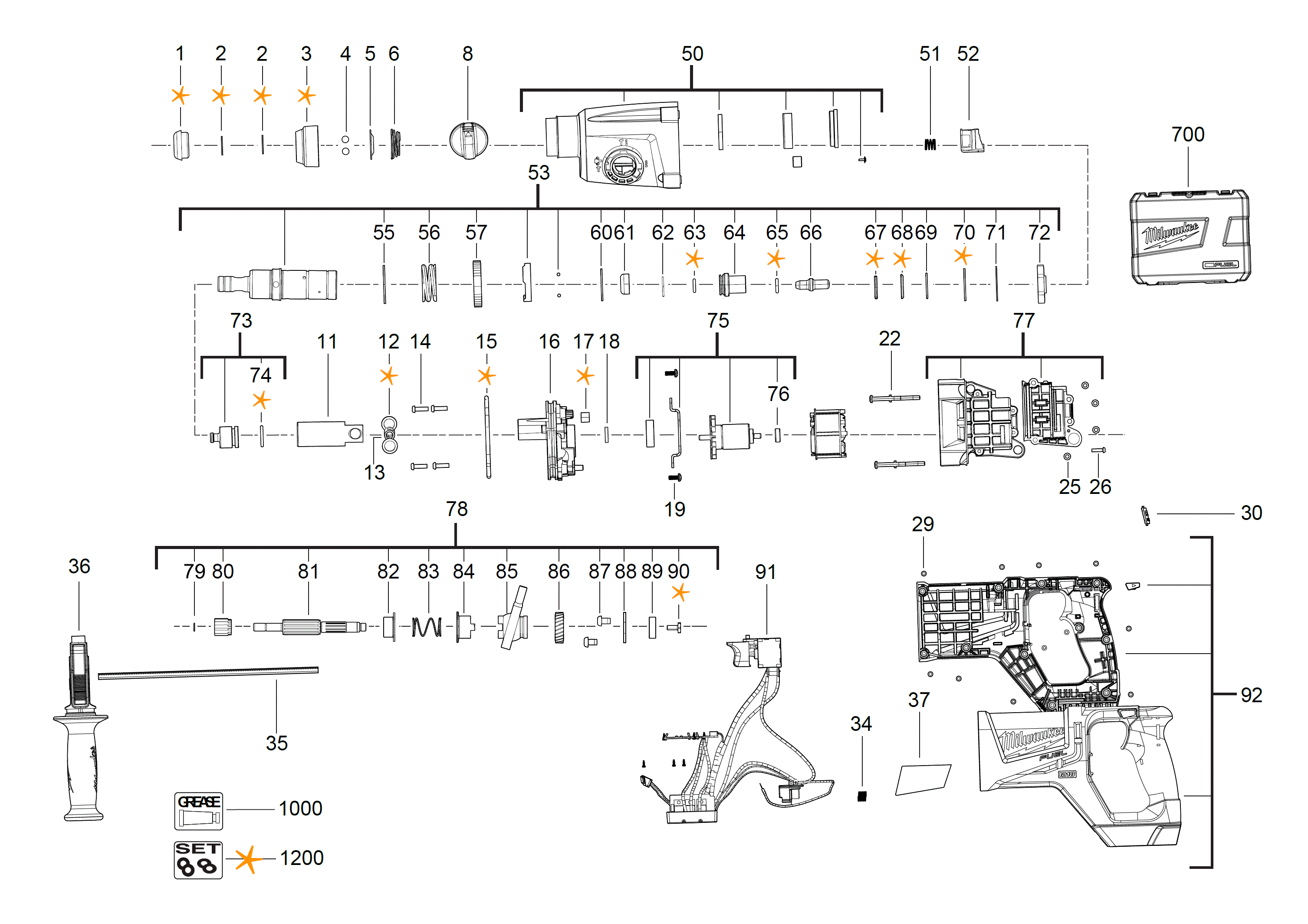

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 304389001 | AUXILIARY HANDLE | 1 |
| 4931408243 | PRESSURE SPRING | 1 |
| 4931436014 | BALL BEARING | 1 |
| 4931436532 | PISTON | 1 |
| 4931436533 | O-RING | 1 |
| 4931436536 | FELT | 1 |
| 4931436552 | HOLDING RING | 1 |
| 4931436554 | WOBBLE PLATE | 1 |
| 4931436764 | RING | 2 |
| 4931436765 | PLATE | 1 |
| 4931436767 | SWITCH BUTTON | 1 |
| 4931436768 | WASHER | 1 |
| 4931436769 | SCREW | 4 |
| 4931436793 | LOCKING ROD | 1 |
| 4931436797 | RING | 1 |
| 4931436798 | SLEEVE | 1 |
| 4931436800 | WASHER | 1 |
| 4931436801 | SPRING | 1 |
| 4931436802 | REDUCTION GEAR | 1 |
| 4931436804 | HOLDING RING | 1 |
| 4931436807 | CYLINDRICAL BOLT | 1 |
| 4931436812 | PINION | 1 |
| 4931436814 | PINION | 1 |
| 4931436815 | SPRING | 1 |
| 4931436816 | BALL BEARING | 1 |
| 4931436818 | PLATE | 1 |
| 4931436819 | O-RING | 1 |
| 4931436820 | O-RING | 1 |
| 4931436821 | SCREW | 1 |
| 4931436822 | RUBBER RING | 1 |
| 4931436823 | O-RING | 1 |
| 4931443288 | GEAR GREASE | 1 |
| 4931453605 | CHUCK SLEEVE | 1 |
| 4931453606 | BALL | 2 |
| 4931453607 | SPRING | 1 |
| 4931461357 | SCREW | 4 |
| 4931465672 | LOCKING SCREW | 2 |
| 4931472725 | SCREW | 4 |
| 4931472726 | GEAR BOX | 1 |
| 4931472727 | GASKET | 1 |
| 4931472728 | SCREW | 1 |
| 4931472729 | SLIDER | 1 |
| 4931472730 | RATING PLATE | 1 |
| 4931472731 | HOUSING | 1 |
| 4931472732 | SPINDLE KIT | 1 |
| 4931472734 | SNAP DIE | 1 |
| 4931472735 | BEARING END PLATE | 1 |
| 4931472736 | ARMATURE ASSEMBLY | 1 |
| 4931472737 | MOTOR HOUSING | 1 |
| 4931472738 | WOBBLE DRIVE | 1 |
| 4931472739 | SPINDLE | 1 |
| 4931472740 | GEAR | 1 |
| 4931472741 | BALL BEARING | 1 |
| 4931472742 | ELECTRONIC | 1 |
| 4931472743 | HANDLE SHELLS | 1 |
| 4931472744 | CARRYING CASE | 1 |
| 4931472745 | SERVICE-KIT | 1 |
| 4931472890 | STRIKER | 1 |
| 561993001 | RUBBER CAP | 1 |
| 562595001 | O-RING | 1 |
| 620448002 | DEPTH GAUGE | 1 |
| 632400001 | WASHER | 2 |
| 633517001 | WASHER | 1 |
| 633525001 | WASHER | 1 |
| 660165015 | SCREW | 2 |
| 660570005 | SCREW | 11 |
| 672634004 | RETAINING RING | 1 |
| 692732001 | SPRING | 1 |
Specifications
| Battery Included | Yes |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Brand | Milwaukee |
| Chuck Size | TBA |
| Chuck Type | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Speed | TBA |
| Minimum Speed | TBA |
| Model | M18 CHD |
| Motor Type | TBA |
| MPN | 4933472143 |
| Number of Batteries | TBA |
| Number of Pieces | TBA |
| Power Source | TBA |
| Type | SDS Plus |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | 18 |
