Milwaukee M18 BLH-502X Brushless 4-mode 26 Mm SDS-Plus Hammer 4933478894

SKU: SKU250626195229004 EAN: 4058546361761 Milwaukee

Product Description

Glomar Trading - Defining Trade Excellence.

Condition
New: A genuine product, unused and unopened in original packaging.

Main Product Information
Brand	Milwaukee
Model	M18 BLH
MPN	4933478894
EAN	4058546361761
Product Category	Power Tools \| Drilling and Chipping \| SDS Plus

Description

Specifications
-0C	✘
-402X	✘
Blow energy (EPTA)(J)	2.3
Blow energy (J)	2.3
Fits MILWAUKEE® Dust Extractors	M18 CDEX
FIXTEC™ chuck	No
Kit included	2 x M18 B5 Battery packs, M12-18 FC Charger, HD Box
Max. drilling concrete (mm)	26
Max. drilling steel (mm)	13
Max. drilling wood (mm)	26
Max. percussion rate (bpm)	5100
No load speed (rpm)	0 - 1400
Optimised drilling capacity in concrete (mm)	6 - 18
Standard equipment	Side handle, depth gauge, grease
Supplied in	HD Box
Tool reception	SDS-Plus
Article Number	4933478894
EAN	4058546361761
Battery pack capacity (Ah)	5.0
Battery type	Li-ion
Charger included	M12-18 FC
Charger supplied	59 min
No. of batteries supplied	2
Voltage (V)	18
Weight (kg)	2.6
Weight with battery pack (EPTA) (kg)	3.3 (M18 B5)
Sound power level (Lwa)(dB(A))	101.7
Sound power level uncertainty (dB(A))	3
Sound pressure level (Lpa)(dB(A))	90.7
Sound pressure level uncertainty (dB(A))	3
Vibration chiseling (m/s²)	12.7
Vibration chiselling uncertainty (m/s²)	1.5
Vibration drilling (m/s²)	14.9
Vibration drilling uncertainty (m/s²)	1.5

What's Included
1x M18™ brushless 4-mode 26 mm SDS-Plus hammer (Model: None) 2x M18™ 5.0 Ah battery (Model: M18 B5) 1x M12™ - M18™ fast charger (Model: M12-18 FC) 1x HD Box (Model: None) 1x HD Box (Model: None)

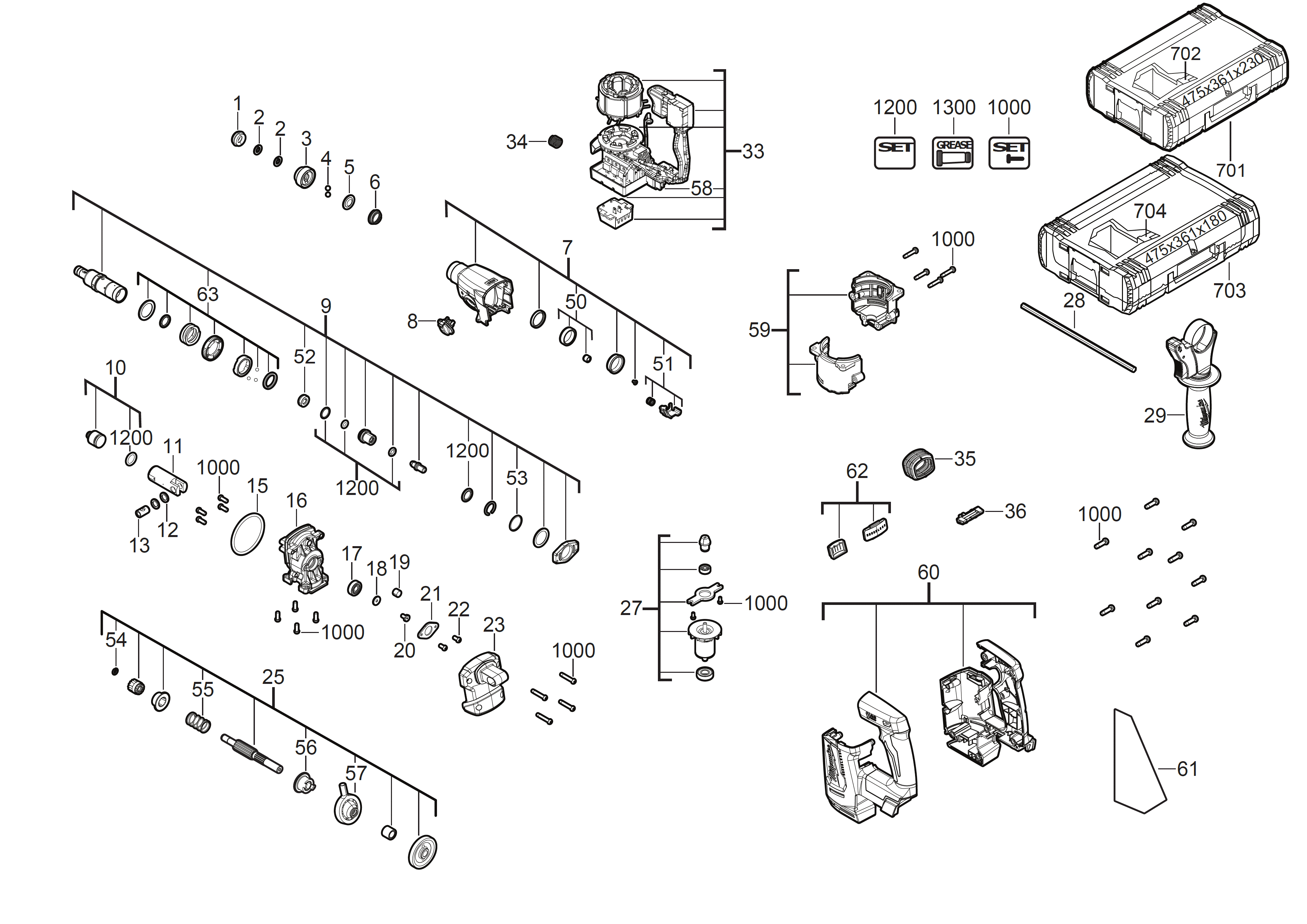

Spare Parts

Part Code	Description	Quantity

2000043211	SEE COMMENT	1
304389001	AUXILIARY HANDLE	1
4931408243	PRESSURE SPRING	1
4931436532	PISTON	1
4931436533	O-RING	1
4931436535	WASHER	1
4931436536	FELT	1
4931436537	BEARING END PLATE	1
4931436538	SCREW	2
4931436545	LEVER	1
4931436547	COVER	1
4931436549	NEEDLE BEARING	1
4931436550	INTERLOCK PLATE	1
4931436552	HOLDING RING	1
4931436553	SPRING	1
4931436554	WOBBLE PLATE	1
4931436556	BOLT SET	1
4931436557	O-RING	1
4931436764	RING	2
4931436765	PLATE	1
4931436767	SWITCH BUTTON	1
4931436797	RING	1
4931436807	CYLINDRICAL BOLT	1
4931436816	BALL BEARING	1
4931443288	GEAR GREASE	1
4931445827	HOUSING	1
4931453605	CHUCK SLEEVE	1
4931453606	BALL	2
4931453607	SPRING	1
4931453611	CONNECTOR	1
4931472890	STRIKER	1
4931480433	HOUSING	1
4931480434	GEAR BOX ASSY	1
4931480435	BALL BEARING	1
4931480436	SHAFT	1
4931480437	ARMATURE	1
4931480438	SWITCH ASSEMBLY	1
4931480439	HANDLE COMPL.	1
4931480440	RATING PLATE	1
4931480441	INSERT	1
4931480442	MOTOR HOUSING	1
4931495606	SPINDLE KIT	1
4931495608	GEAR KIT	1
4931507265	INSERT	1
4932453386	HD Box 3 - 1pc	1
4932498753	HDBOX2FUEL HD BOX 2 FUEL XXX	1
561993001	RUBBER CAP	1
562680001	RUBBER SLEEVE	1
620448002	DEPTH GAUGE	1
632400001	WASHER	2
633525001	WASHER	1
661504001	SCREW	1

Specifications

Battery Included	Yes
Battery Technology	Lithium-Ion (Li-Ion)
Brand	Milwaukee
Chuck Size	TBA
Chuck Type	TBA
Colour	Red
Country/Region of Manufacture	TBA
Features	TBA
Item Diameter	TBA
Item Height	TBA
Item Length	TBA
Item Weight	TBA
Item Width	TBA
Manufacturer Warranty	TBA
Maximum Speed	TBA
Minimum Speed	TBA
Model	M18 BLH
Motor Type	TBA
MPN	4933478894
Number of Batteries	TBA
Number of Pieces	TBA
Power Source	TBA
Type	SDS Plus
Unit Quantity	1
Unit Type	Unit
Voltage	18
