Milwaukee HD28 JSB-32C M28 Body Grip Jigsaw 4933449425
SKU: SKU250626194635002
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Kit included | 2 x M28 BX Battery packs, M28 C Charger, Kitbox |
| Max. cutting capacity steel (mm) | 10 |
| Max. cutting capacity wood (mm) | 135 |
| Mitre capacity (°) | 45 |
| No load stroke rate (spm) | 2100 / 2800 |
| Pendulum action | Yes |
| Pendulum settings | 4 |
| Standard equipment | 5 saw blades, sliding shoe |
| Stroke length (mm) | 26 |
| Supplied in | Kitbox |
| Article Number | 4933449425 |
| Battery pack capacity (Ah) | 3.0 |
| Battery type | Li-ion |
| Charger included | M28 C |
| Charger supplied | 60 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 28 |
| Weight with battery pack (EPTA) (kg) | 3.5 (M28 BX) |
| Sound power level (Lwa)(dB(A)) | 93.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 82.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration cutting metal (m/s²) | 6.4 |
| Vibration cutting metal uncertainty (m/s²) | 1.5 |
| Vibration cutting wood (m/s²) | 6.3 |
| Vibration cutting wood uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

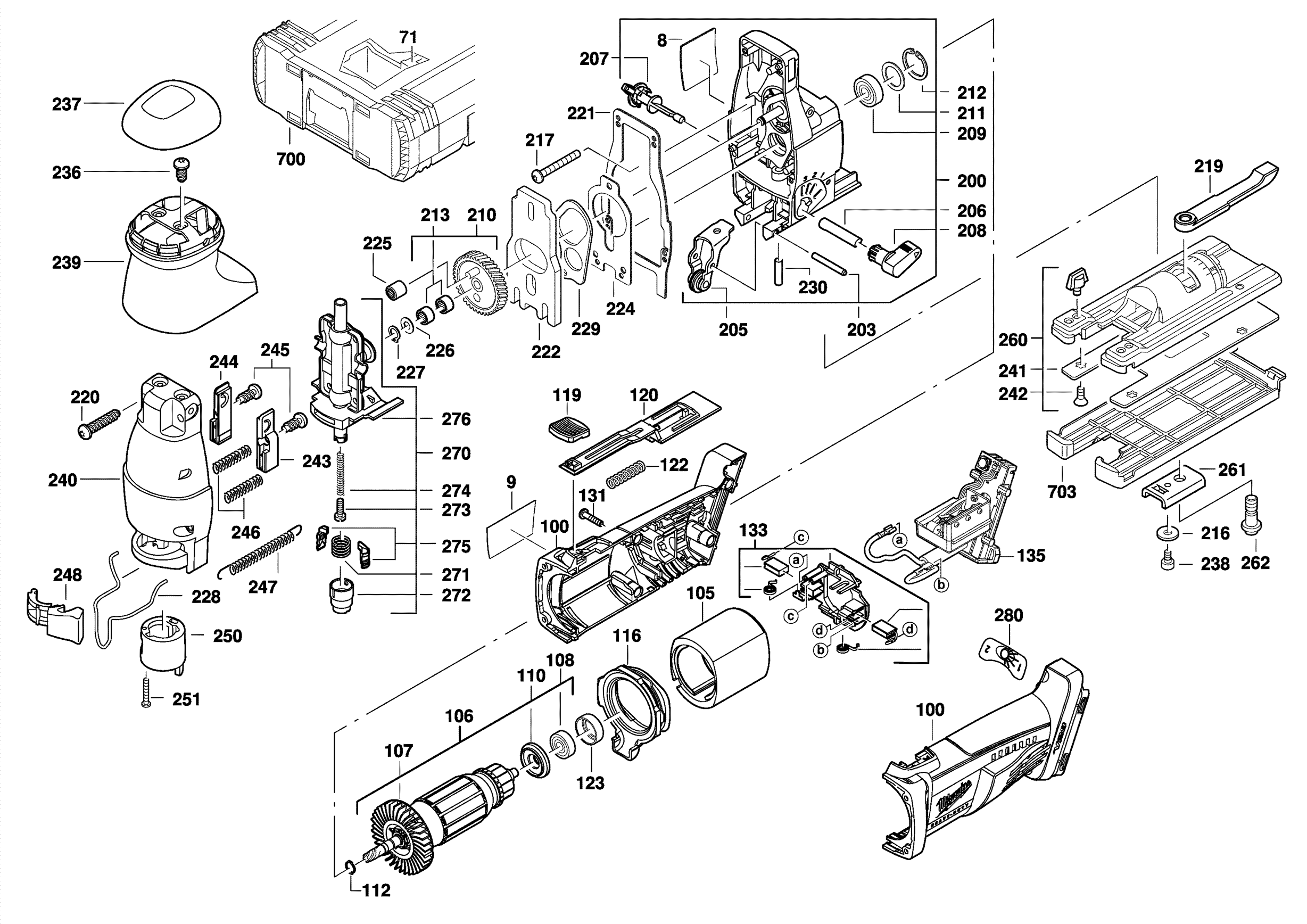

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 290627001 | CARBON BRUSH SET | 1 |
| 4931219422 | NEEDLE BEARING | 2 |
| 4931300699 | SCREW | 1 |
| 4931310396 | SCREW | 4 |
| 4931317532 | SCREW | 2 |
| 4931327696 | PRESSURE SPRING | 1 |
| 4931330051 | HOLDER | 1 |
| 4931330271 | KNOB HANDLE | 1 |
| 4931330272 | BALL LID | 1 |
| 4931330303 | CENTERING JAW | 2 |
| 4931330424 | TORSION SPRING | 1 |
| 4931330453 | TENSION SPRING | 1 |
| 4931330494 | COLLET | 1 |
| 4931341759 | PRESSURE SPRING | 2 |
| 4931342793 | FAN | 1 |
| 4931351729 | RUBBER SLEEVE | 1 |
| 4931357522 | ROCKER BAR | 1 |
| 4931357577 | SHIM | 1 |
| 4931357588 | PRESSURE ELEMENT | 1 |
| 4931357686 | PRESSURE SPRING | 1 |
| 4931357693 | RAM | 1 |
| 4931357982 | WIRE STRAP | 1 |
| 4931357985 | BEARING CAGE | 1 |
| 4931357986 | BEARING CAGE | 1 |
| 4931361376 | NEEDLE BUSH | 1 |
| 4931378812 | SWITCH HANDLE | 1 |
| 4931381103 | INDEXING BOLT | 1 |
| 4931381109 | BALANCE WEIGHT | 1 |
| 4931381112 | CYLINDER PIN | 1 |
| 4931381124 | SCREW | 1 |
| 4931381156 | SWITCH | 1 |
| 4931381158 | INDEXING SLEEVE | 1 |
| 4931381159 | SWITCH LEVER | 1 |
| 4931381610 | TENSION LEVER | 1 |
| 4931381656 | SEAL | 1 |
| 4931392383 | INSULATING DISC | 1 |
| 4931392390 | ELECTRIC FIELD | 1 |
| 4931395232 | ELECTRONIC | 1 |
| 4931401676 | SLIDER | 1 |
| 4931401754 | AIR DEFLECTOR RING | 1 |
| 4931401755 | SWITCH LEVER | 1 |
| 4931401761 | ADHESIVE LABEL | 1 |
| 4931401766 | GEAR | 1 |
| 4931401779 | GEAR BOX | 1 |
| 4931401781 | SAW TABLE | 1 |
| 4931407225 | HOUSING | 1 |
| 4931412827 | GROUND PLATE | 1 |
| 4931415359 | INSERT | 1 |
| 4931426460 | GEAR BOX COVER | 1 |
| 4931426508 | ARMATURE | 1 |
| 4931455670 | RATING PLATE | 1 |
| 4931605092 | RING D471 6X0,7 | 1 |
| 4931605103 | RING D471 8X0,8 | 1 |
| 4931613683 | LOCKING RING D 472 22X1 | 1 |
| 4931621515 | SCREW D 7981 3,9X32 | 4 |
| 4931621829 | BALL BEARING | 1 |
| 4931621830 | DISC N874237 6,1X12X0,5 | 1 |
| 4931621942 | PIN D 6325 4 M6X32 | 1 |
| 4931622131 | DISC | 1 |
| 4931623020 | SCREW | 4 |
| 4931623048 | SCREW | 2 |
| 4931623091 | SEAL RING | 1 |
| 4931623102 | SCREW | 1 |
| 4931623951 | BALL BEARING | 1 |
| 4931624172 | SCREW | 1 |
| 4931624515 | SCREW N874101-1 SHR H-K4X18 T15 | 4 |
| 4931803914 | SEALING WASHER 21,8X15,8X0,2 | 1 |
| 4932357881 | GUIDE SHOE JSPE90X P1 A/M | 1 |
| 4932378986 | CARRYING CASE WITH FOAM INSERT MET | 1 |
Specifications
| Battery Capacity | TBA |
| Battery Included | Yes |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Blade Length | TBA |
| Blade Location | TBA |
| Blade Strength | TBA |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Cutting Angle | TBA |
| Cutting Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | HD28 JSB |
| Motor Type | TBA |
| MPN | 4933449425 |
| Number of Batteries | TBA |
| Number of Items in Set | 6 |
| Power Source | TBA |
| Safety Type IP | TBA |
| Set Includes | 2 x M28 BX Battery packs, M28 C Charger, Kitbox |
| Suitable For | TBA |
| Type | Jigsaws |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | 28 |
