Milwaukee CHS 355 2300 W Chopsaw 4933411760

SKU: 250626193459001 EAN: 4002395236220

Glomar Trading - Defining Trade Excellence.

Condition
New: A genuine product, unused and unopened in original packaging.

Main Product Information
Brand	Milwaukee
Model	CHS 355
MPN	4933411760
EAN	4002395236220
Product Category	Power Tools \| Sawing and Cutting \| Chopsaws

Description

Specifications
Bore size (mm)	25.4
Cutting cap. L-shape profile 90º / 45º (mm)	130 / 80
Cutting cap. square profile 90º / 45º (mm)	115 / 80
Cutting capacity rectangle 90º / 45º (mm)	230 x 70 / 100 x 80
Cutting capacity round profile 90° / 45° (mm)	125 / 100
No load speed (rpm)	3800
Power input (W)	2300
Standard equipment	Spanner, allen key, 355 cutting disc
Supplied in	No kitbox or bag supplied
Wheel size (mm)	355
Article Number	4933411760
EAN	4002395236220
Weight (kg)	18
Sound power level (Lwa)(dB(A))	107.5
Sound power level uncertainty (dB(A))	3
Sound pressure level (Lpa)(dB(A))	94.5
Sound pressure level uncertainty (dB(A))	3
Vibration level (m/s²)	3.1
Vibration uncertainty (m/s²)	1.5

What's Included
1x 2300 Watt chopsaw (Model: None)

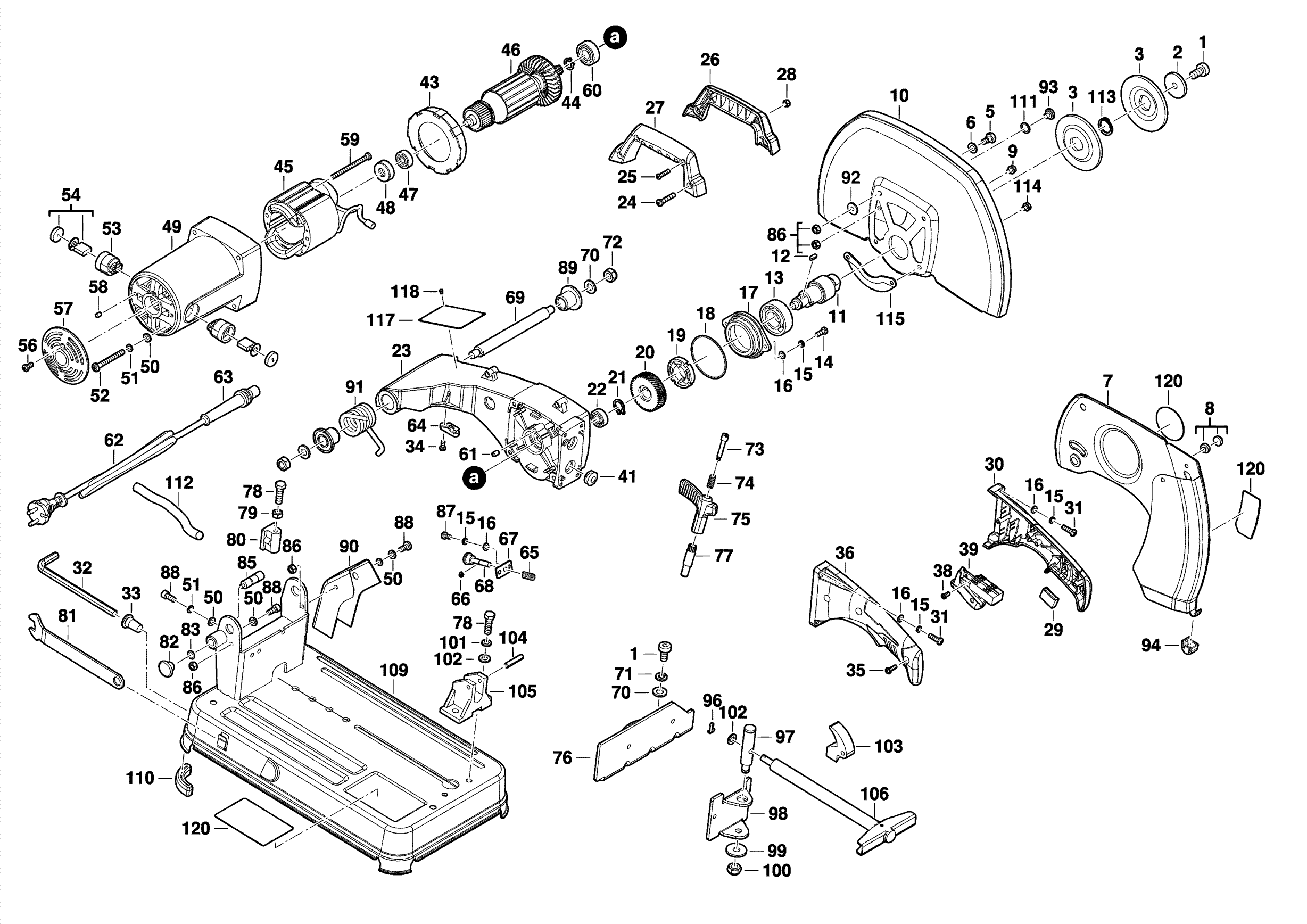

Spare Parts

Part Code	Description	Quantity

4931431000	SCREW	3
4931431001	WASHER	1
4931431002	FLANGE	2
4931431003	SCREW	1
4931431004	WASHER	1
4931431005	GUARD CAP	1
4931431006	RUBBER BUFFER	1
4931431007	SCREW	3
4931431008	GUARD CAP	1
4931431010	SPINDLE	1
4931431011	KEY	1
4931431012	BEARING	1
4931431013	SCREW	2
4931431014	SPRING WASHER	8
4931431015	WASHER	8
4931431016	FLANGE	1
4931431017	O-RING	1
4931431018	LOCK	1
4931431019	GEAR	1
4931431020	RETAINER	1
4931431021	BEARING	1
4931431022	LEVER	1
4931431023	SCREW	2
4931431024	SCREW	1
4931431025	HANDLE	1
4931431026	HANDLE	1
4931431027	HEXAGON NUT	2
4931431028	CAPACITOR	1
4931431029	HANDLE	1
4931431030	SCREW	4
4931431031	HEX WRENCH	1
4931431032	SLEEVE	1
4931431033	SCREW	2
4931431034	SCREW	3
4931431035	HANDLE LEFT	1
4931431036	SCREW	1
4931431037	SWITCH	1
4931431038	RUBBER SLEEVE	1
4931431039	PLATE	1
4931431040	RETAINING RING	1
4931431042	ELECTRIC FIELD	1
4931431044	ARMATURE	1
4931431045	BEARING	1
4931431046	BEARING BUSH	1
4931431047	MOTOR HOUSING	1
4931431048	WASHER	8
4931431049	SPRING WASHER	8
4931431050	SCREW	4
4931431051	BRUSH HOLDER	2
4931431053	CARBON BRUSH	2
4931431054	SCREW	2
4931431055	END COVER CAP	1
4931431056	SET SCREW	2
4931431057	SCREW	2
4931431058	BEARING	1
4931431059	PIN	1
4931431060	CONNECTION CABLE	1
4931431064	PROTECTION SLEEVE	1
4931431066	CABLE CLAMP	1
4931431067	SPRING ELEMENT	1
4931431068	RETAINER	1
4931431069	PLATE	1
4931431070	LOCKING PIN	1
4931431071	SHAFT	1
4931431072	WASHER	4
4931431073	SPRING WASHER	2
4931431074	NUT	2
4931431075	SCREW	1
4931431076	SPRING	1
4931431077	HANDLE	1
4931431078	COVER	1
4931431079	BOLT	1
4931431080	SCREW	3
4931431081	HEXAGON NUT	1
4931431082	STOPPER	1
4931431083	WRENCH	1
4931431084	LOCK BOTTON	1
4931431085	O-RING	1
4931431086	LOCKING BOLT	1
4931431087	NUT	4
4931431088	SCREW	2
4931431089	SCREW	4
4931431090	SLEEVE	2
4931431091	GUARD CAP	1
4931431092	TORSION SPRING	1
4931431093	WASHER	1
4931431094	SCREW	1
4931431095	GUARD CAP	1
4931431097	PIN	1
4931431098	SHAFT	1
4931431099	CLAMP	1
4931431100	WASHER	1
4931431101	LOCKING NUT	1
4931431102	SPRING WASHER	2
4931431103	WASHER	2
4931431104	CLAMP	1
4931431105	PIN	1
4931431106	ACCEPTANCE	1
4931431107	CLAMPING GIP	1
4931431108	BASE PLATE	1
4931431109	RUBBER FOOT	3
4931431110	WASHER	1
4931431111	INSULATION	1
4931431112	RETAINER	1
4931431113	SCREW	1
4931431114	PLATE	1
4931431115	RATING PLATE	1
4931431118	RIVET	4
4931431119	LABEL	1

Battery Capacity	TBA
Battery Included	No
Battery Technology	Lithium-Ion (Li-Ion)
Blade Diameter	TBA
Blade Length	TBA
Blade Location	TBA
Blade Strength	TBA
Brand	Milwaukee
Cable Length	TBA
Charging Time	TBA
Colour	Red
Country/Region of Manufacture	TBA
Cutting Angle	TBA
Cutting Depth	TBA
Item Diameter	TBA
Item Height	TBA
Item Length	TBA
Item Weight	TBA
Item Width	TBA
Manufacturer Warranty	TBA
Model	CHS 355
Motor Type	TBA
MPN	4933411760
Number of Batteries	TBA
Number of Items in Set	TBA
Power Source	TBA
Safety Type IP	TBA
Set Includes	TBA
Suitable For	TBA
Type	Chopsaws
Unit Quantity	1
Unit Type	Unit
Voltage	TBA
