| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PLH 32 |
| MPN | 4933400069 |
| EAN | 4002395233342 |
| Product Category | Power Tools | Drilling and Chipping | SDS Plus |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Blow energy (EPTA)(J) | 3.8 |
| Full load hammer action (bpm) | 0 - 4500 |
| Full load speed (rpm) | 0 - 800 |
| Max. drilling concrete (mm) | 32 |
| Max. drilling masonry (mm) | 32 |
| Max. drilling steel (mm) | 16 |
| Max. drilling wood (mm) | 40 |
| Power input (W) | 900 |
| Standard equipment | Front handle with metal depth gauge, adaptor with 13 mm keyless chuck, drill bit lubricant |
| Supplied in | Kitbox |
| Tool reception | SDS-Plus + Reduced shank 13 mm |
| Article Number | 4933400069 |
| EAN | 4002395233342 |
| Weight (kg) | 3.6 |
| Sound power level (Lwa)(dB(A)) | 106 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 95 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 20 |
| Vibration chiselling uncertainty (m/s²) | 1.5 |
| Vibration drilling (m/s²) | 22 |
| Vibration drilling into concrete [m|s²] | 25 |
| Vibration drilling into concrete uncertainty [m|s²] | 2.3 |
| What's Included | |
|---|---|
|

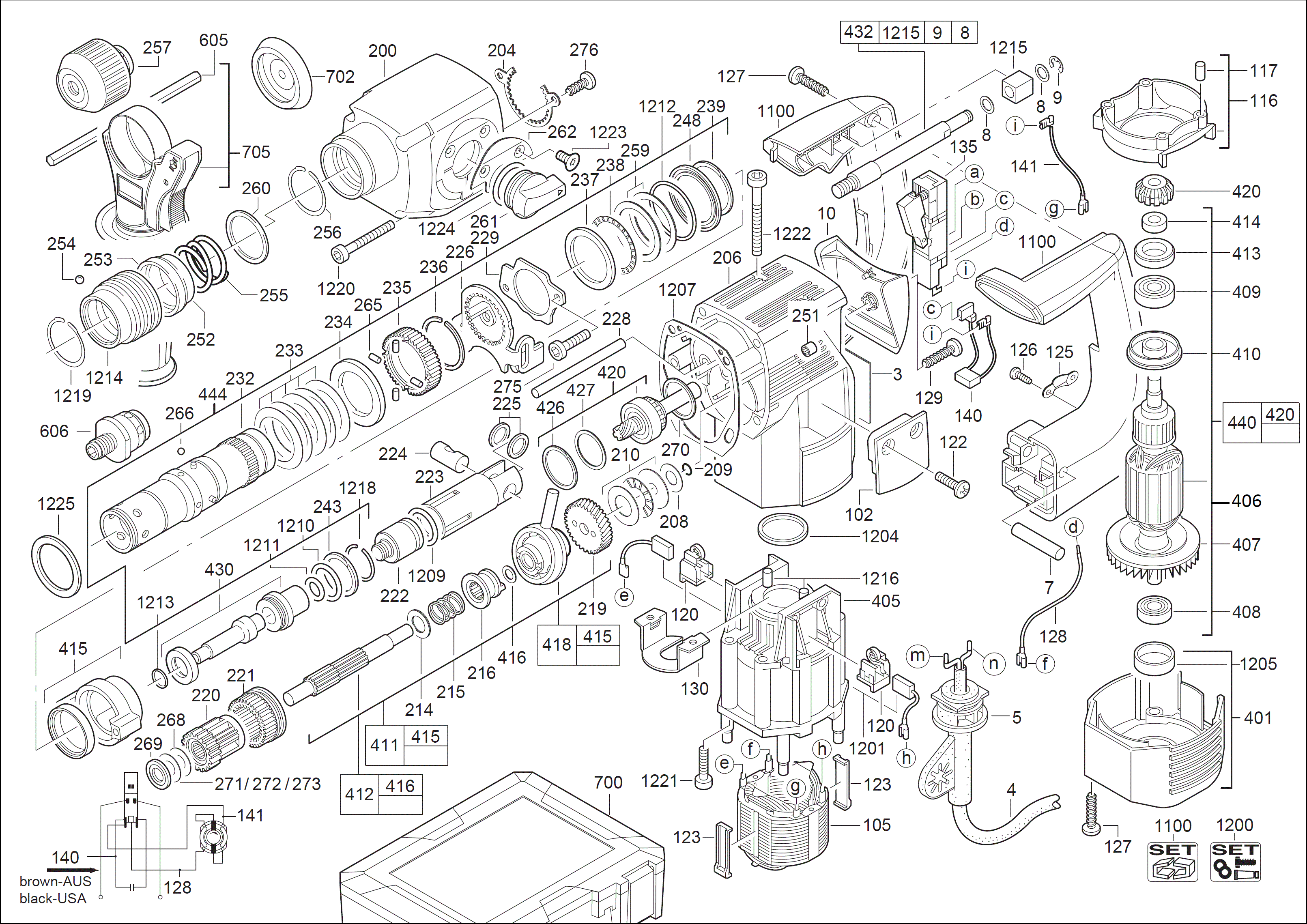

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931219424 | NEEDLE BEARING | 2 |
| 4931250832 | CONNECTION CABLE | 1 |
| 4931256500 | CABLE COLLAR | 1 |
| 4931331549 | HOLDING-DOWN DEVICE | 2 |
| 4931331623 | CYLINDRICAL BOLT | 1 |
| 4931331685 | LOCKING RING | 1 |
| 4931331713 | THRUST BEARING | 1 |
| 4931331735 | GASKET | 1 |
| 4931331752 | SLIDER | 1 |
| 4931331754 | PRESSURE SPRING | 1 |
| 4931331769 | INTERN.GEARED WHEEL | 1 |
| 4931331787 | LATCH PLATE | 1 |
| 4931341740 | GROOVED BALL BEAR. | 1 |
| 4931342793 | FAN | 1 |
| 4931342808 | CENTERING LEDGE | 2 |
| 4931343049 | WASHER | 1 |
| 4931343187 | LOCKING WASHER | 1 |
| 4931344065 | ELECTRIC FIELD | 1 |
| 4931353230 | AIR DEFLECTOR RING | 1 |
| 4931353238 | SPACER | 1 |
| 4931353260 | INSULATING DISC | 1 |
| 4931356522 | SEAL RING | 1 |
| 4931356869 | BEARING COVER | 1 |
| 4931360041 | THRUST BEARING | 1 |
| 4931360377 | GEAR BOX COVER | 1 |
| 4931360732 | MOTOR COVER | 1 |
| 4931360781 | RUBBER SLEEVE | 1 |
| 4931369477 | CARBON BRUSH SET | 1 |
| 4931379022 | SLEEVE | 1 |
| 4931379071 | CUP SPRING | 5 |
| 4931379097 | REDUCT GEAR WHEEL | 1 |
| 4931379098 | PINION SHAFT | 1 |
| 4931379108 | LATCH PLATE | 1 |
| 4931379109 | SCREW | 2 |
| 4931379110 | CLUTCH DISC | 1 |
| 4931379134 | COVER | 2 |
| 4931379420 | SPACER | 1 |
| 4931379585 | FELT WASHER | 1 |
| 4931379587 | CYLINDER | 1 |
| 4931379589 | PRESSURE SPRING | 1 |
| 4931379649 | COUPLING SLEEVE | 1 |
| 4931379705 | SEAL RING | 1 |
| 4931379708 | SCREW | 2 |
| 4931379739 | ADAPTER | 1 |
| 4931379875 | SLEEVE | 1 |
| 4931379881 | REPAIR KIT | 1 |
| 4931382268 | BRUSH HOLDER | 2 |
| 4931382287 | CHUCK ADAPTER | 1 |
| 4931382921 | SLEEVE | 1 |
| 4931382948 | GEAR BOX | 1 |
| 4931384040 | GEAR BOX | 1 |
| 4931384324 | HANDLE COMPL. | 1 |
| 4931384337 | MOTOR HOUSING | 1 |
| 4931384434 | DEPTH GAUGE | 1 |
| 4931384557 | BUSHING | 1 |
| 4931384560 | REPAIR KIT | 1 |
| 4931384561 | REPAIR KIT | 1 |
| 4931384723 | MAINTENANCE SET | 1 |
| 4931384864 | REDUCT. GEAR SHAFT | 1 |
| 4931384896 | SWITCH BOARD | 1 |
| 4931384917 | PLANET GEAR | 1 |
| 4931384919 | SPRING RING | 1 |
| 4931384922 | SPINDLE SLEEVE | 1 |
| 4931387328 | THRUST COLLAR | 1 |
| 4931387332 | PERCUSSION BODY | 1 |
| 4931387348 | O-RING | 1 |
| 4931392174 | PROTECTING COVER | 1 |
| 4931392502 | DAMPING ELEMENT | 1 |
| 4931392506 | SWITCH HANDLE | 1 |
| 4931392752 | SPINDLE GEAR | 1 |
| 4931400216 | REPAIR KIT | 1 |
| 4931400589 | WASHER | 2 |
| 4931405705 | HOLDING-DOWN DEVICE | 4 |
| 4931407945 | SPINDLE SLEEVE | 1 |
| 4931409507 | RING | 1 |
| 4931415219 | RATING PLATE | 1 |
| 4931415335 | CARRYING CASE | 1 |
| 4931426517 | ARMATURE | 1 |
| 4931432327 | REPAIR KIT | 1 |
| 4931616614 | LOCKING RING | 1 |
| 4931621834 | WASHER | 1 |
| 4931621983 | DISC | 1 |
| 4931622153 | SCREW | 1 |
| 4931622564 | DISC N874237 A16,1X26X1 | 1 |
| 4931623081 | PIN | 1 |
| 4931623094 | WASHER | 2 |
| 4931623124 | O-RING | 1 |
| 4931623135 | O-RING | 1 |
| 4931623199 | WASHER | 1 |
| 4931623200 | WASHER | 2 |
| 4931623232 | SEAL RING | 1 |
| 4931623234 | WASHER | 1 |
| 4931623293 | O-RING | 1 |
| 4931623456 | GROOVED DOWEL PIN | 1 |
| 4931623519 | SCREW | 2 |
| 4931623520 | SCREW | 4 |
| 4931623521 | SCREW | 4 |
| 4931623541 | WIRE | 1 |
| 4931623602 | SCREW | 2 |
| 4931623636 | RING | 1 |
| 4931623637 | WASHER | 1 |
| 4931624045 | CYLINDER PULLEY | 4 |
| 4931624096 | DISC N874237 | 1 |
| 4931624097 | DISC N874237 | 1 |
| 4931624098 | DISC N874237 | 1 |
| 4931624101 | BALL BEARING | 1 |
| 4931624264 | DISC N874237 A 10,1X18X1 | 1 |
| 4931624269 | WIRE | 1 |
| 4931624270 | CAPACITOR | 1 |
| 4931624492 | SEAL RING | 1 |
| 4931624515 | SCREW N874101-1 SHR H-K4X18 T15 | 7 |
| 4931624516 | SCREW | 2 |
| 4931624518 | SCREW | 4 |
| 4931805390 | BALL | 4 |
| 4931805437 | BALL | 6 |
| 4931941082 | O-RING N874701 5X1 | 1 |
| 4931945764 | SPRING RING | 1 |
| 4932265320 | DUST CATCHER Dust coll ring P1AM | 1 |
| 4932373725 | HANDLE PHE P1 A/M | 1 |
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | PLH 32 |
| MPN | 4933400069 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | SDS Plus |
| Unit Quantity | 1 |
| Unit Type | Unit |
