| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PLH 28 |
| MPN | 4933446790 |
| EAN | 4002395005482 |
| Product Category | Power Tools | Drilling and Chipping | SDS Plus |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Blow energy (EPTA)(J) | 4.1 |
| Full load hammer action (bpm) | 0 - 4000 |
| Full load speed (rpm) | 0 - 1000 |
| Max. drilling concrete (mm) | 28 |
| Max. drilling steel (mm) | 13 |
| Max. drilling wood (mm) | 40 |
| No load speed (rpm) | 0 - 1500 |
| Power input (W) | 800 |
| Standard equipment | Side handle, 4m cable, depth gauge, grease |
| Supplied in | Kitbox |
| Tool reception | SDS-Plus |
| Article Number | 4933446790 |
| EAN | 4002395005482 |
| Weight (kg) | 3.4 |
| Sound power level (Lwa)(dB(A)) | 101.8 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 90.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 6.81 |
| Vibration chiselling uncertainty (m/s²) | 1.5 |
| Vibration drilling (m/s²) | 10.6 |
| Vibration drilling into concrete uncertainty [m|s²] | 1.5 |
| What's Included | |
|---|---|
|

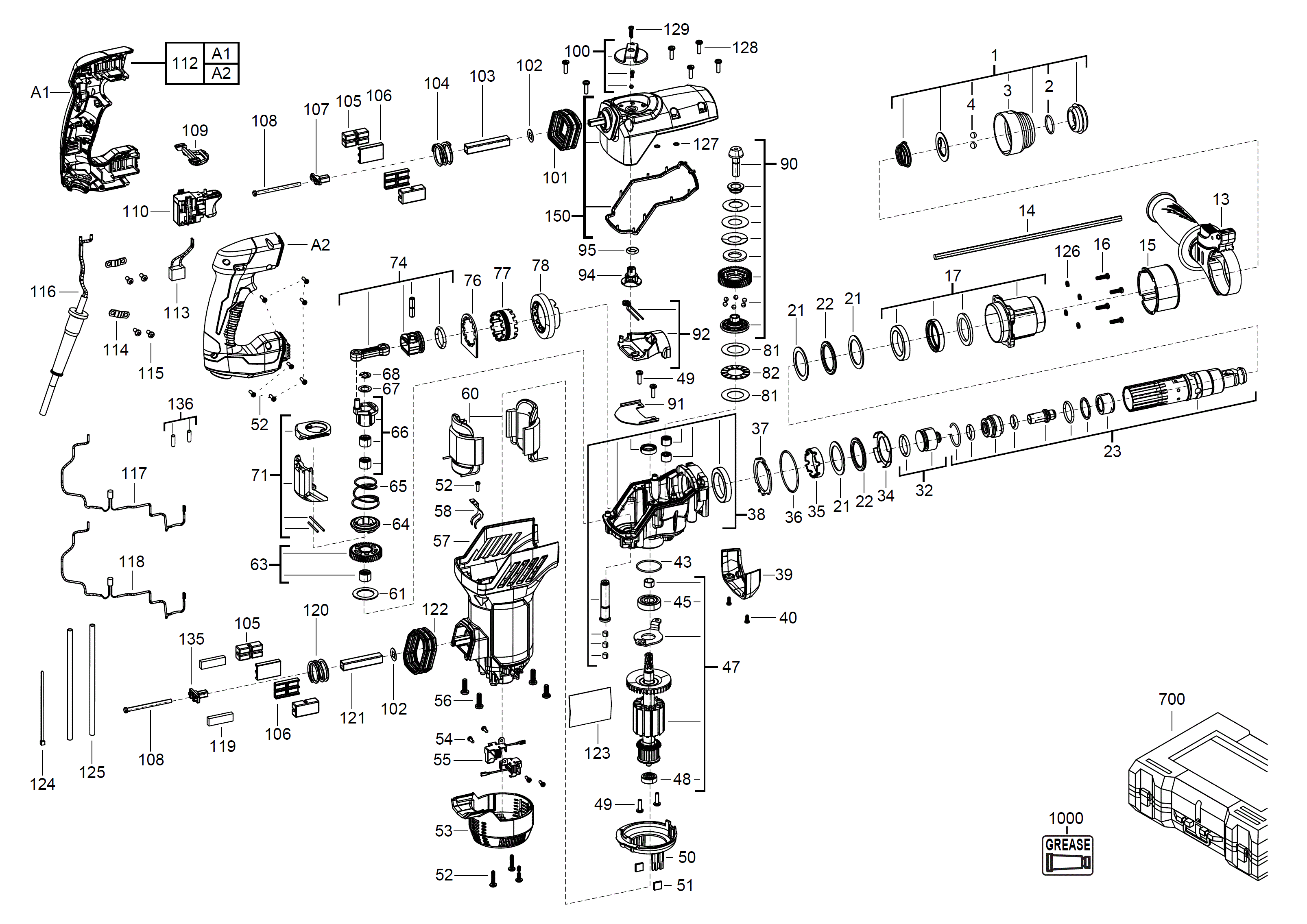

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931435034 | BLOCK | 2 |
| 4931435150 | SCREW | 4 |
| 4931435313 | SCREW | 2 |
| 4931436119 | BALL BEARING | 1 |
| 4931436368 | AUXILIARY HANDLE | 1 |
| 4931436369 | SLEEVE | 1 |
| 4931436370 | SLEEVE | 1 |
| 4931436371 | WASHER | 3 |
| 4931436372 | RUBBER DISC | 2 |
| 4931436374 | PERCUSSION BODY | 1 |
| 4931436375 | BUFFER | 1 |
| 4931436376 | SPINDLE SLEEVE | 1 |
| 4931436377 | O-RING | 1 |
| 4931436378 | PLATE | 1 |
| 4931436379 | GEAR BOX | 1 |
| 4931436380 | HOUSING | 1 |
| 4931436381 | O-RING | 1 |
| 4931436382 | BALL BEARING | 1 |
| 4931436385 | AIR DEFLECTOR RING | 1 |
| 4931436386 | LID F.CARBON HOLDER | 1 |
| 4931436387 | SCREW | 4 |
| 4931436388 | BRUSH HOLDER with brushes | 1 |
| 4931436390 | SCREW | 4 |
| 4931436391 | MOTOR HOUSING | 1 |
| 4931436392 | STAMP | 1 |
| 4931436393 | ELECTRIC FIELD | 1 |
| 4931436395 | WASHER | 1 |
| 4931436397 | RING | 1 |
| 4931436398 | SPRING | 1 |
| 4931436400 | WASHER | 1 |
| 4931436401 | SLEEVE | 1 |
| 4931436402 | SWITCH | 1 |
| 4931436403 | PISTON | 1 |
| 4931436404 | HOLDING PLATE | 1 |
| 4931436405 | INDEXING SLEEVE | 1 |
| 4931436406 | BEVEL GEAR | 1 |
| 4931436407 | WASHER | 2 |
| 4931436408 | NEEDLE BEARING | 1 |
| 4931436409 | COUPLING | 1 |
| 4931436410 | STAMP | 1 |
| 4931436411 | FORK | 1 |
| 4931436412 | JOINT PIECE | 1 |
| 4931436413 | O-RING | 1 |
| 4931436416 | KNOB | 1 |
| 4931436417 | RUBBER CAP | 1 |
| 4931436418 | WASHER | 2 |
| 4931436419 | GUIDE SLEEVE | 1 |
| 4931436420 | SPRING | 1 |
| 4931436421 | SHOCK ABSORBER | 4 |
| 4931436422 | HOLDER | 4 |
| 4931436423 | HOUSING | 1 |
| 4931436424 | SCREW | 2 |
| 4931436425 | PUSH-BUTTON | 1 |
| 4931436426 | SWITCH | 1 |
| 4931436427 | HANDLE COMPL. | 1 |
| 4931436428 | CAPACITOR | 1 |
| 4931436429 | CONNECTION CABLE | 1 |
| 4931436432 | CHOKING COIL | 1 |
| 4931436433 | CHOKING COIL | 1 |
| 4931436434 | FOAM RUBBER | 2 |
| 4931436435 | SPRING | 1 |
| 4931436436 | TUBE | 1 |
| 4931436437 | RUBBER BUFFER | 1 |
| 4931436441 | CABLE | 1 |
| 4931436442 | SLEEVE | 2 |
| 4931436443 | O-RING | 2 |
| 4931436444 | SCREW | 6 |
| 4931436445 | CARRYING CASE | 1 |
| 4931436446 | COVER CAP SET | 1 |
| 4931436447 | COVER CAP | 1 |
| 4931436448 | SPINDLE KIT | 1 |
| 4931436449 | ARMATURE | 1 |
| 4931436450 | CRANK WHEEL | 1 |
| 4931436451 | CRANK WHEEL | 1 |
| 4931436452 | RATING PLATE | 1 |
| 4931443288 | GEAR GREASE | 1 |
| 4931447719 | RETAINING PLATE | 1 |
| 4931448845 | INSULATING HOSE | 1 |
| 4931452249 | GEAR BOX COVER | 1 |
| 4931599038 | ASSEMBLY SET | 1 |
| 4931599147 | CONE | 1 |
| 4931599148 | SERVICE TOOL | 1 |
| 4931599149 | SERVICE TOOL | 1 |
| 4931599150 | SERVICE TOOL | 1 |
| 620448002 | DEPTH GAUGE | 1 |
| 632823001 | PUNCH GUIDE | 2 |
| 660031017 | SCREW | 1 |
| 660031023 | SCREW M3,5 Torx 10 | 11 |
| 660165015 | SCREW | 4 |
| 661189001 | SCREW | 4 |
| 672631001 | SPRING RING | 1 |
| 680866003 | PROTECTION WASHER | 4 |
| 681154001 | BALL | 2 |
| Auxiliary Handle | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Chuck Size | TBA |
| Chuck Type | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Torque | TBA |
| Model | PLH 28 |
| Motor Type | TBA |
| MPN | 4933446790 |
| Number of Batteries | TBA |
| Number of Items in Set | TBA |
| Power | TBA |
| Power Source | TBA |
| Set Includes | TBA |
| Speed | TBA |
| Type | SDS Plus |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
