| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PH 28 |
| MPN | 4933396396 |
| EAN | 4002395234936 |
| Product Category | Power Tools | Drilling and Chipping | SDS Plus |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Blow energy (EPTA)(J) | 3.4 |
| Full load hammer action (bpm) | 0 - 4000 |
| Full load speed (rpm) | 0 - 900 |
| Max. drilling concrete (mm) | 28 |
| Max. drilling steel (mm) | 13 |
| Max. drilling wood (mm) | 30 |
| Power input (W) | 820 |
| Standard equipment | Side handle with depth gauge |
| Supplied in | Kitbox |
| Tool reception | SDS-Plus |
| Article Number | 4933396396 |
| EAN | 4002395234936 |
| Weight (kg) | 2.7 |
| Sound power level (Lwa)(dB(A)) | 103 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 93 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 16 |
| Vibration chiselling uncertainty (m/s²) | 1.5 |
| Vibration drilling (m/s²) | 22 |
| Vibration drilling into concrete [m|s²] | 22 |
| Vibration drilling into concrete uncertainty [m|s²] | 1.5 |
| What's Included | |
|---|---|
|

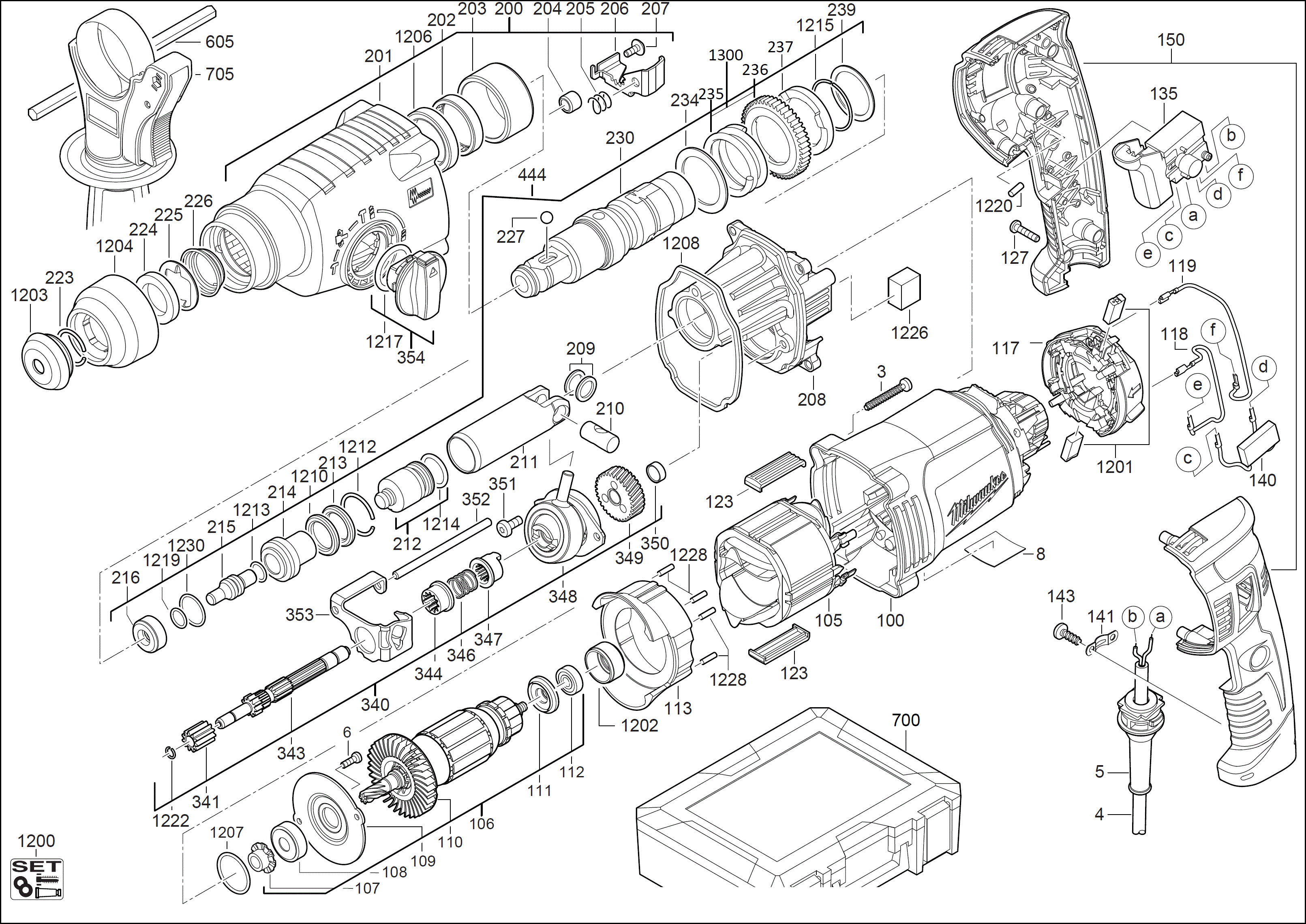

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 1000000003 | Not available for this version | 1 |
| 4931244948 | HOLDING-DOWN DEVICE | 1 |
| 4931256500 | CABLE COLLAR | 1 |
| 4931302112 | CONNECTION CABLE | 1 |
| 4931311062 | CAPACITOR | 1 |
| 4931331760 | NEEDLE BUSH | 1 |
| 4931332524 | HOLDING-DOWN DEVICE | 4 |
| 4931342793 | FAN | 1 |
| 4931342802 | ELECTRIC FIELD | 1 |
| 4931342808 | CENTERING LEDGE | 2 |
| 4931343127 | SUPPORT PLATE | 1 |
| 4931343128 | PRESSURE SPRING | 1 |
| 4931365112 | WASHER | 2 |
| 4931375873 | SPROCKET | 1 |
| 4931375874 | INTERN.GEARED WHEEL | 1 |
| 4931384434 | DEPTH GAUGE | 1 |
| 4931384687 | RUBBER CAP | 1 |
| 4931384919 | SPRING RING | 1 |
| 4931387348 | O-RING | 1 |
| 4931387563 | FELT | 1 |
| 4931392747 | HANDLE | 1 |
| 4931393422 | PROTECTING COVER | 1 |
| 4931396305 | GEAR BOX | 1 |
| 4931396306 | REDUCTION GEAR | 1 |
| 4931396307 | REDUCT. GEAR SHAFT | 1 |
| 4931396308 | REDUCT GEAR WHEEL | 1 |
| 4931396310 | ARMATURE | 1 |
| 4931396314 | BEARING END PLATE | 1 |
| 4931396317 | MOTOR HOUSING | 1 |
| 4931396318 | SET COLLAR | 1 |
| 4931396319 | HANDLE | 1 |
| 4931396325 | BEARING COVER | 1 |
| 4931396329 | COUPLING SLEEVE | 1 |
| 4931396330 | WOBBLE DRIVE | 1 |
| 4931396333 | PERCUSSION BODY | 1 |
| 4931396336 | CYLINDRICAL BOLT | 1 |
| 4931396338 | SPINDLE SLEEVE | 1 |
| 4931396339 | CLUTCH DISC | 1 |
| 4931396342 | STOP WASHER | 1 |
| 4931396343 | SLEEVE | 1 |
| 4931396345 | SNAP DIE | 1 |
| 4931396347 | SWITCH HANDLE | 1 |
| 4931396366 | SWITCH BOARD | 1 |
| 4931396369 | DISTANCE SLEEVE | 1 |
| 4931396373 | BEARING | 1 |
| 4931396374 | SEAL | 1 |
| 4931396375 | GEAR BOX | 1 |
| 4931396376 | SLEEVE | 1 |
| 4931396384 | SLIDING SWITCH | 1 |
| 4931396385 | LOCKING PLATE | 1 |
| 4931396389 | RATING PLATE | 1 |
| 4931396391 | MAINTENANCE SET | 1 |
| 4931396432 | PRESSURE SPRING | 1 |
| 4931396442 | INSULATING DISC | 1 |
| 4931396449 | HOLDING RING | 1 |
| 4931396459 | SEAL RING | 1 |
| 4931396461 | SEAL RING | 1 |
| 4931396462 | SCREW | 1 |
| 4931396529 | WIRE | 1 |
| 4931396530 | WIRE | 1 |
| 4931396532 | RUBBER SLEEVE | 1 |
| 4931396534 | AIR DEFLECTOR RING | 1 |
| 4931396535 | GROOV. BALL BEARING | 1 |
| 4931396536 | slinger sleeve | 1 |
| 4931396541 | CYLINDER | 1 |
| 4931396545 | PRESSURE SPRING | 1 |
| 4931396547 | CARBON BRUSH SET | 1 |
| 4931396548 | THRUST COLLAR | 1 |
| 4931407938 | SPINDLE SLEEVE | 1 |
| 4931415325 | CARRYING CASE | 1 |
| 4931432150 | REPAIR KIT | 1 |
| 4931623220 | SPRING RING | 1 |
| 4931623636 | RING | 1 |
| 4931623961 | SEAL RING | 1 |
| 4931624259 | SEAL RING D 3760 AS 22X35X7 | 1 |
| 4931624260 | SPRING RING | 1 |
| 4931624381 | O-RING N874701 25X2 | 1 |
| 4931624457 | WASHER | 1 |
| 4931624471 | CYLINDER PIN | 1 |
| 4931624476 | SEAL RING | 1 |
| 4931624493 | SEAL RING | 1 |
| 4931624515 | SCREW N874101-1 SHR H-K4X18 T15 | 6 |
| 4931624538 | SCREW | 2 |
| 4931624581 | SCREW | 2 |
| 4931624616 | SCREW | 4 |
| 4931624639 | WASHER | 1 |
| 4931624678 | SCREW | 2 |
| 4931902888 | BALL BEARING | 1 |
| 4931911572 | BALL | 1 |
| 4931933756 | NEEDLE BEARING N874989 HK 0709 | 1 |
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | PH 28 |
| MPN | 4933396396 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | SDS Plus |
| Unit Quantity | 1 |
| Unit Type | Unit |
