| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PFH 26 T |
| MPN | 4933464581 |
| EAN | 4058546225261 |
| Product Category | Power Tools | Drilling and Chipping | SDS Plus |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Blow energy (EPTA)(J) | 2.4 |
| Full load hammer action (bpm) | 0 - 4500 |
| Full load speed (rpm) | 0 - 1500 |
| Max. drilling concrete (mm) | 26 |
| Max. drilling steel (mm) | 13 |
| Max. drilling wood (mm) | 30 |
| Power input (W) | 800 |
| Supplied in | Kitbox |
| Tool reception | SDS-Plus |
| Article Number | 4933464581 |
| EAN | 4058546225261 |
| Weight (kg) | 2.4 |
| Sound power level (Lwa)(dB(A)) | 100.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 89.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 11.9 |
| Vibration chiselling uncertainty (m/s²) | 1.5 |
| Vibration drilling (m/s²) | 13.6 |
| Vibration drilling into concrete [m|s²] | 13.6 |
| Vibration drilling into concrete uncertainty [m|s²] | 1.5 |
| Vibration drilling uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

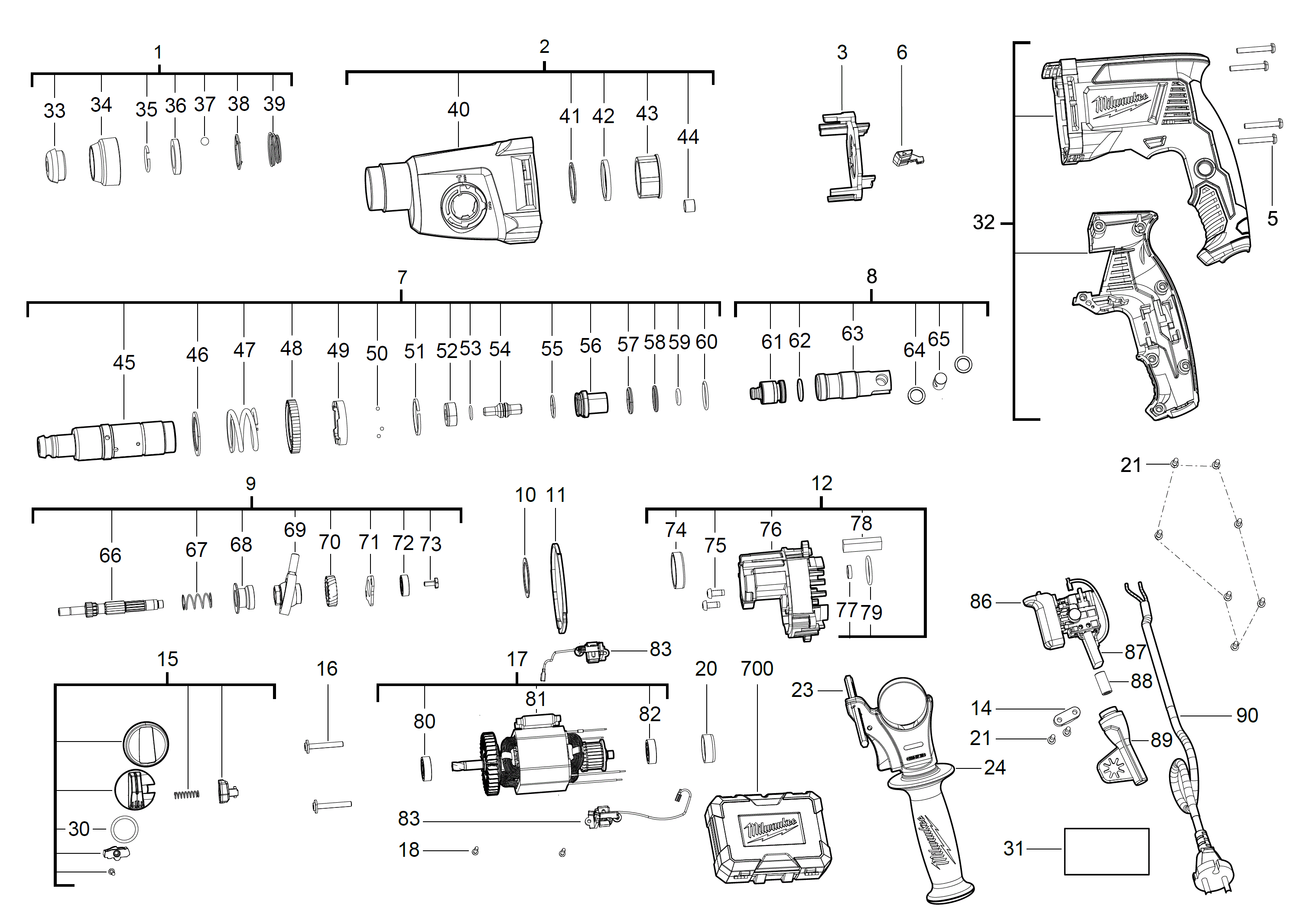

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931436000 | HANDLE | 1 |
| 4931436804 | HOLDING RING | 1 |
| 4931436819 | O-RING | 1 |
| 4931436821 | SCREW | 1 |
| 4931453606 | BALL | 1 |
| 4931453607 | SPRING | 1 |
| 4931454439 | COVER | 1 |
| 4931454440 | DATA PLATE | 1 |
| 4931454441 | FELT | 1 |
| 4931454442 | O-RING | 1 |
| 4931454443 | BUSH | 1 |
| 4931454444 | SEAL | 1 |
| 4931454445 | BUSH | 1 |
| 4931454446 | NEEDLE BEARING | 1 |
| 4931454447 | NEEDLE BEARING | 1 |
| 4931454450 | BOLT | 1 |
| 4931454451 | WASHER | 2 |
| 4931454452 | CYLINDER | 1 |
| 4931454453 | PERCUSSION BODY | 1 |
| 4931454454 | O-RING | 1 |
| 4931454455 | SNAP DIE | 1 |
| 4931454456 | O-RING | 1 |
| 4931454457 | STOP WASHER | 1 |
| 4931454458 | CLUTCH | 1 |
| 4931454459 | GEARWHEEL SET | 1 |
| 4931454460 | COUPLING RING | 1 |
| 4931454461 | SPINDLE | 1 |
| 4931454462 | CAPACITOR | 1 |
| 4931454463 | SWITCH | 1 |
| 4931454466 | MOTOR | 1 |
| 4931454468 | SCREW | 2 |
| 4931454469 | BALL BEARING | 1 |
| 4931454470 | WASHER | 1 |
| 4931454471 | WORM GEAR WHEEL | 1 |
| 4931454474 | COUPLING SLEEVE | 1 |
| 4931454475 | SPRING | 1 |
| 4931454476 | RETAINER | 1 |
| 4931454477 | POWER CORD | 1 |
| 4931454800 | SCREW | 9 |
| 4931465672 | LOCKING SCREW | 2 |
| 4931466354 | CHUCK | 1 |
| 4931466357 | SLIDE | 1 |
| 4931466358 | SPINDLE KIT | 1 |
| 4931466359 | CYLINDER | 1 |
| 4931466361 | GEAR BOX | 1 |
| 4931466362 | TURNING KNOB | 1 |
| 4931466363 | MOTOR | 1 |
| 4931466364 | HOLDER | 1 |
| 4931466366 | O-RING | 1 |
| 4931466368 | HOUSING | 1 |
| 4931466370 | WOBBLE PLATE | 1 |
| 4931466371 | GEAR BOX | 1 |
| 4931466372 | BALL BEARING | 1 |
| 4931466373 | BALL BEARING | 1 |
| 4931466379 | CARRYING CASE | 1 |
| 4931466380 | GEAR BOX HOUSING | 1 |
| 4931466381 | RATING PLATE | 1 |
| 4931466382 | GEAR BOX COVER | 1 |
| 4931466383 | SHAFT | 1 |
| 4931466385 | MAGNET | 1 |
| 4931466721 | CARBON BRUSH | 1 |
| 4931472261 | SLEEVE | 1 |
| 4931495450 | WOBBLE DRIVE | 1 |
| 522172001 | CLAMPING SLEEVE | 1 |
| 561993001 | RUBBER CAP | 1 |
| 561994001 | O-RING | 1 |
| 562595001 | O-RING | 1 |
| 590501001 | CLAMP | 1 |
| 611405001 | BALL | 3 |
| 620448002 | DEPTH GAUGE | 1 |
| 632399001 | PLATE | 1 |
| 633514001 | COMPENSATING WASHER | 1 |
| 633516001 | WASHER | 1 |
| 633517001 | WASHER | 1 |
| 633518001 | WASHER | 1 |
| 633521001 | RETAINING RING | 1 |
| 660570005 | SCREW | 2 |
| 661288001 | SCREW | 4 |
| 672631001 | SPRING RING | 1 |
| 672632001 | CIRCLIP | 1 |
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | PFH 26 T |
| MPN | 4933464581 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | SDS Plus |
| Unit Quantity | 1 |
| Unit Type | Unit |
