| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PDE 16 RP |
| MPN | 4933409206 |
| EAN | 4002395235339 |
| Product Category | Power Tools | Drilling and Chipping | Percussion Drills |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Chuck capacity (mm) | 13 |
| Max. drilling concrete (mm) | 16 |
| Max. drilling masonry (mm) | 20 |
| Max. drilling steel (mm) | 13 |
| Max. drilling wood (mm) | 40 |
| Max. static stalling torque (Nm) | 59 |
| No load speed (rpm) | 0 - 950 |
| Power input (W) | 630 |
| Standard equipment | Additional side handle with metal depth gauge |
| Supplied in | Kitbox |
| Article Number | 4933409206 |
| EAN | 4002395235339 |
| Weight (kg) | 2.0 |
| Sound power level (Lwa)(dB(A)) | 111 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 100 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration drilling (m/s²) | <2.5 |
| Vibration drilling into Metal [m|s²] | 25 |
| Vibration drilling into metal uncertainty [m|s²] | 1.5 |
| Vibration drilling uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

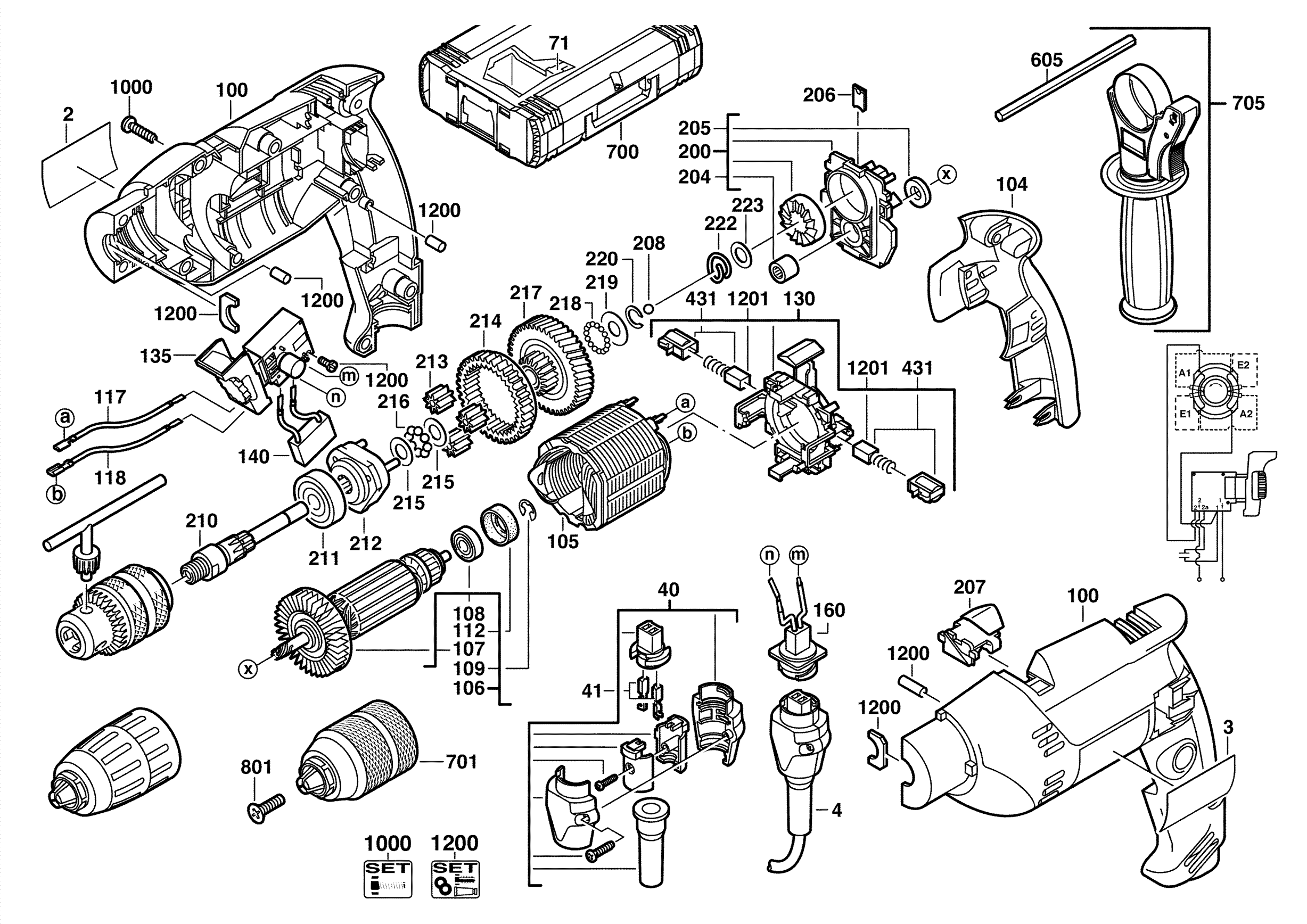

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931219424 | NEEDLE BEARING | 1 |
| 4931253700 | WIRE | 2 |
| 4931276905 | PRESSURE SPRING | 1 |
| 4931306351 | RUBBER SLEEVE | 1 |
| 4931311062 | CAPACITOR | 1 |
| 4931320180 | BOLT SET | 1 |
| 4931330633 | FAN | 1 |
| 4931330999 | BEARING END PLATE | 1 |
| 4931357000 | FELT WASHER | 1 |
| 4931357093 | INTERN.GEARED WHEEL | 1 |
| 4931357098 | ELECTRIC FIELD | 1 |
| 4931357170 | ARMATURE | 1 |
| 4931357172 | PLANET WHEEL | 3 |
| 4931357173 | PINION CAGE | 1 |
| 4931357203 | DRILL SPINDLE | 1 |
| 4931357269 | WASHER | 2 |
| 4931364128 | WASHER | 1 |
| 4931364132 | GEAR | 1 |
| 4931364145 | MAINTENANCE SET | 1 |
| 4931364437 | INSERT | 1 |
| 4931364552 | ADJUSTING PLATE | 1 |
| 4931372529 | SWITCH BOARD | 1 |
| 4931379795 | HANDLE | 1 |
| 4931380143 | INSERT | 1 |
| 4931380430 | BODY | 1 |
| 4931380433 | SET COLLAR | 1 |
| 4931380435 | SLIDING SWITCH | 1 |
| 4931380436 | HOUSING COVER | 1 |
| 4931380758 | REPAIR KIT | 1 |
| 4931380763 | Cable socket p./10 | 1 |
| 4931382311 | NAME PLATE | 1 |
| 4931384434 | DEPTH GAUGE | 1 |
| 4931392563 | CARBON BRUSH SET | 1 |
| 4931392602 | CARBON BRUSH SET | 1 |
| 4931401643 | LOCKING SCREW | 1 |
| 4931409210 | RATING PLATE | 1 |
| 4931621834 | WASHER | 1 |
| 4931623066 | SPRING RING | 1 |
| 4931623449 | BALL | 15 |
| 4931624171 | CONNECTION CABLE IN2 | 1 |
| 4931805413 | BALL | 8 |
| 4931805437 | BALL | 1 |
| 4931886465 | DISC N874237 8,2X14X0,5 | 1 |
| 4931901241 | BALL BEARING | 1 |
| 4931902888 | BALL BEARING | 1 |
| 4932376533 | Keyless Chuck 1.5-13 1/2x20-1pc | 1 |
| 4932378986 | CARRYING CASE WITH FOAM INSERT MET | 1 |
| Auxiliary Handle | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Chuck Size | TBA |
| Chuck Type | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Torque | TBA |
| Model | PDE 16 RP |
| Motor Type | TBA |
| MPN | 4933409206 |
| Number of Batteries | TBA |
| Number of Items in Set | TBA |
| Power | TBA |
| Power Source | TBA |
| Set Includes | TBA |
| Speed | TBA |
| Type | Percussion Drills |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
