| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PDE 13 RX |
| MPN | 4933409200 |
| EAN | 4002395235322 |
| Product Category | Power Tools | Drilling and Chipping | Percussion Drills |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Chuck capacity (mm) | 13 |
| Max. drilling concrete (mm) | 15 |
| Max. drilling masonry (mm) | 18 |
| Max. drilling steel (mm) | 13 |
| Max. drilling wood (mm) | 30 |
| Max. static stalling torque (Nm) | 21 |
| No load speed (rpm) | 0 - 2900 |
| Power input (W) | 630 |
| Standard equipment | Additional side handle with metal depth gauge |
| Supplied in | Kitbox |
| Article Number | 4933409200 |
| EAN | 4002395235322 |
| Weight (kg) | 1.8 |
| Sound power level (Lwa)(dB(A)) | 95 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 84 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration drilling (m/s²) | - |
| Vibration drilling into Metal [m|s²] | 3.5 |
| Vibration drilling into metal uncertainty [m|s²] | 1.5 |
| Vibration drilling uncertainty (m/s²) | - |
| What's Included | |
|---|---|
|

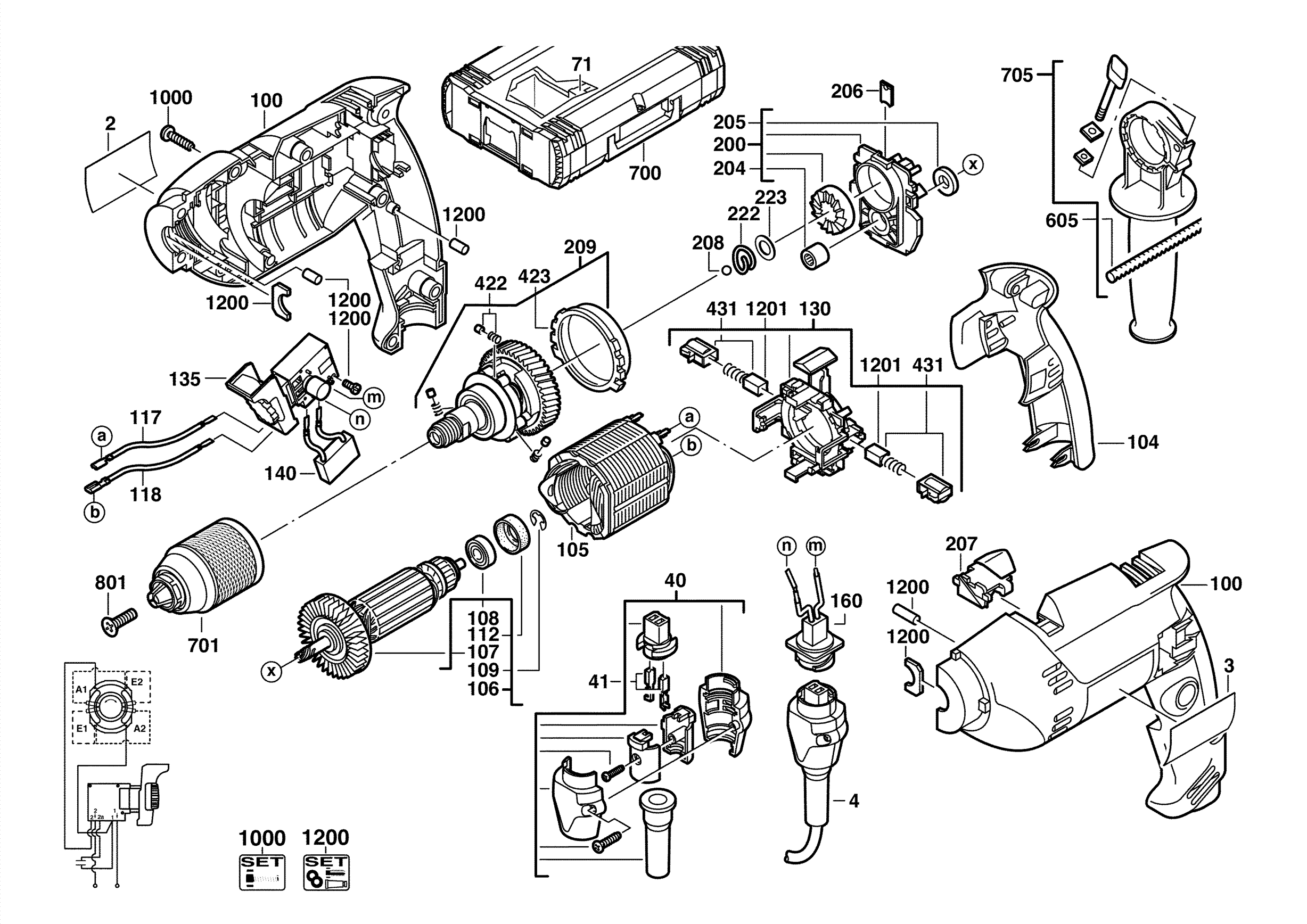

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931219424 | NEEDLE BEARING | 1 |
| 4931253700 | WIRE | 2 |
| 4931254532 | DEPTH GAUGE | 1 |
| 4931276905 | PRESSURE SPRING | 1 |
| 4931306351 | RUBBER SLEEVE | 1 |
| 4931311062 | CAPACITOR | 1 |
| 4931320180 | BOLT SET | 1 |
| 4931330633 | FAN | 1 |
| 4931330999 | BEARING END PLATE | 1 |
| 4931357000 | FELT WASHER | 1 |
| 4931357098 | ELECTRIC FIELD | 1 |
| 4931357170 | ARMATURE | 1 |
| 4931364145 | MAINTENANCE SET | 1 |
| 4931364437 | INSERT | 1 |
| 4931364552 | ADJUSTING PLATE | 1 |
| 4931364990 | SLEEVE | 1 |
| 4931372529 | SWITCH BOARD | 1 |
| 4931372733 | BODY | 1 |
| 4931372794 | DRILL SPINDLE | 1 |
| 4931372975 | SPRING | 3 |
| 4931380143 | INSERT | 1 |
| 4931380433 | SET COLLAR | 1 |
| 4931380435 | SLIDING SWITCH | 1 |
| 4931380436 | HOUSING COVER | 1 |
| 4931380758 | REPAIR KIT | 1 |
| 4931380763 | Cable socket p./10 | 1 |
| 4931382311 | NAME PLATE | 1 |
| 4931392563 | CARBON BRUSH SET | 1 |
| 4931392602 | CARBON BRUSH SET | 1 |
| 4931401643 | LOCKING SCREW | 1 |
| 4931409203 | RATING PLATE | 1 |
| 4931621834 | WASHER | 1 |
| 4931624171 | CONNECTION CABLE IN2 | 1 |
| 4931805437 | BALL | 1 |
| 4931886465 | DISC N874237 8,2X14X0,5 | 1 |
| 4931902888 | BALL BEARING | 1 |
| 4932364149 | HANDLE PDE/DE P1 AEG | 1 |
| 4932371913 | Keyless Chuck Fixtec 1.5-13 1/2x20-1pc | 1 |
| 4932378986 | CARRYING CASE WITH FOAM INSERT MET | 1 |
| Auxiliary Handle | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Chuck Size | TBA |
| Chuck Type | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Torque | TBA |
| Model | PDE 13 RX |
| Motor Type | TBA |
| MPN | 4933409200 |
| Number of Batteries | TBA |
| Number of Items in Set | TBA |
| Power | TBA |
| Power Source | TBA |
| Set Includes | TBA |
| Speed | TBA |
| Type | Percussion Drills |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
Milwaukee Tool is a heavy-duty power tool, hand tool and accessories manufacturer focused on professional trades, known for cordless innovation and jobsite solutions.
Techtronic Industries (UK) Limited, Suite A, Second Floor, Parkway, Marlow, Bucks, SL7 1YL, England
Cordless and corded power tools, hand tools, measuring/instrumentation, accessories (blades, bits, fixings), storage systems (e.g., modular storage), and PPE for professional users.
