| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PD2E 24 RS |
| MPN | 4933380462 |
| EAN | 4002395227273 |
| Product Category | Power Tools | Drilling and Chipping | Percussion Drills |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Chuck capacity (mm) | 13 |
| Max. drilling concrete (mm) | 20 |
| Max. drilling masonry (mm) | 24 |
| Max. drilling steel (mm) | 16 |
| Max. drilling wood (mm) | 40 |
| Max. static stalling torque (Nm) | 54 |
| No load speed gear 1 (rpm) | 0 - 1450 |
| No load speed gear 2 (rpm) | 0 - 3400 |
| Power input (W) | 1010 |
| Standard equipment | Additional handle with metal depth gauge |
| Supplied in | Kitbox |
| Article Number | 4933380462 |
| EAN | 4002395227273 |
| Weight (kg) | 3.1 |
| Sound power level (Lwa)(dB(A)) | 112 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 101 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration drilling (m/s²) | 21.9 |
| Vibration drilling into Metal [m|s²] | 4 |
| Vibration drilling into metal uncertainty [m|s²] | 1.5 |
| Vibration drilling uncertainty (m/s²) | 3.3 |
| What's Included | |
|---|---|
|

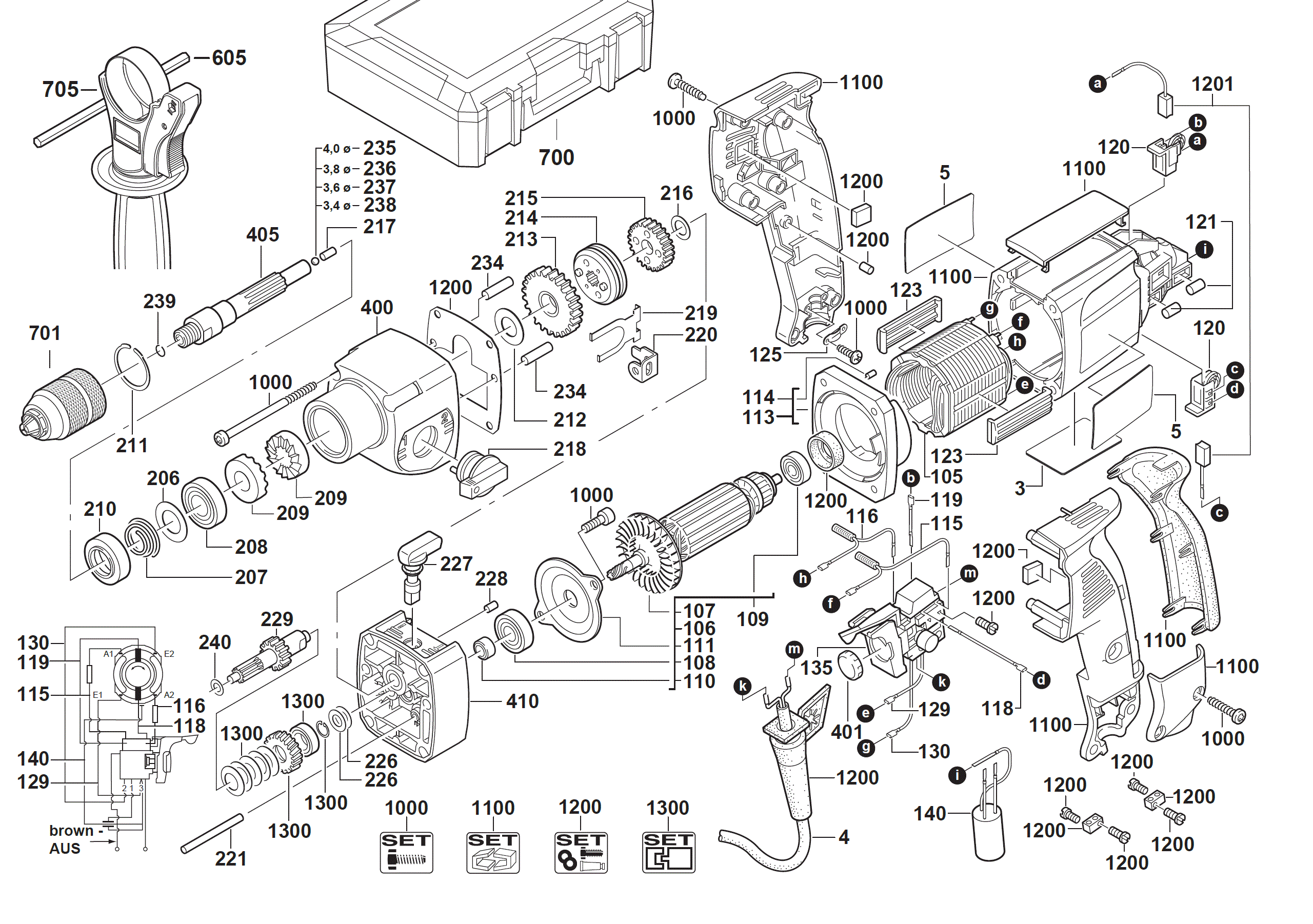

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931256500 | CABLE COLLAR | 1 |
| 4931267406 | PRESSURE SPRING | 1 |
| 4931267522 | SEAL RING | 1 |
| 4931267558 | DRILL SPINDLE WHEEL | 1 |
| 4931267571 | PERCUSSION SLEEVE | 2 |
| 4931267576 | SWITCH LEVER | 1 |
| 4931267585 | BEARING COVER | 1 |
| 4931302074 | RING SPRING | 1 |
| 4931302748 | SLEEVE | 1 |
| 4931307039 | DRILL SPINDLE | 1 |
| 4931307118 | RETAINING SPRING | 1 |
| 4931307130 | SHIFT RING COMPL. | 1 |
| 4931311062 | CAPACITOR | 1 |
| 4931326971 | CENTERING LEDGE | 2 |
| 4931332144 | ELECTRIC FIELD | 1 |
| 4931332524 | HOLDING-DOWN DEVICE | 4 |
| 4931339525 | SWITCH LEVER | 1 |
| 4931339526 | SWITCH LEVER | 1 |
| 4931342793 | FAN | 1 |
| 4931342887 | REDUCTION GEAR | 1 |
| 4931344698 | DRILL SPINDLE WHEEL | 1 |
| 4931347472 | MAINTENANCE SET | 1 |
| 4931347492 | COUPLING SET | 1 |
| 4931356599 | SET WHEEL | 1 |
| 4931364658 | ARMATURE | 1 |
| 4931364668 | BOLT SET | 1 |
| 4931368037 | GROOVED BALL BEAR. | 1 |
| 4931380469 | RATING PLATE | 1 |
| 4931380470 | AIR DEFLECTOR RING | 1 |
| 4931380475 | BEARING END PLATE | 1 |
| 4931380476 | GEAR BOX | 1 |
| 4931380477 | BODY | 1 |
| 4931382268 | BRUSH HOLDER | 2 |
| 4931382393 | SWITCH BOARD | 1 |
| 4931384434 | DEPTH GAUGE | 1 |
| 4931392596 | CARBON BRUSH SET | 1 |
| 4931415325 | CARRYING CASE | 1 |
| 4931455677 | RATING PLATE | 1 |
| 4931621647 | DISC | 1 |
| 4931621679 | DISC | 1 |
| 4931621715 | DISC | 1 |
| 4931621731 | PIN | 1 |
| 4931621732 | PIN | 2 |
| 4931621735 | BALL | 1 |
| 4931621736 | BALL | 1 |
| 4931621737 | BALL | 1 |
| 4931621770 | PIN | 1 |
| 4931621809 | DISC | 1 |
| 4931622896 | CONNECTION CABLE | 1 |
| 4931623123 | ROLL | 4 |
| 4931623125 | WIRE | 1 |
| 4931623126 | WIRE | 1 |
| 4931623127 | WIRE | 1 |
| 4931623164 | WASHER | 2 |
| 4931623196 | WIRE | 1 |
| 4931623352 | WIRE | 1 |
| 4931805390 | BALL | 1 |
| 4931805526 | PIN | 1 |
| 4931890311 | LOCKING RING | 1 |
| 4931891058 | BALL BEARING | 1 |
| 4931901253 | BALL BEARING | 1 |
| 4932364266 | Keyless Chuck 1.0-13 1/2x20-1pc | 1 |
| 4932373725 | HANDLE PHE P1 A/M | 1 |
| Auxiliary Handle | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Chuck Size | TBA |
| Chuck Type | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Torque | TBA |
| Model | PD2E 24 RS |
| Motor Type | TBA |
| MPN | 4933380462 |
| Number of Batteries | TBA |
| Number of Items in Set | TBA |
| Power | TBA |
| Power Source | TBA |
| Set Includes | TBA |
| Speed | TBA |
| Type | Percussion Drills |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
