| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | PCE 3/K |
| MPN | 4933384300 |
| EAN | 4002395232215 |
| Product Category | Power Tools | Drilling and Chipping | SDS Plus |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Blow energy (EPTA)(J) | 3.6 |
| Full load hammer action (bpm) | 0 - 3650 |
| Power input (W) | 720 |
| Standard equipment | Additional handle |
| Supplied in | Kitbox |
| Tool reception | SDS-Plus |
| Article Number | 4933384300 |
| EAN | 4002395232215 |
| Weight (kg) | 3.7 |
| Sound power level (Lwa)(dB(A)) | 98 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 87 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 11 |
| Vibration chiselling uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

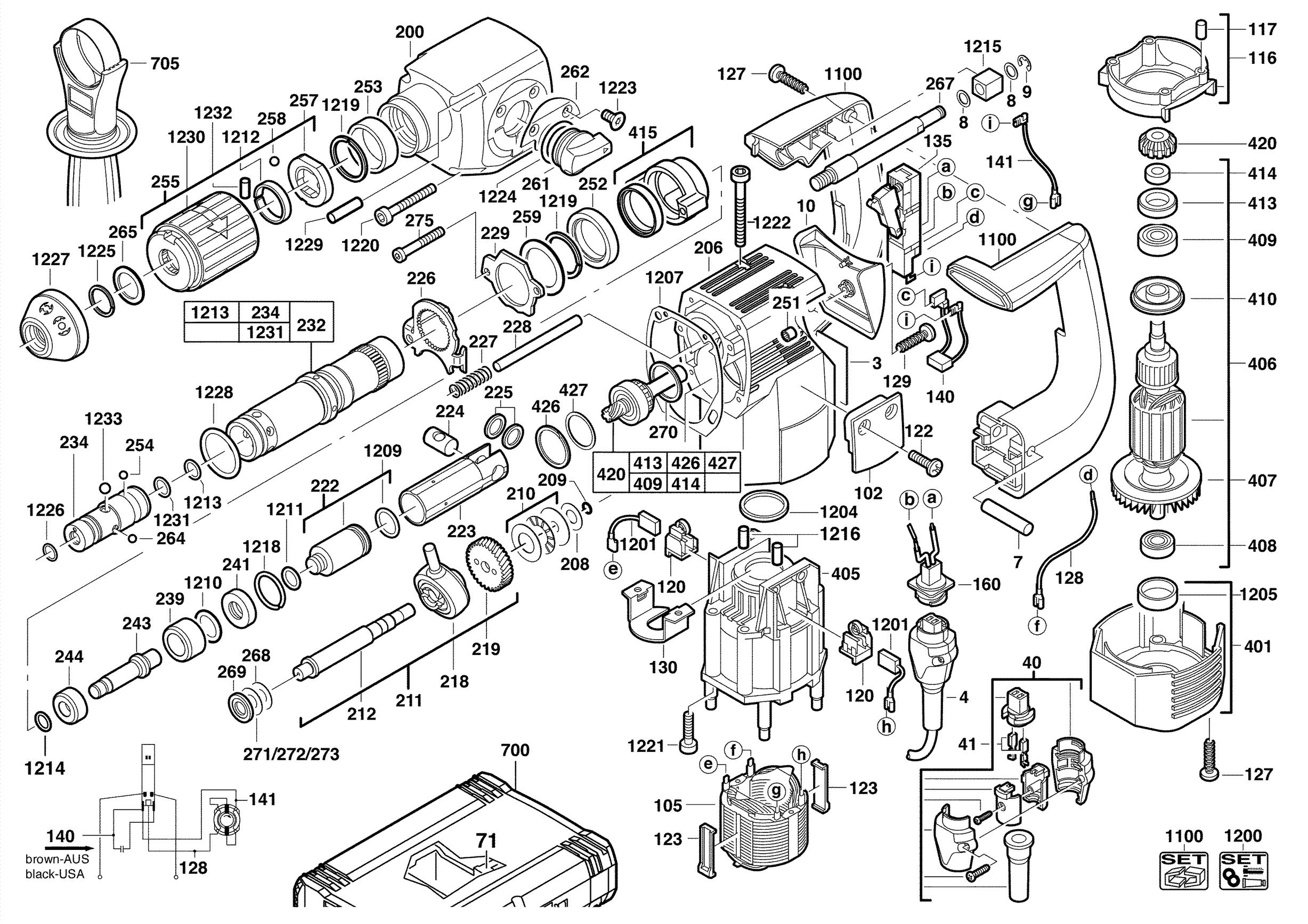

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931219424 | NEEDLE BEARING | 2 |
| 4931307423 | HOLDING-DOWN DEVICE | 1 |
| 4931321064 | SPRING | 1 |
| 4931331549 | HOLDING-DOWN DEVICE | 2 |
| 4931331623 | CYLINDRICAL BOLT | 1 |
| 4931331787 | LATCH PLATE | 1 |
| 4931332524 | HOLDING-DOWN DEVICE | 4 |
| 4931341740 | GROOVED BALL BEAR. | 1 |
| 4931342793 | FAN | 1 |
| 4931342808 | CENTERING LEDGE | 2 |
| 4931353230 | AIR DEFLECTOR RING | 1 |
| 4931353238 | SPACER | 1 |
| 4931353260 | INSULATING DISC | 1 |
| 4931356522 | SEAL RING | 1 |
| 4931356869 | BEARING COVER | 1 |
| 4931360041 | THRUST BEARING | 1 |
| 4931360377 | GEAR BOX COVER | 1 |
| 4931360518 | PROTECTIVE CAP | 2 |
| 4931360732 | MOTOR COVER | 1 |
| 4931360781 | RUBBER SLEEVE | 1 |
| 4931364437 | INSERT | 1 |
| 4931369477 | CARBON BRUSH SET | 1 |
| 4931379098 | PINION SHAFT | 1 |
| 4931379108 | LATCH PLATE | 1 |
| 4931379109 | SCREW | 2 |
| 4931379401 | INSERT | 1 |
| 4931379420 | SPACER | 1 |
| 4931379705 | SEAL RING | 1 |
| 4931380758 | REPAIR KIT | 1 |
| 4931380763 | Cable socket p./10 | 1 |
| 4931382268 | BRUSH HOLDER | 2 |
| 4931382948 | GEAR BOX | 1 |
| 4931384279 | CYLINDER | 1 |
| 4931384281 | CORE LIFTER RING | 1 |
| 4931384282 | SLEEVE | 1 |
| 4931384283 | STOP WASHER | 1 |
| 4931384284 | SNAP DIE | 1 |
| 4931384286 | HOLDING RING | 1 |
| 4931384287 | REDUCT. GEAR SHAFT | 1 |
| 4931384292 | SWITCH BOARD | 1 |
| 4931384293 | PRESSURE SPRING | 1 |
| 4931384294 | ADAPTER | 1 |
| 4931384295 | SET SLEEVE | 1 |
| 4931384299 | SET SLEEVE | 1 |
| 4931384311 | MAINTENANCE SET | 1 |
| 4931384312 | GEAR BOX | 1 |
| 4931384313 | REDUCT. GEAR SHAFT | 1 |
| 4931384314 | PERCUSSION BODY | 1 |
| 4931384316 | LOCKING PIECE | 1 |
| 4931384324 | HANDLE COMPL. | 1 |
| 4931384337 | MOTOR HOUSING | 1 |
| 4931384557 | BUSHING | 1 |
| 4931384560 | REPAIR KIT | 1 |
| 4931384856 | JUNK RING | 1 |
| 4931384925 | RUBBER CAP | 1 |
| 4931392161 | JUMPER RING | 1 |
| 4931392169 | REDUCTION GEAR | 1 |
| 4931392170 | SPINDLE | 1 |
| 4931392501 | BOLT | 1 |
| 4931392502 | DAMPING ELEMENT | 1 |
| 4931392504 | SEAL | 1 |
| 4931392505 | GREASE RETAIN.PLUG | 1 |
| 4931392506 | SWITCH HANDLE | 1 |
| 4931392511 | ELECTRIC FIELD | 1 |
| 4931392515 | ARMATURE | 1 |
| 4931392528 | HOLDING DISC | 1 |
| 4931392531 | HANDLE | 1 |
| 4931392790 | RATING PLATE | 1 |
| 4931400589 | WASHER | 1 |
| 4931409507 | RING | 1 |
| 4931616614 | LOCKING RING | 1 |
| 4931621834 | WASHER | 1 |
| 4931622153 | SCREW | 1 |
| 4931622564 | DISC N874237 A16,1X26X1 | 1 |
| 4931622874 | SPRING RING | 1 |
| 4931623081 | PIN | 1 |
| 4931623094 | WASHER | 2 |
| 4931623124 | O-RING | 1 |
| 4931623199 | WASHER | 1 |
| 4931623293 | O-RING | 1 |
| 4931623456 | GROOVED DOWEL PIN | 1 |
| 4931623519 | SCREW | 2 |
| 4931623520 | SCREW | 4 |
| 4931623521 | SCREW | 4 |
| 4931623541 | WIRE | 1 |
| 4931623636 | RING | 1 |
| 4931623637 | WASHER | 1 |
| 4931624096 | DISC N874237 | 1 |
| 4931624097 | DISC N874237 | 1 |
| 4931624098 | DISC N874237 | 1 |
| 4931624101 | BALL BEARING | 1 |
| 4931624171 | CONNECTION CABLE IN2 | 1 |
| 4931624225 | SEAL RING N874701 12X1,5 | 1 |
| 4931624226 | SEAL RING | 1 |
| 4931624227 | SEAL RING | 1 |
| 4931624269 | WIRE | 1 |
| 4931624270 | CAPACITOR | 1 |
| 4931624280 | DISC | 1 |
| 4931624282 | SCREW | 2 |
| 4931624303 | BALL | 2 |
| 4931624322 | SEAL RING N874701 12X1,5 | 1 |
| 4931624492 | SEAL RING | 1 |
| 4931624493 | SEAL RING | 1 |
| 4931624515 | SCREW N874101-1 SHR H-K4X18 T15 | 7 |
| 4931624518 | SCREW | 4 |
| 4931805413 | BALL | 2 |
| 4931805437 | BALL | 6 |
| 4931941082 | O-RING N874701 5X1 | 1 |
| 4931945764 | SPRING RING | 2 |
| 4932378986 | CARRYING CASE WITH FOAM INSERT MET | 1 |
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | PCE 3/K |
| MPN | 4933384300 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | SDS Plus |
| Unit Quantity | 1 |
| Unit Type | Unit |
