Milwaukee MXF WBT90-122 MX FUEL 900 Mm Walk Behind Power Trowel 4933493604
SKU: SKU250626202045003
EAN: 4058546484750
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | MXF WBT90 |
| MPN | 4933493604 |
| EAN | 4058546484750 |
| Product Category | Power Tools | Concreting | Concrete Vibrators |
| Description | |
|---|---|
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| ⌀ (mm) | 914 |
| Height (mm) | 1028 |
| Kit included | 2 x MXF HD812 Battery packs, MXF SC Charger, No kitbox or bag supplied |
| Length (mm) | 1600 |
| Motor speed (rpm) | 1600 - 3600 |
| No load speed (rpm) | 60 - 130 |
| Standard equipment | 1x set of combination blades (4pcs) |
| Supplied in | No kitbox or bag supplied |
| Article Number | 4933493604 |
| EAN 240V | 4058546484750 |
| Battery pack capacity (Ah) | 12.0 |
| Battery type | Li-ion |
| Charger included | MXF SC |
| Charger supplied | 60 min |
| Charging time (min) | 60 |
| No. of batteries supplied | 2 |
| Weight with battery pack (EPTA) (kg) | 80 (MXF HD812) |
| Sound power level (Lwa)(dB(A)) | 95.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 82.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 0.37 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

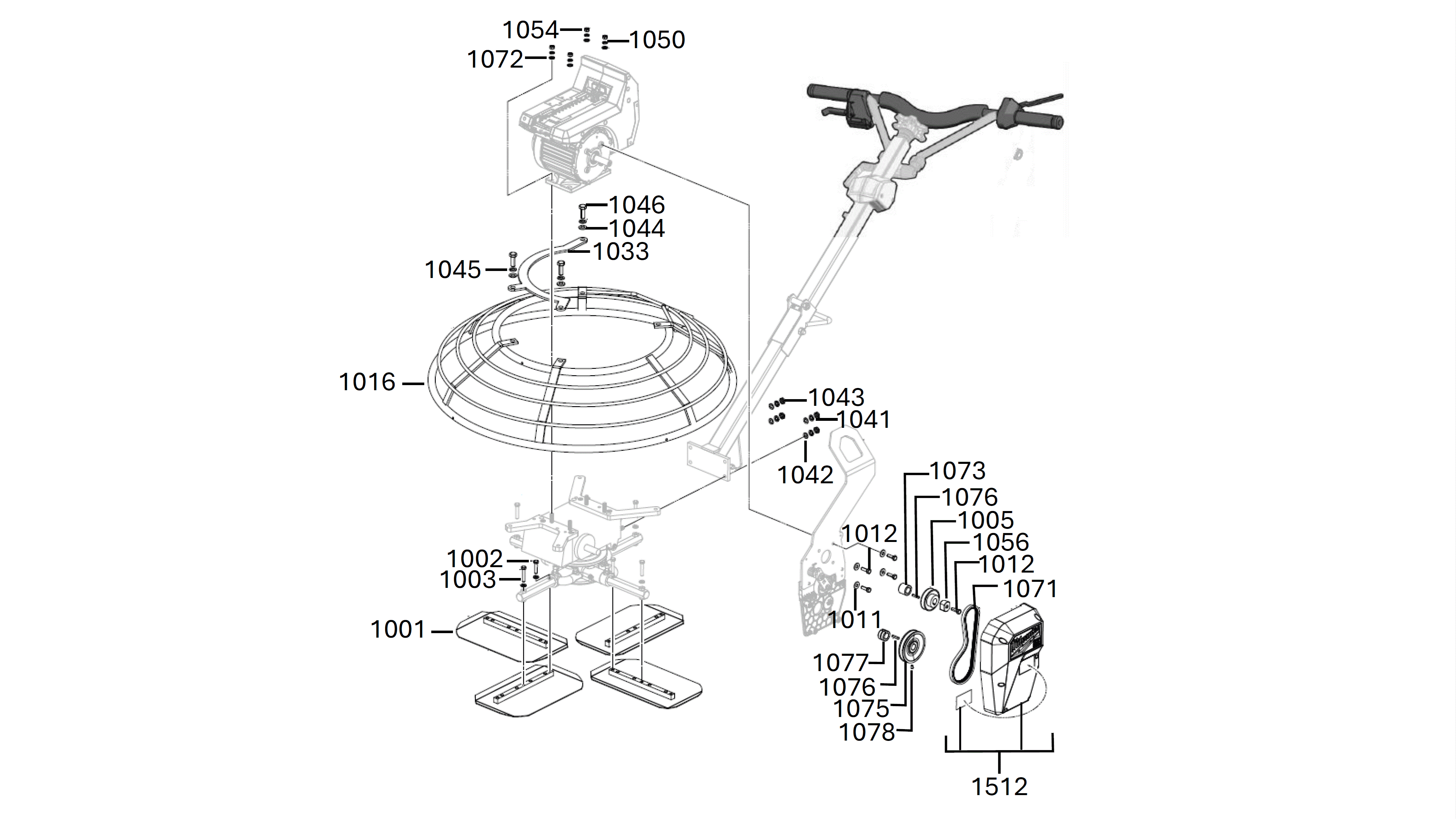

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931494491 | WASHER | 5 |
| 4931494539 | HANDLE SET | 2 |
| 4931496713 | INSERT CARD | 1 |
| 4931507275 | PULLEY | 1 |
| 4931507276 | WASHER | 4 |
| 4931507277 | BOLT | 5 |
| 4931507278 | WASHER | 4 |
| 4931507279 | WASHER | 4 |
| 4931507280 | NUT | 4 |
| 4931507281 | WASHER | 4 |
| 4931507282 | NUT | 8 |
| 4931507283 | SPACER | 1 |
| 4931507284 | SCREW | 1 |
| 4931507289 | KEY | 1 |
| 4931507290 | GUARD | 1 |
| 4931507291 | SCREW | 4 |
| 4931507292 | MOUNTING BRACKET | 1 |
| 4931507293 | SCREW | 4 |
| 4931507294 | HOLDER | 1 |
| 4931507295 | COVER | 1 |
| 4931507296 | SCREW | 2 |
| 4931507297 | SCREW | 4 |
| 4931507298 | SUPPORT BRACKET | 1 |
| 4931507299 | COVER | 1 |
| 4931507300 | COVER | 1 |
| 4931507301 | SCREW | 3 |
| 4931507302 | MOTOR | 1 |
| 4931507303 | ELECTRONIC | 1 |
| 4931507304 | INSERT CARD | 1 |
| 4931507305 | BATTERY BOX | 1 |
| 4931507306 | HOUSING | 1 |
| 4931507307 | GUIDE RAIL | 1 |
| 4931507308 | CONTROL PANEL KIT | 1 |
| 4931507309 | HOUSING | 1 |
| 4931507310 | COVER | 1 |
| 4931507311 | CABLE JOINT | 2 |
| 4931507312 | WIRE | 1 |
| 4931507313 | CROSS BRACKET | 1 |
| 4931507314 | SCREW | 2 |
| 4931507315 | HANDLE BAR | 1 |
| 4931507316 | KNOB | 1 |
| 4931507317 | WIRE | 2 |
| 4931507318 | CLIP | 2 |
| 4931507319 | SWITCH LEVER | 1 |
| 4931507320 | SCREW | 2 |
| 4931507321 | NUT | 2 |
| 4931507322 | SERVICE-KIT | 1 |
| 4931507323 | LEVER | 1 |
| 4931507324 | SWITCH | 1 |
| 4931507325 | SWITCH KIT | 1 |
| 4931507326 | SCREW | 3 |
| 4931507327 | SCREW | 1 |
| 4931507329 | PIN | 1 |
| 4931507334 | WASHER | 1 |
| 4931507335 | NUT | 9 |
| 4931507360 | SHAFT | 2 |
| 4931507384 | SPRING | 1 |
| 4931507385 | SPACER | 1 |
| 4931507386 | SCREW | 2 |
| 4931507387 | WASHER | 1 |
| 4931507388 | NUT | 1 |
| 4931507389 | PLATE | 1 |
| 4931507390 | SHAFT | 1 |
| 4931507391 | WASHER | 1 |
| 4931507392 | SCREW | 1 |
| 4931507393 | RATING PLATE | 1 |
| 4931507394 | PULLEY | 1 |
| 4931507397 | SCREW | 4 |
| 4931507398 | SCREW | 4 |
| 4931507399 | PULLEY | 1 |
| 4931507400 | RING | 1 |
| 4931507401 | GUARD | 1 |
| 4931507402 | WASHER | 4 |
| 4931507403 | WASHER | 4 |
| 4931507404 | SCREW | 4 |
| 4931507405 | BELT | 1 |
| 4931507406 | SPACER | 1 |
| 4931507407 | SPACER | 1 |
| 4931507408 | NUT | 2 |
| 4931507409 | BUSHING | 1 |
| 4931507410 | SPRING | 1 |
| 4931507411 | PULLEY | 1 |
| 4931507412 | BRACKET | 1 |
| 4931507413 | CROSS BRACKET | 1 |
| 4931507414 | KNOB | 1 |
| 4931507415 | TUBE | 1 |
| 4931507416 | INTERMEDIATE LEVER | 1 |
| 4931507417 | PIN | 1 |
| 4931507418 | RETAINING RING | 2 |
| 4931507419 | GEAR BOX KIT | 1 |
| 4931507420 | SCREW | 1 |
| 4931507421 | PLATE | 1 |
| 4931507422 | STUD | 4 |
| 4931507423 | KEY | 1 |
| 4931507424 | GUIDE RAIL | 1 |
| 4931507425 | GUIDE RAIL | 1 |
| 4931507426 | SCREW | 4 |
| 4931507427 | STUD | 4 |
| 4931507428 | INTERMEDIATE LEVER | 4 |
| 4931507429 | PLATE | 1 |
| 4931507430 | SCREW | 4 |
| 4931507431 | LEVER | 4 |
| 4931507432 | SCREW | 4 |
| 4931507433 | SCREW | 4 |
| 4931507434 | WASHER | 4 |
| 4931507435 | HOLDING BRACKET | 4 |
| 4931507436 | CAP | 4 |
| 4931507437 | SCREW | 4 |
| 4931507438 | O-RING | 6 |
| 4931507439 | PLATE | 1 |
| 4931507440 | SHAFT | 1 |
| 4931507441 | GEAR | 1 |
| 4931507442 | SCREW | 1 |
| 4931507443 | KEY | 1 |
| 4931507444 | WASHER | 1 |
| 4931507445 | SHAFT | 1 |
| 4931507446 | GEAR BOX HOUSING | 1 |
| 4931507447 | CAP | 1 |
| 4931507448 | FLANGE | 1 |
| 4931507449 | SCREW | 16 |
| 4931507450 | SEAL | 2 |
| 4931507451 | BEARING | 1 |
| 4931507452 | VALVE | 1 |
| 4931507453 | PLUG | 1 |
| 4931507454 | PLUG | 2 |
| 4931507455 | GASKET | 2 |
| 4931507456 | GASKET | 2 |
| 4931507457 | GASKET | 1 |
| 4931507458 | GASKET | 1 |
| 4931507459 | FRAME | 1 |
| 4931507460 | GUARD | 1 |
| 4932498920 | MXFWBT90 900mm Trowel Blades 4 pcs Set | 1 |
Specifications
| Application | TBA |
| Assembly Required | TBA |
| Battery Included | Yes |
| Battery Life | TBA |
| Battery Type | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Connectors | TBA |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Items Included | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Maximum Power | TBA |
| Model | MXF WBT90 |
| MPN | 4933493604 |
| Noise Level | TBA |
| Power Rating | TBA |
| Power Source | TBA |
| Style | TBA |
| Tank Capacity | TBA |
| Type | Concrete Vibrators |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
| Year Manufactured | TBA |
