| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | MDP 41 |
| MPN | 4933451014 |
| EAN | 4002395136674 |
| Product Category | Power Tools | Drilling and Chipping | Mag Press |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Magn. holding power (at drill point pressure) (N) | 8890 |
| Max. depth broaching capacity (mm) | 50 |
| Max. diameter broaching capacity (mm) | 41 |
| Max. drilling solid bit (mm) | 13 |
| No load speed (rpm) | 475 / 730 |
| Power input (W) | 1200 |
| Standard equipment | Spray can, 13 mm chuck with Weldon adaptor, chuck key, ejector pin, safety strap |
| Supplied in | Kitbox |
| Article Number | 4933451014 |
| EAN | 4002395136674 |
| Weight (kg) | 14.0 |
| Sound power level (Lwa)(dB(A)) | 106 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 95 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 2.17 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

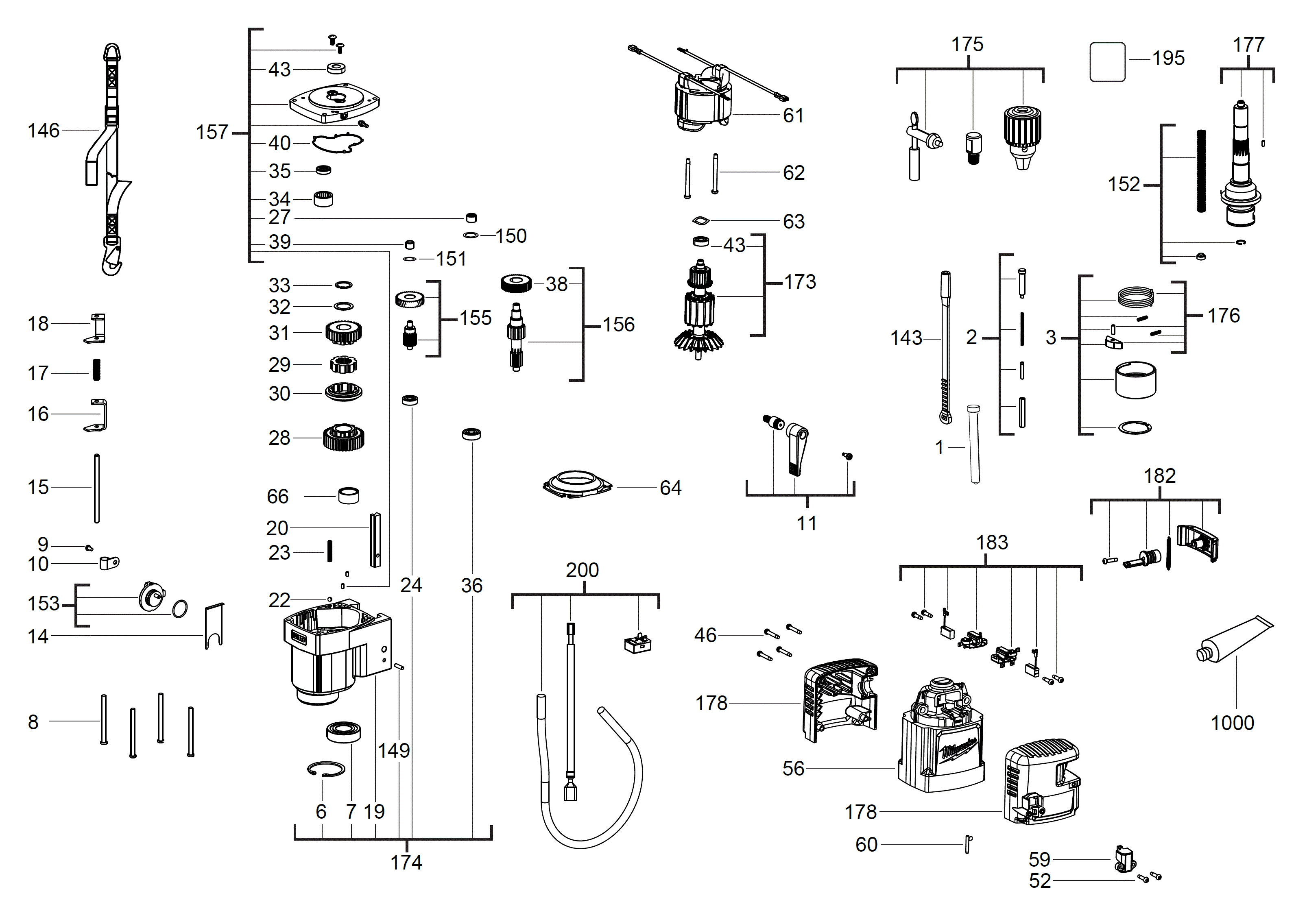

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 02040640 | BALL BEARING | 1 |
| 02502400 | NEEDLE BEARING | 1 |
| 48100130 | MAG. DRILL PIPE ADAPT.-1PC | 1 |
| 49085270 | GREASE | 1 |
| 4931435627 | SCREW | 3 |
| 4931436769 | SCREW | 4 |
| 4931453092 | CHUCK SHROUD | 1 |
| 4931453093 | RETAINING RING | 1 |
| 4931453094 | BALL BEARING | 1 |
| 4931453097 | RETAINING PLATE | 1 |
| 4931453098 | LOCKING ROD | 1 |
| 4931453099 | CABLE CLAMP | 1 |
| 4931453100 | SCREW | 1 |
| 4931453101 | GUIDE BOLT | 1 |
| 4931453102 | HOLDING BRACKET | 1 |
| 4931453103 | SPRING | 1 |
| 4931453104 | HOLDING BRACKET | 1 |
| 4931453105 | BALL BEARING | 1 |
| 4931453106 | SPRING | 1 |
| 4931453107 | OUTPUT SHAFT KIT | 1 |
| 4931453109 | COUPLING | 1 |
| 4931453110 | HUB | 1 |
| 4931453112 | RETAINING RING | 1 |
| 4931453113 | NEEDLE BEARING | 1 |
| 4931453114 | SEAL | 1 |
| 4931453115 | SEAL | 1 |
| 4931453124 | SCREW | 8 |
| 4931453127 | SCREW | 4 |
| 4931453129 | BIT GUIDE | 1 |
| 4931453130 | BUSHING | 2 |
| 4931453131 | COMPENSATION PLATE | 1 |
| 4931453132 | SCREW | 2 |
| 4931453133 | HANDLE | 1 |
| 4931453136 | SPINDLE LOCK | 1 |
| 4931453137 | OPERATING HANDLE | 3 |
| 4931453138 | SCREW | 4 |
| 4931453140 | TOOTH RACK | 1 |
| 4931453141 | SCREW | 3 |
| 4931453142 | COVER | 1 |
| 4931453143 | MAGNETIC FOOT | 1 |
| 4931453144 | RIVET | 1 |
| 4931453146 | MAGNET | 3 |
| 4931453147 | THREADED SLEEVE | 4 |
| 4931453149 | CYLINDER PIN | 1 |
| 4931453150 | MAGNET | 3 |
| 4931453151 | LEDGE | 1 |
| 4931453152 | BUSHING | 2 |
| 4931453153 | SHAFT | 1 |
| 4931453154 | GEAR | 1 |
| 4931453155 | SWITCH | 1 |
| 4931453156 | MAGNET.DISC FASTEN. | 1 |
| 4931453157 | GEAR | 1 |
| 4931453158 | WASHER | 1 |
| 4931453160 | BUSHING | 1 |
| 4931453162 | RUBBER RING | 1 |
| 4931453163 | SHAFT | 1 |
| 4931453164 | RETAINING RING | 1 |
| 4931453165 | FASTENING BOLT | 2 |
| 4931453167 | SCREW | 6 |
| 4931453168 | SWITCH COVER | 1 |
| 4931453169 | LEDGE | 2 |
| 4931453170 | PIN | 2 |
| 4931453171 | SCREW | 2 |
| 4931453172 | CYLINDER PIN | 1 |
| 4931453173 | HOLDING DEVICE | 1 |
| 4931453175 | GEAR BOX KIT | 1 |
| 4931453177 | FEED SPINDLE | 1 |
| 4931453179 | CYLINDER PIN | 1 |
| 4931453184 | TURNING KNOB | 1 |
| 4931453185 | KIT | 1 |
| 4931453191 | EJECTOR | 1 |
| 4931453192 | BUSHING | 1 |
| 4931453193 | KEY HOLDER | 1 |
| 4931453194 | SAFETY STRAP | 1 |
| 4931453196 | Adjust. washer set | 1 |
| 4931453197 | KIT | 1 |
| 4931453396 | GUIDE BOLT | 1 |
| 4931453397 | GUIDE BAR | 1 |
| 4931453398 | SCREW | 4 |
| 4931453399 | GEAR BOX | 1 |
| 4931453400 | WORM GEAR WHEEL | 1 |
| 4931453401 | WORM GEAR WHEEL | 1 |
| 4931453402 | BALL BEARING | 1 |
| 4931453403 | WORM GEAR WHEEL | 1 |
| 4931453404 | NEEDLE BEARING | 1 |
| 4931453405 | SCREW | 3 |
| 4931453406 | MOTOR HOUSING | 1 |
| 4931453407 | CLAMP | 2 |
| 4931453408 | PIN | 1 |
| 4931453409 | ELECTRIC FIELD | 1 |
| 4931453410 | SCREW | 2 |
| 4931453411 | WASHER | 1 |
| 4931453412 | AIR DEFLECTOR RING | 1 |
| 4931453413 | SCREW | 2 |
| 4931453414 | ELECTRIC ELEMENT | 1 |
| 4931453415 | CONNECTOR | 1 |
| 4931453417 | CONNECTION CABLE | 1 |
| 4931453418 | CABLE CLAMP | 1 |
| 4931453419 | ELECTRONIC | 1 |
| 4931453420 | COVER | 1 |
| 4931453421 | GEAR BOX HOUSING | 1 |
| 4931453422 | KNOB | 1 |
| 4931453423 | TANK | 1 |
| 4931453424 | WASHER | 1 |
| 4931453425 | WASHER | 1 |
| 4931453426 | PINION | 1 |
| 4931453427 | PINION | 1 |
| 4931453428 | GEAR BOX COVER | 1 |
| 4931453429 | MAGNET | 1 |
| 4931453430 | MOTOR ASSEMBLY | 1 |
| 4931453431 | GEAR KIT | 1 |
| 4931453432 | HOUSING | 1 |
| 4931453433 | SWITCH KIT | 1 |
| 4931453434 | CARBON BRUSH SET | 1 |
| 4931453435 | HOUSING | 1 |
| 4931453436 | RATING PLATE | 1 |
| 4931453437 | FOOT | 1 |
| 4931453438 | WIRE | 1 |
| 4931453439 | MAG BASE PLATE | 2 |
| 4931453440 | CARRYING CASE | 1 |
| 4931456260 | CLAMPING LEVER | 1 |
| 49590020 | CHUCK W KEY AND ADAPT.-1PC | 1 |
| 660024030 | SCREW | 4 |
| 661319001 | SCREW | 4 |
| 680335077 | WASHER 24x17,8x0,8 | 1 |
| 681337001 | BALL BEARING | 2 |
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | MDP 41 |
| MPN | 4933451014 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | Mag Press |
| Unit Quantity | 1 |
| Unit Type | Unit |
