Milwaukee M18 ONEHCCT60-202C FORCE LOGIC Hydraulic 60 Kn Cable Crimper 493347...
SKU: SKU250626195259002
EAN: 4058546374785
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | M18 ONEHCCT60 |
| MPN | 4933479684 |
| EAN | 4058546374785 |
| Product Category | Power Tools | Force Logic | Cable Crimping |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Crimping force (kN) | 60 |
| Crimping range (mm²) | 6 - 300 |
| Crimping time (s) | 5 |
| Crimps per battery | >150 on a 50 mm² copper connector |
| Kit included | 2 x M18 B2 Battery packs, M12-18 C Charger, Kitbox |
| Supplied in | Kitbox |
| Article Number | 4933479684 |
| EAN | 4058546374785 |
| Battery pack capacity (Ah) | 2.0 |
| Battery type | Li-ion |
| Charger included | M12-18 C |
| Charger supplied | 40 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 3.8 (M18 B2) |
| Sound power level (Lwa)(dB(A)) | 83.4 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 72.4 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 0.7 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

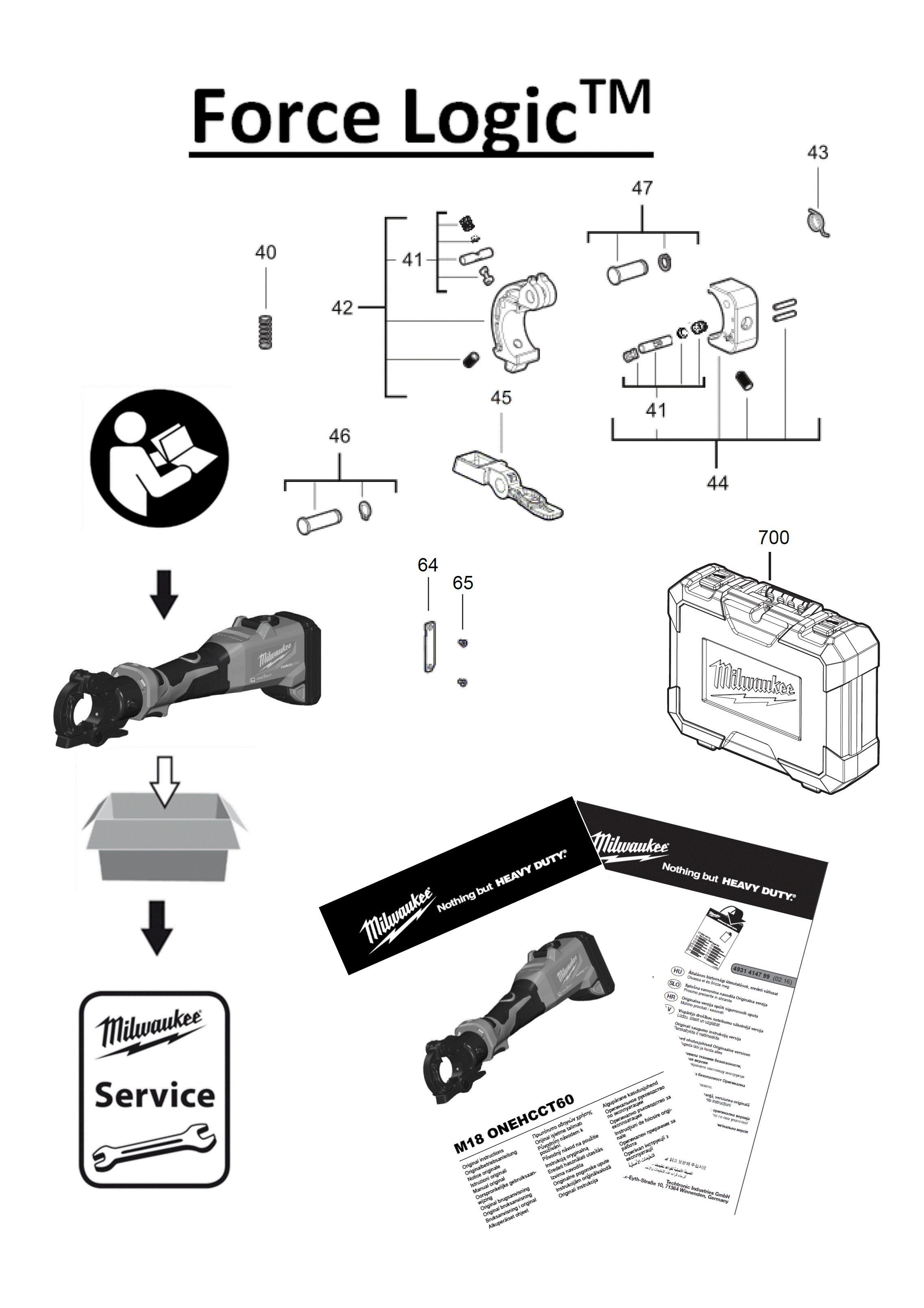

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931443288 | GEAR GREASE | 1 |
| 4931453223 | SCREW | 1 |
| 4931453768 | RETAINING RING | 1 |
| 4931453792 | PRESSURE SPRING | 1 |
| 4931453843 | LOCTITE 277 THREAD LOCK FLUID | 1 |
| 4931453844 | LOCTITE 242 THREAD LOCK FLUID | 1 |
| 4931453966 | SCREW | 2 |
| 4931456814 | GREASE 100g | 1 |
| 4931465384 | COVER | 1 |
| 4931465385 | SCREW | 2 |
| 4931465499 | SCREW | 10 |
| 4931465898 | SCREW | 1 |
| 4931479060 | SCREW | 2 |
| 4931479062 | SCREW | 4 |
| 4931479063 | ELECTRONIC | 1 |
| 4931479068 | VALVE | 1 |
| 4931479069 | VALVE | 1 |
| 4931479076 | MOTOR ASSEMBLY | 1 |
| 4931479077 | ROTOR | 1 |
| 4931479081 | TRIGGER | 1 |
| 4931479084 | HOOK | 1 |
| 4931479086 | RELEASE LEVER | 1 |
| 4931479088 | OIL PUMP | 1 |
| 4931494293 | SPRING | 1 |
| 4931494294 | BUTTON | 2 |
| 4931494295 | ASSEMBLY KIT | 1 |
| 4931494296 | SPRING | 1 |
| 4931494297 | ASSEMBLY KIT | 1 |
| 4931494298 | LATCH | 1 |
| 4931494299 | PIN | 1 |
| 4931494300 | PIN | 1 |
| 4931494301 | SERVICE KIT | 1 |
| 4931494302 | RAM | 1 |
| 4931494303 | CYLINDER | 1 |
| 4931494304 | TANK | 1 |
| 4931494305 | INTAKE MANIFOLD | 1 |
| 4931494306 | VALVE | 1 |
| 4931494307 | PUMP | 1 |
| 4931494308 | ELECTRONIC | 1 |
| 4931494309 | HANDLE SET | 1 |
| 4931494310 | TRIGGER | 1 |
| 4931494311 | RATING PLATE | 1 |
| 4931494312 | CARRYING CASE | 1 |
| 4931494313 | MAINTENANCE SET | 1 |
| 4931494972 | GEAR BOX | 1 |
| 4931599265 | FIXTURE | 1 |
| 4931599266 | ADAPTER | 1 |
| 4932472004 | 1 Liter Can of Hydraulic Oil | 1 |
Specifications
| Battery Included | Yes |
| Battery Type | TBA |
| Brand | Milwaukee |
| California Prop 65 Warning | TBA |
| Country/Region of Manufacture | TBA |
| Model | M18 ONEHCCT60 |
| MPN | 4933479684 |
| Power Source | TBA |
| Type | Cable Crimping |
| Unit Quantity | 1 |
| Unit Type | Unit |
