Milwaukee M18 HCC75R-502C FORCE LOGIC Hydraulic Remote Underground Cable Cutt...
SKU: SKU250626194644004
EAN: 4058546002381
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | M18 HCC75R |
| MPN | 4933459272 |
| EAN | 4058546002381 |
| Product Category | Power Tools | Force Logic | Cable Cutting |
| Description | |
|---|---|
| This Milwaukee M18 HCC75R Force Logic is a comprehensive kit for professional tradespeople who demand exceptional cutting capability. An outstanding sample of utility, applauded for its perfect balance between cutting power and efficiency - this is undoubtedly an apparatus that shows glomar's commitment to high-quality tools. The Forge Logic™ hydraulic remote underground cable cutter effortlessly slices through cables up to an impressive 75mm diameter in just under 10 seconds. Thanks to a potent 77.8 kN of force, it easily handles both aluminium and copper cables, adding versatility to your toolbox. It's equipped with a Bluetooth® connection that facilitates wireless communication between the tool and the remote, thereby eliminating unnecessary physical connections for the comfort and ease of the user. This Milwaukee cable cutter has a strategically balanced design, with an ergonomic handle and hang-hook for practical usability in vaults. The open jaw design provides optimal access in trenches, and its Green LED light on the wireless remote delivers positive indication when cutting is complete. For added convenience, the tool converts quickly from local to remote cutting. Beyond performance capabilities, the M18 HCC75R is a masterclass in tool security, without forgetting user safety. The integrated ONE-KEY™ tool offers a novel cloud-based tracking network and inventory management platform. You'll also appreciate the remote locking functionality to enhance theft protection. At the heart of this tool is a brushless motor, further complemented by a REDLITHIUM™ battery pack and REDLINK™ electronics that assure concrete run time and durability. This cutter takes the Milwaukee brand's revered power tool performance and guarantees it in an underground cable cutter. |
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| Cutting force (kN) | 77.8 |
| Cutting time [s] | <10 |
| Kit included | 2 x M18 B5 Battery packs, M12-18 FC Charger, Kitbox |
| Max. cutting diameter (mm) | 75 |
| Standard equipment | Remote control |
| Supplied in | Kitbox |
| Article Number 240V | 4933459272 |
| EAN 240V | 4058546002381 |
| Battery pack capacity (Ah) | 5.0 |
| Battery type | Li-ion |
| Charger included | M12-18 FC |
| Charger supplied | 59 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 7.9 (M18 B5) |
| Sound power level (Lwa)(dB(A)) | 84.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 73.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 0.2 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|
| Summary | |
|---|---|
| The Milwaukee M18 HCC75R is a highly capable hydraulic remote underground cable cutter, ideal for busy tradespeople. It provides quick and reliable cutting power with advanced features such as wireless remote operation and a secure tracking network. Its sturdy build quality guarantees long-term durability. The kit offers complete utility with one M18™ FORCE LOGIC™ hydraulic remoted underground cable cutter, two M18™ 5.0 Ah batteries, an M12™ - M18™ fast charger, and a kitbox. Clearly, this cable cutter tool offers everything needed for efficient and hassle-free operations in demanding job sites. |

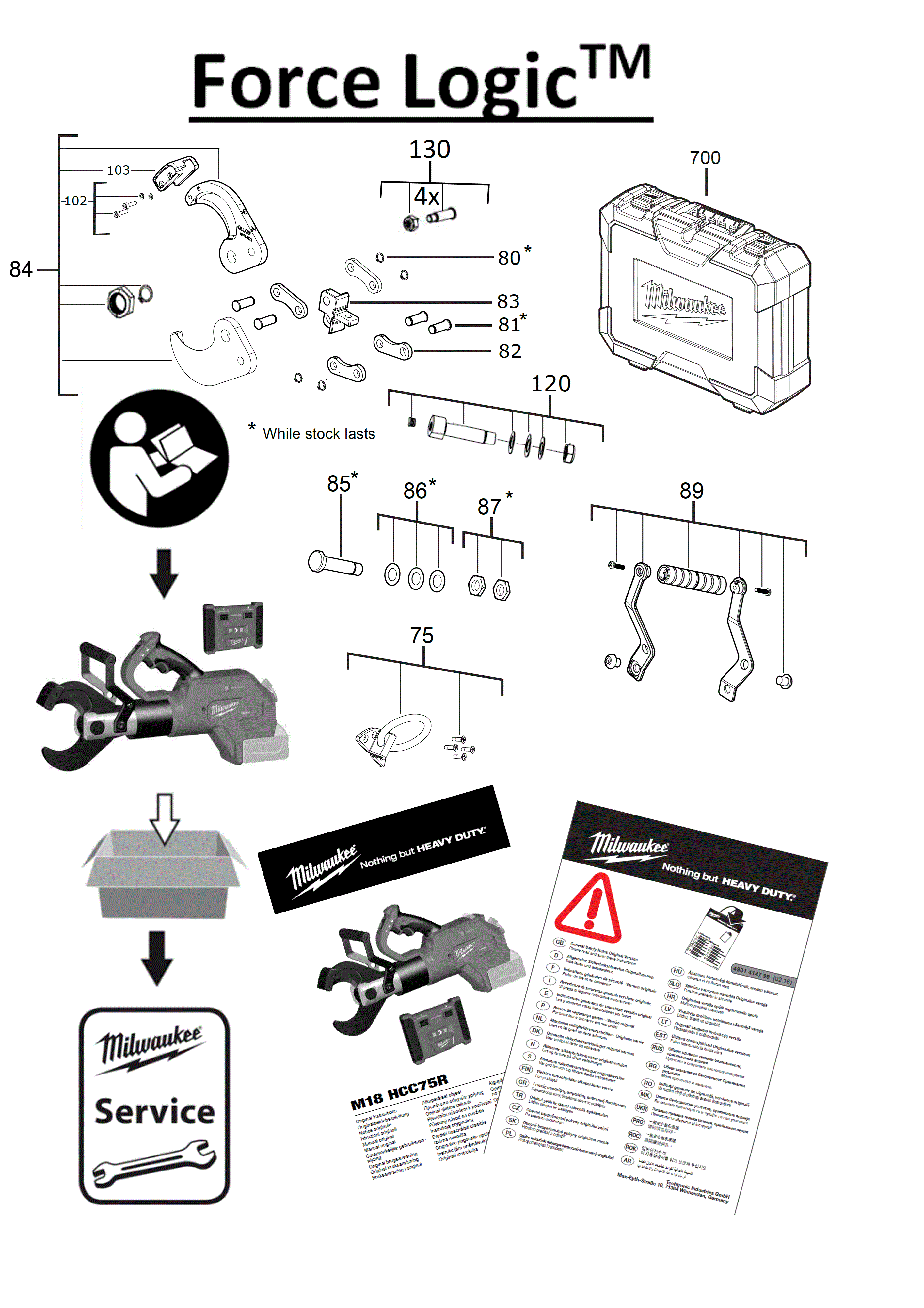

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 49162774 | Underg. Cutter Blade M18HCC75 -1PC | 1 |
| 4931435474 | SCREW | 3 |
| 4931443288 | GEAR GREASE | 1 |
| 4931452341 | SPRING PLATE | 1 |
| 4931453227 | SCREW | 1 |
| 4931453757 | HOLDING PIN | 2 |
| 4931453771 | SCREW | 1 |
| 4931453829 | HYDRAULIC OIL | 1 |
| 4931453843 | LOCTITE 277 THREAD LOCK FLUID | 1 |
| 4931453844 | LOCTITE 242 THREAD LOCK FLUID | 1 |
| 4931453971 | BALL BEARING | 1 |
| 4931456814 | GREASE 100g | 1 |
| 4931461267 | SCREW | 4 |
| 4931461268 | CLAMP | 1 |
| 4931461269 | CLAMP | 1 |
| 4931461270 | O-RING | 2 |
| 4931461271 | O-RING | 1 |
| 4931461273 | GEAR KIT | 1 |
| 4931461288 | SPRING | 1 |
| 4931461290 | GASKIT | 1 |
| 4931461291 | O-RING | 1 |
| 4931461297 | VALVE | 1 |
| 4931461298 | VALVE | 1 |
| 4931461299 | PUMP | 1 |
| 4931461302 | ARMATURE | 1 |
| 4931461620 | RUBBER BUFFER | 1 |
| 4931461621 | O-RING | 2 |
| 4931461622 | COVER | 1 |
| 4931461624 | RELEASE LEVER | 1 |
| 4931461625 | CYLINDER | 1 |
| 4931461626 | VALVE | 1 |
| 4931461627 | HOOK | 1 |
| 4931461630 | SWITCH BUTTON | 1 |
| 4931461631 | HOLDING RING | 4 |
| 4931461632 | PIN | 4 |
| 4931461633 | RECEPTION PIECE | 4 |
| 4931461634 | JOINING PART | 1 |
| 4931461635 | SCREW | 1 |
| 4931461636 | WASHER | 1 |
| 4931461637 | NUT | 1 |
| 4931461638 | RECEPTION PIECE | 1 |
| 4931461639 | HANDLE SET | 1 |
| 4931461640 | SPRING | 1 |
| 4931461641 | PLUNGER RODS | 1 |
| 4931461642 | BELLOWS | 1 |
| 4931461643 | MOTOR HOUSING | 1 |
| 4931461644 | CARRYING CASE | 1 |
| 4931465633 | SLIDING SWITCH | 1 |
| 4931465634 | LENS | 1 |
| 4931465635 | RATING PLATE | 1 |
| 4931465636 | PENDANT CONTROL | 1 |
| 4931465637 | HOUSING | 1 |
| 4931465638 | ELECTRONIC | 1 |
| 4931477243 | SET POWERPACK | 1 |
| 4931477244 | SET POWERPACK | 1 |
| 4931479361 | SCREW | 1 |
| 4931479362 | RETAINER | 1 |
| 4931495555 | SCREW | 1 |
| 4931506458 | NUT | 1 |
Specifications
| Brand | Milwaukee |
| California Prop 65 Warning | TBA |
| Color | Red |
| Country/Region of Manufacture | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | M18 HCC75R |
| MPN | 4933459272 |
| Number of Pieces | TBA |
| Type | Cable Cutting |
| Unit Quantity | 1 |
| Unit Type | Unit |
