Milwaukee M18 HCC45-522C FORCE LOGIC Hydraulic 44 Mm Cable Cutter 4933459267
SKU: SKU250626194644001
EAN: 4058546002336
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | M18 HCC45 |
| MPN | 4933459267 |
| EAN | 4058546002336 |
| Product Category | Power Tools | Force Logic | Cable Cutting |
| Description | |
|---|---|
| Title Milwaukee M18 HCC45 FORCE LOGIC™ Hydraulic Cable Cutter Kit 4933459267 Secondary Title Milwaukee M18 HCC45 though engineered with FORCE LOGIC™— robust cable cutting tool kit that delivers swift and accurate cuts with unmatched precision, model 4933459267 Description Introducing the Milwaukee M18 HCC45; a FORCE LOGIC™ Hydraulic Cable Cutter Kit that is precision-engineered for professionals. Renowned for delivering outstanding cutting performance in just 9 seconds, this powerful tool asserts itself with a whopping force of 77.8 kN to slice ACSR/ACSS cables up to ⌀44 mm—a boon to any tradesperson needing an edge in cable cutting. At the heart of its design is an innovative patent-pending jaw that opens with just two fingers. This advancement significantly enhances alignment, easing operation even when wearing Class 3 gloves. Furthermore, the wire itself automatically closes the jaw, offering hands-free jaw closure for the simplest mid-span cuts. Confidence is assured with the fully balanced design delivering unprecedented control, backed by a 340° rotatable head powered by a 77.8 kN hydraulic pump delivering lightning-fast transmission wire cuts. The M18 HCC45 is a cutting-edge device from the house of glomar that caters a perfect equilibrium between practical functionality and ingenious technology. Its operation is further enhanced with REDLINK™ electronics, a brushless motor, and a REDLITHIUM™ battery pack, which together deliver unmatched power, extended run-time, and superior durability. Unique to the MILWAUKEE® range, the M18 HCC45 is part of the flexible battery system, allowing it to perform seamlessly with all MILWAUKEE® M18™ batteries. The intelligent inclusion of ONE-KEY™ tool tracking & security features offers a cost-free, cloud-based tracking network, and inventory management platform for your tools, providing complete tool activity and accuracy protocol. Summary The Milwaukee M18 HCC45 FORCE LOGIC™ Hydraulic Cable Cutter Kit is a purpose-built, industrial-grade tool suitable for those who require fast, reliable, and accurate cable cuts. Ideal for professional tradespeople in the construction, engineering, and electrical industries, this kit provides substantial benefits in enhancing productivity, ensuring accuracy, and simplifying mid-span cuts. The set includes the M18™ FORCE LOGIC™ hydraulic 44 mm cable cutter, one M18™ 5.0 Ah battery, one M18™ 2.0 Ah battery, an M12™ - M18™ fast charger, and one sturdy kitbox for safe storage and transportation. Your ingenious tool kit—a steadfast partner in professional endeavours. |
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| Cutting force (kN) | 77.8 |
| Cutting time [s] | <9 |
| Kit included | 1 x M18 B5, 1 x M18 B2 Battery packs, M12-18 FC Charger, Kitbox |
| Max. cutting diameter (mm) | 44 |
| Milw. battery included 2 | 1 x M18 B2 |
| Supplied in | Kitbox |
| Article Number 240V | 4933459267 |
| EAN 240V | 4058546002336 |
| Battery pack capacity (Ah) | 1 x 5.0/ 1 x 2.0 |
| Battery pack capacity (Ah) | 1 x 5.0 + 1 x 2.0 |
| Battery type | Li-ion |
| Charger included | M12-18 FC |
| Charger supplied | 59 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 6.0 (M18 B2) |
| Sound power level (Lwa)(dB(A)) | 87.9 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 76.9 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 1.2 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

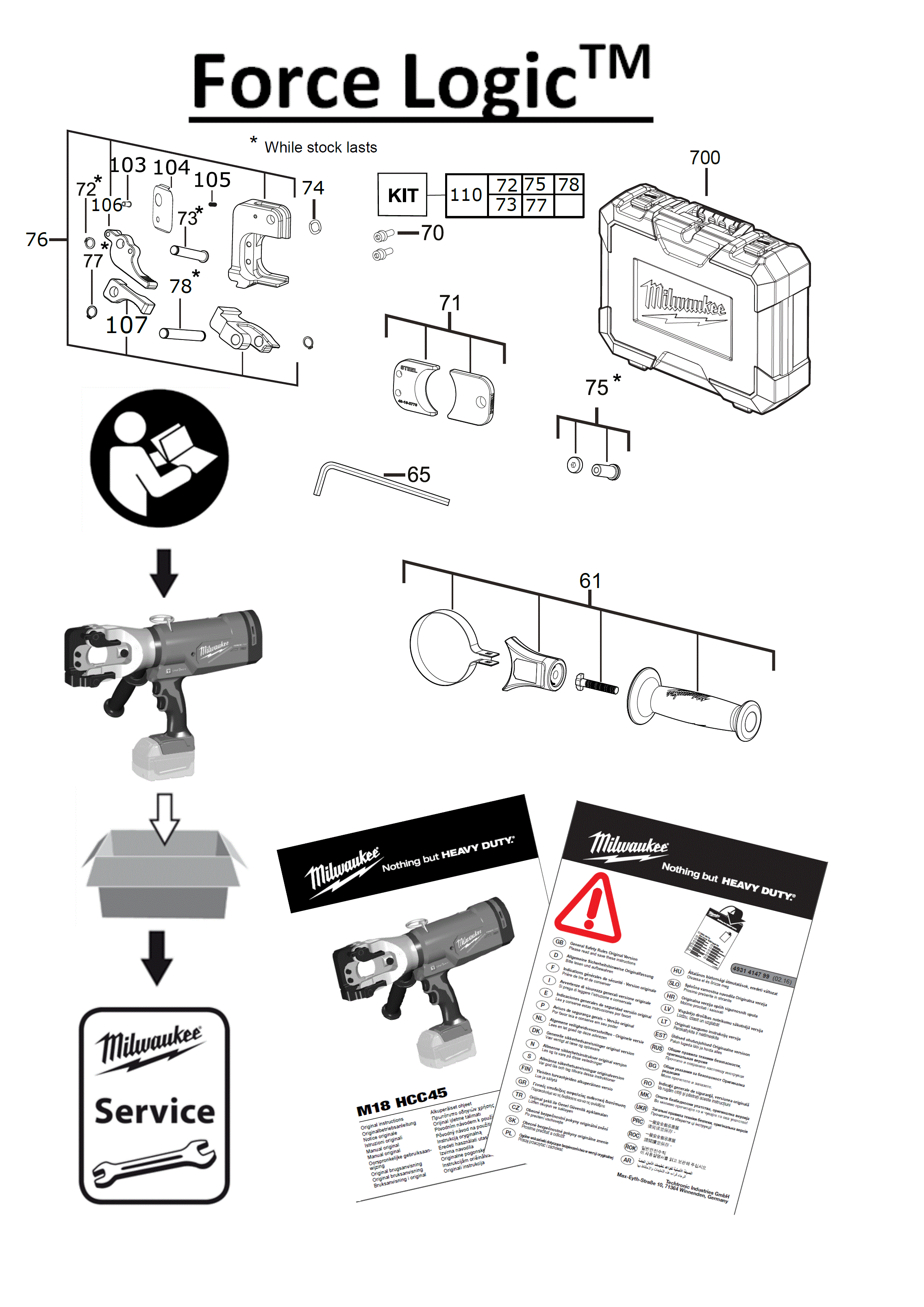

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 49162775 | ACSR Blade M18HCC45 -1PC | 1 |
| 4931408243 | PRESSURE SPRING | 1 |
| 4931435474 | SCREW | 3 |
| 4931443288 | GEAR GREASE | 1 |
| 4931453227 | SCREW | 1 |
| 4931453757 | HOLDING PIN | 2 |
| 4931453771 | SCREW | 1 |
| 4931453778 | ALLEN KEY | 1 |
| 4931453843 | LOCTITE 277 THREAD LOCK FLUID | 1 |
| 4931453844 | LOCTITE 242 THREAD LOCK FLUID | 1 |
| 4931453971 | BALL BEARING | 1 |
| 4931456814 | GREASE 100g | 1 |
| 4931461266 | RING | 1 |
| 4931461267 | SCREW | 4 |
| 4931461268 | CLAMP | 1 |
| 4931461269 | CLAMP | 1 |
| 4931461270 | O-RING | 2 |
| 4931461271 | O-RING | 1 |
| 4931461272 | SEALING WASHER | 2 |
| 4931461273 | GEAR KIT | 1 |
| 4931461274 | COVER | 1 |
| 4931461275 | AUXILIARY HANDLE | 1 |
| 4931461276 | RATING PLATE | 1 |
| 4931461277 | SCREW | 2 |
| 4931461278 | SPRING RING | 1 |
| 4931461279 | PIN | 1 |
| 4931461280 | GASKET | 1 |
| 4931461281 | SCREW | 1 |
| 4931461282 | CLAMP | 1 |
| 4931461283 | SPRING RING | 2 |
| 4931461284 | PIN | 1 |
| 4931461285 | SPRING | 1 |
| 4931461286 | PIN | 1 |
| 4931461287 | CLAMP | 1 |
| 4931461288 | SPRING | 1 |
| 4931461289 | EJECTOR | 1 |
| 4931461290 | GASKIT | 1 |
| 4931461291 | O-RING | 1 |
| 4931461292 | GASKIT | 1 |
| 4931461293 | O-RING | 1 |
| 4931461294 | LOCK RELEASE KIT | 1 |
| 4931461295 | CYLINDER | 1 |
| 4931461296 | VALVE | 1 |
| 4931461297 | VALVE | 1 |
| 4931461298 | VALVE | 1 |
| 4931461299 | PUMP | 1 |
| 4931461300 | CONNECTION SET | 1 |
| 4931461301 | COVER | 1 |
| 4931461302 | ARMATURE | 1 |
| 4931461303 | TRIGGER | 1 |
| 4931461304 | HANDLE SET | 1 |
| 4931461305 | ELECTRONIC | 1 |
| 4931461306 | PLUNGER RODS | 1 |
| 4931461307 | CLAMPING PLATE | 1 |
| 4931461308 | SCREW | 1 |
| 4931461309 | CARRYING CASE | 1 |
| 4931473389 | LEVER | 1 |
| 4931473390 | LEVER | 1 |
| 4931477246 | SET POWERPACK | 1 |
| 4931506085 | SERVICE KIT | 1 |
| 4932472004 | 1 Liter Can of Hydraulic Oil | 1 |
Specifications
| Battery Capacity | TBA |
| Battery Included | Yes |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Blade Length | TBA |
| Blade Location | TBA |
| Blade Strength | TBA |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Cutting Angle | TBA |
| Cutting Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | M18 HCC45 |
| Motor Type | TBA |
| MPN | 4933459267 |
| Number of Batteries | TBA |
| Number of Items in Set | 5 |
| Power Source | TBA |
| Safety Type IP | TBA |
| Set Includes | 1 x M18 B5, 1 x M18 B2 Battery packs, M12-18 FC Charger, Kitbox |
| Suitable For | TBA |
| Type | Cable Cutting |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | 18 |
Manufacturer Information
About
Milwaukee Tool is a heavy-duty power tool, hand tool and accessories manufacturer focused on professional trades, known for cordless innovation and jobsite solutions.
UK Contact
Techtronic Industries (UK) Limited, Suite A, Second Floor, Parkway, Marlow, Bucks, SL7 1YL, England
Product Range
Cordless and corded power tools, hand tools, measuring/instrumentation, accessories (blades, bits, fixings), storage systems (e.g., modular storage), and PPE for professional users.
