Milwaukee M18 FTHCHS35 -802 FUEL Top Handle Chainsaw With 35 Cm Bar 4933479991
SKU: SKU250626201410001
EAN: 4058546377854
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | M18 FTHCHS35 |
| MPN | 4933479991 |
| EAN | 4058546377854 |
| Product Category | Outdoor Power Equipment | Sawing and Cutting | Top Handle Chainsaws |
| Description | |
|---|---|
| Conquer demanding arboricultural work with the Milwaukee M18 FTHCHS35 FUEL™ top handle chainsaw kit. This professional-grade tool features a high-torque motor designed to complete cuts in the most demanding materials without compromise. Thanks to its unique FUEL™ technology, the chainsaw can reach full throttle in under a second – outstripping even petrol or higher voltage equivalents. Designed with the tradesman in mind, this high-speed, versatile kit offers exceptional productivity: make up to 150 cuts in 10 x 10 cm cedar on a single charge of the M18™ HIGH OUTPUT™ 8.0 Ah battery; a remarkable feat for performance-oriented users on demanding jobs. And the sensitivity of the variable speed trigger allows for unprecedented control over the power curve, ensuring precise and efficient work. The ergonomics of this Milwaukee chainsaw, trusted by glomar, have been thoughtfully optimised. The top handle design, when combined with the angled bail handle, ensures convenient handling in various positions while maintaining the necessary balance for precision work. A lanyard hang loop allows a quick attachment and removal from the harness, easing on-site portability. With its all-metal bucking spikes for increased leverage, a clear-view, no-spill oil reservoir, and onboard scrench storage, the M18 FTHCHS35 chainsaw proves its mettle in user comfort and convenience. The kit further includes 76cc of oil, chain tool, and bar cover. |
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| Chain bar length (cm) | 35 |
| Chain file size (mm/") | 4 |
| Chain pitch ["] | 8.3 / .325″ |
| Chain speed (m/s) | 15 |
| Drive Links | 59 |
| Gauge ["] | 1.1 / 0.043″ |
| Kit included | 2 x M18 HB8 Battery packs, M12-18 FC Charger, No kitbox or bag supplied |
| Oil tank capacity (l) | 0.2 |
| Standard equipment | 76cc of oil, chain tool, bar cover |
| Supplied in | No kitbox or bag supplied |
| Article Number | 4933479991 |
| EAN 240V | 4058546377854 |
| Battery pack capacity (Ah) | 8.0 |
| Battery type | Li-ion |
| Charger included | M12-18 FC |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 4.7 (M18 HB8) |
| What's Included | |
|---|---|
|
| Summary | |
|---|---|
| The Milwaukee M18 FUEL™ Top Handle Chainsaw Kit is a high-powered, versatile tool designed for professional tradespeople handling challenging cutting tasks. Its high torque, outstanding speed, and FUEL™ technology make it ideally suited for arboricultural work where precision, speed, and power are paramount. This kit, utilising the HIGH OUTPUT™ system for extended performance and run-time, offers significant productivity benefits while ensuring user comfort and convenience. It includes a 35 cm bar chainsaw, two M18™ 8.0 Ah batteries, and a fast charger, offering a comprehensive solution for professional cutting work. |

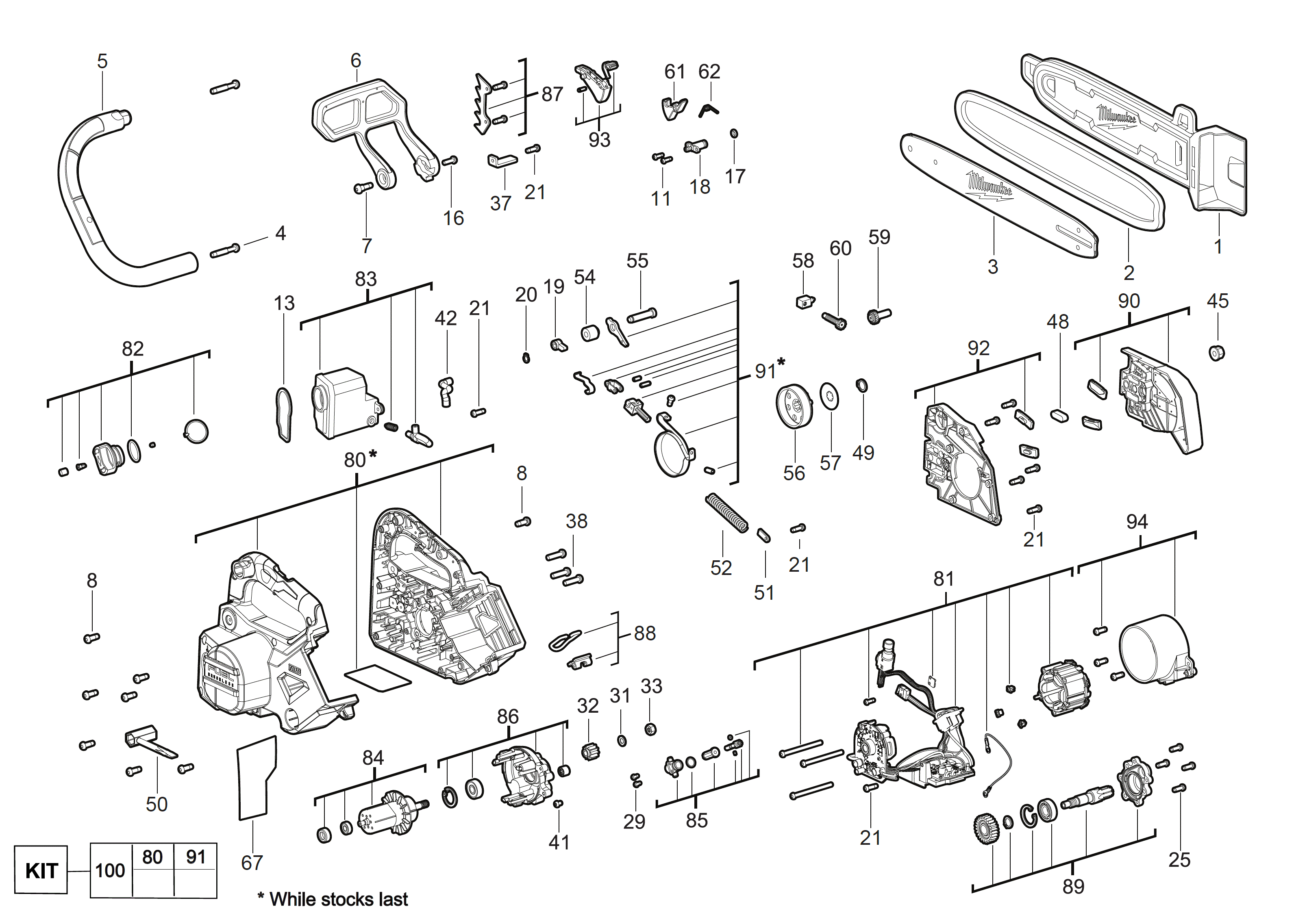

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931435150 | SCREW | 4 |
| 4931435474 | SCREW | 2 |
| 4931436686 | SCREW | 2 |
| 4931453127 | SCREW | 2 |
| 4931465908 | SCREW | 1 |
| 4931465909 | SCREW | 8 |
| 4931465913 | SCREW | 1 |
| 4931465914 | O-RING | 1 |
| 4931465915 | CONNECTOR | 1 |
| 4931465916 | SWITCH | 1 |
| 4931465917 | HOLDING RING | 1 |
| 4931465928 | CORE LIFTER RING | 1 |
| 4931465929 | SCREW | 3 |
| 4931465931 | WRENCH | 1 |
| 4931465940 | RETAINING PLATE | 1 |
| 4931465941 | SPRING | 1 |
| 4931465943 | BUSH | 1 |
| 4931465944 | BOLT | 1 |
| 4931465949 | SCREW | 1 |
| 4931465951 | NUT | 1 |
| 4931472833 | SNAP RING | 1 |
| 4931473747 | COVER CAP | 1 |
| 4931494739 | HANDLE | 1 |
| 4931494740 | OPERATING HANDLE | 1 |
| 4931494741 | GASKET | 1 |
| 4931494742 | WASHER | 1 |
| 4931494743 | PINION | 1 |
| 4931494744 | NUT | 1 |
| 4931494745 | SCREW | 1 |
| 4931494746 | TUBE | 1 |
| 4931494747 | PAD | 1 |
| 4931494748 | CLUTCH DISC | 1 |
| 4931494749 | WASHER | 1 |
| 4931494750 | CROSS BRACKET | 1 |
| 4931494751 | CROSS BRACKET | 1 |
| 4931494752 | LEVER | 1 |
| 4931494753 | SPRING | 1 |
| 4931494755 | HOUSING | 1 |
| 4931494756 | STATOR | 1 |
| 4931494757 | TANK | 1 |
| 4931494758 | ROTOR | 1 |
| 4931494759 | OIL PUMP | 1 |
| 4931494760 | GEAR CASE | 1 |
| 4931494761 | SPIKE | 1 |
| 4931494762 | HOOK | 1 |
| 4931494763 | COVER ASSY | 1 |
| 4931494764 | GUIDE KIT | 1 |
| 4931494765 | BRAKE DISC | 1 |
| 4931494766 | COVER | 1 |
| 4931494767 | GUARD CAP SET | 1 |
| 4931494768 | MOTOR COVER | 1 |
| 4931494769 | SAFTY GUARD | 1 |
| 4931494770 | RATING PLATE | 1 |
| 4931507687 | HANDLE HOUSING KIT | 1 |
| 4932480173 | GUIDE BAR 14IN/35CM M18 FTHCHS35 | 1 |
| 4932480178 | SAW CHAIN TOP HANDLE 325LP X 356 X 1.1 | 1 |
| 660024030 | SCREW | 8 |
Specifications
| Auxiliary Handle | TBA |
| Battery Capacity | TBA |
| Battery Included | Yes |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Chuck Size | TBA |
| Chuck Type | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Torque | TBA |
| Model | M18 FTHCHS35 |
| Motor Type | TBA |
| MPN | 4933479991 |
| Number of Batteries | TBA |
| Number of Items in Set | 3 |
| Power | TBA |
| Power Source | TBA |
| Set Includes | 2 x M18 HB8 Battery packs, M12-18 FC Charger, No kitbox or bag supplied |
| Speed | TBA |
| Type | Top Handle Chainsaws |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | 18 |
