| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | M18 FLAG230XPDB |
| MPN | 4933499273 |
| EAN | 4058546564377 |
| Product Category | Power Tools | Grinders and Polishers | 230mm Grinders |
| Description | |
|---|---|
| Crafted with the finest precision and durability, the Milwaukee M18 FLAG230XPDB is the world's first single 18V battery-operated 230mm grinder kit. This innovative tool is substantially lighter than its corded counterparts, making it less cumbersome for extended use. The robust power of this grinder allows for up to 68 cuts per charge in a 42mm stainless steel pipe, a significant improvement on productivity. Leveraging the synergy of M18 FUEL™ technologies and the HIGH OUTPUT™ system, the M18 FLAG230XPDB delivers an extended performance and run time, earning its reputation as an undisputed flag-bearer. Ideal for the seasoned trade professionals or the persevering DIY enthusiast, the tool has been designed by our trading partner, glomar, to extract maximum output from the FORGE™ 12.0 Ah battery included in the kit. This grinder features numerous sophisticated systems that prioritise user safety and convenience. The disc brake enhances safety by slowing down the disc rapidly, while the non-lockable safety paddle switch with line-lock-out function diligently prevents unintentional start-ups. The FIXTEC™ nut caters for tool-free disc change, ensuring efficient operations. With a keyless guard, the tool facilitates fast guard adjustment sans a key and boasts great cutting capacity. For those seeking comfort during use, the anti-vibration side handle lowers the level of vibration, reducing fatigue during prolonged work. The removable dust screen serves to prolong the working life of the motor by preventing the entry of debris. |
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| Anti_kickback protection | Yes |
| Brake | Yes |
| Cutting depth (mm) | 65 |
| Disc diameter (mm) | 230 |
| Kit included | 1 x M18 FB12 Battery pack, M12-18 FC Charger, Kitbox |
| Line lock out function | Yes |
| No load speed (rpm) | 6600 |
| Spindle size | M14 |
| Standard equipment | Quick release safety guard, AVS side handle, flange, FIXTEC™ nut, 2x dust Screens, wrench |
| Supplied in | Kitbox |
| Switch type | Paddle (Deadman) switch |
| Article Number | 4933499273 |
| EAN 240V | 4058546564377 |
| Battery pack capacity (Ah) | 12.0 |
| Battery type | Li-ion |
| Charger included | M12-18 FC |
| Charger supplied | 130 min |
| No. of batteries supplied | 1 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 5.3 (M18 FB12) |
| Sound power level (Lwa)(dB(A)) | 90.6 |
| Sound power level measured uncertainty [dB[A]] | 3 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 79.7 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration grinding (m/s²) | 10.2 |
| Vibration grinding uncertainty (m/s²) | 1.5 |
| Vibration sanding (m/s²) | 1.6 |
| Vibration sanding uncertainty [m|s²] | 1.5 |
| What's Included | |
|---|---|
|
| Summary | |
|---|---|
| The Milwaukee M18 FLAG230XPDB 230mm grinder kit is a heavyweight performer in its class. Optimal for professional tradespeople or ambitious DIY users, this tool maximises productivity and performance with single battery power and exceptional durability. Key benefits include extended run time from the HIGH OUTPUT™ system, an anti-vibration side handle for comfort, and tool-free disc changes. The kit includes a high-capacity FORGE™ 12.0 Ah battery, a versatile M12™-M18™ fast charger, and a sturdy kit-box. |

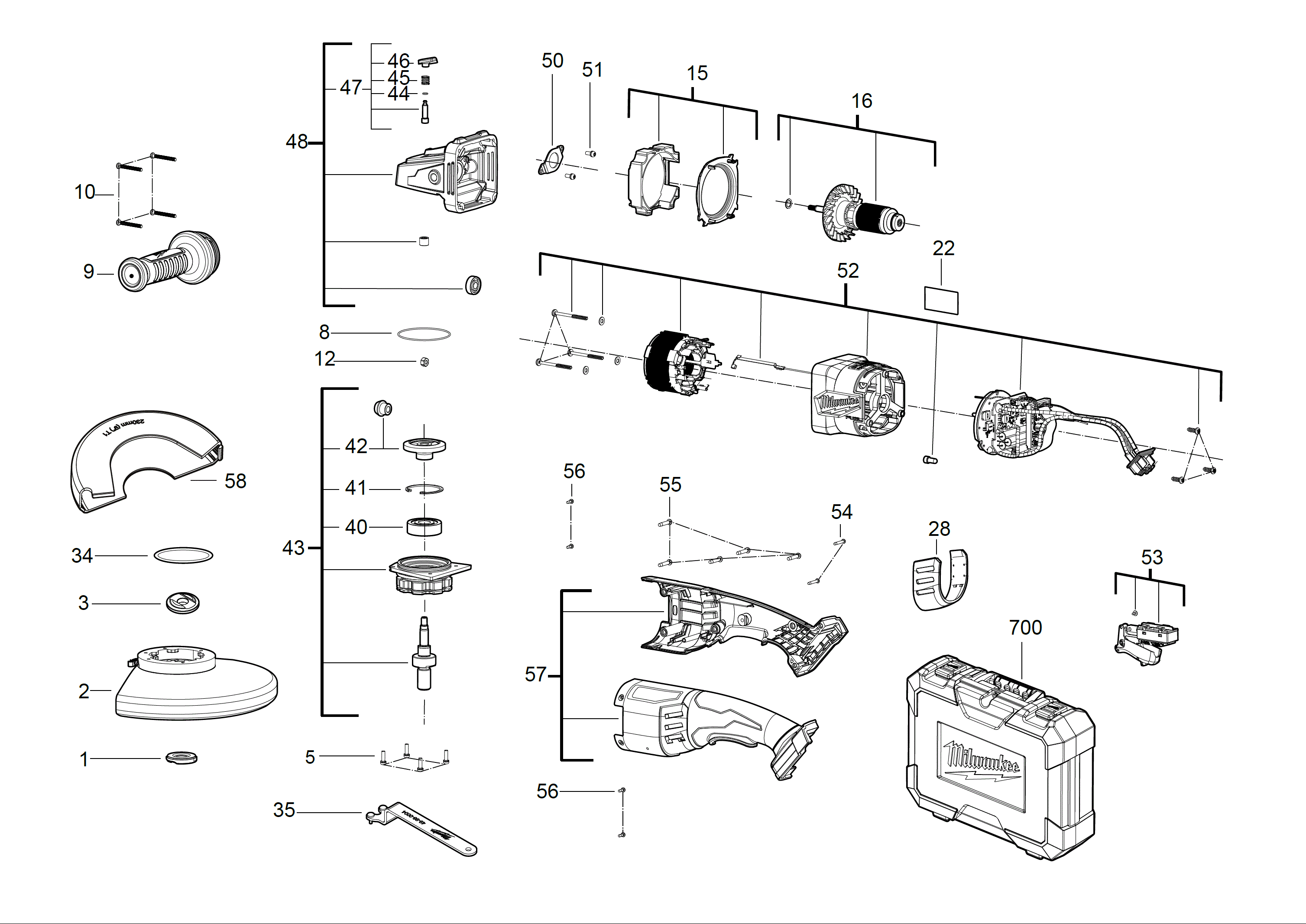

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931431788 | SCREW | 4 |
| 4931435002 | AUXILIARY HANDLE | 1 |
| 4931435004 | TRIGGER | 1 |
| 4931435005 | SPRING | 1 |
| 4931435006 | O-RING | 1 |
| 4931435039 | RETAINER | 1 |
| 4931453124 | SCREW | 5 |
| 4931461254 | SCREW | 4 |
| 4931465842 | FLANGE | 1 |
| 4931465843 | SCREW | 4 |
| 4931465844 | O-RING | 1 |
| 4931465845 | FRAME | 1 |
| 4931465846 | ARMATURE ASSEMBLY | 1 |
| 4931465848 | DUST FILTER | 1 |
| 4931465849 | O-RING | 1 |
| 4931465850 | BALL BEARING | 1 |
| 4931465851 | CLAMPING RING | 1 |
| 4931465852 | BEVEL GEAR PAIR | 1 |
| 4931465853 | DRIVE | 1 |
| 4931465854 | SPINDLE LOCK | 1 |
| 4931465855 | GEAR BOX ASSY | 1 |
| 4931465856 | SCREW | 2 |
| 4931465857 | ELECTRONIC | 1 |
| 4931465858 | SWITCH | 1 |
| 4931465859 | HOUSING | 1 |
| 4931465861 | CARRYING CASE | 1 |
| 4931465862 | GUARD | 1 |
| 4931466273 | FIXTEC NUT | 1 |
| 4931466274 | WRENCH | 1 |
| 4931480292 | GUARD | 1 |
| 4931507933 | RATING PLATE | 1 |
| 660230017 | SCREW | 2 |
| 671686001 | NUT | 1 |
| Action | TBA |
| Battery Capacity | TBA |
| Battery Included | Yes |
| Battery Type | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Disc Diameter | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | M18 FLAG230XPDB |
| MPN | 4933499273 |
| Power | TBA |
| Power Source | TBA |
| Type | 230mm Grinders |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | 18 |
