Milwaukee M18 FFNS-502C FUEL 34° Framing Nailer With Single Shot Only 4933478302
SKU: SKU250626195127001
EAN: 4058546344795
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | M18 FFNS |
| MPN | 4933478302 |
| EAN | 4058546344795 |
| Product Category | Power Tools | Fastening | Nailers and Staplers |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Collation angle (°) | 30 - 34 |
| Kit included | 2 x M18 B5 Battery packs, M12-18 FC Charger, Kitbox |
| Magazine capacity | 51 |
| Magazine capacity nails | 51 |
| Nail diameter (mm) | 2.8 - 3.3 |
| Nail type (mm) | 50 - 90 |
| Standard equipment | Allan Key |
| Supplied in | Kitbox |
| Type | 18V |
| Article Number | 4933478302 |
| EAN | 4058546344795 |
| Battery pack capacity (Ah) | 5.0 |
| Battery type | Li-ion |
| Charger included | M12-18 FC |
| Charger supplied | 59 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18V |
| Weight with battery pack (EPTA) (kg) | 5.1 (M18 B5) |
| Sound power level (Lwa)(dB(A)) | 101.1 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 90.1 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 5.9 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

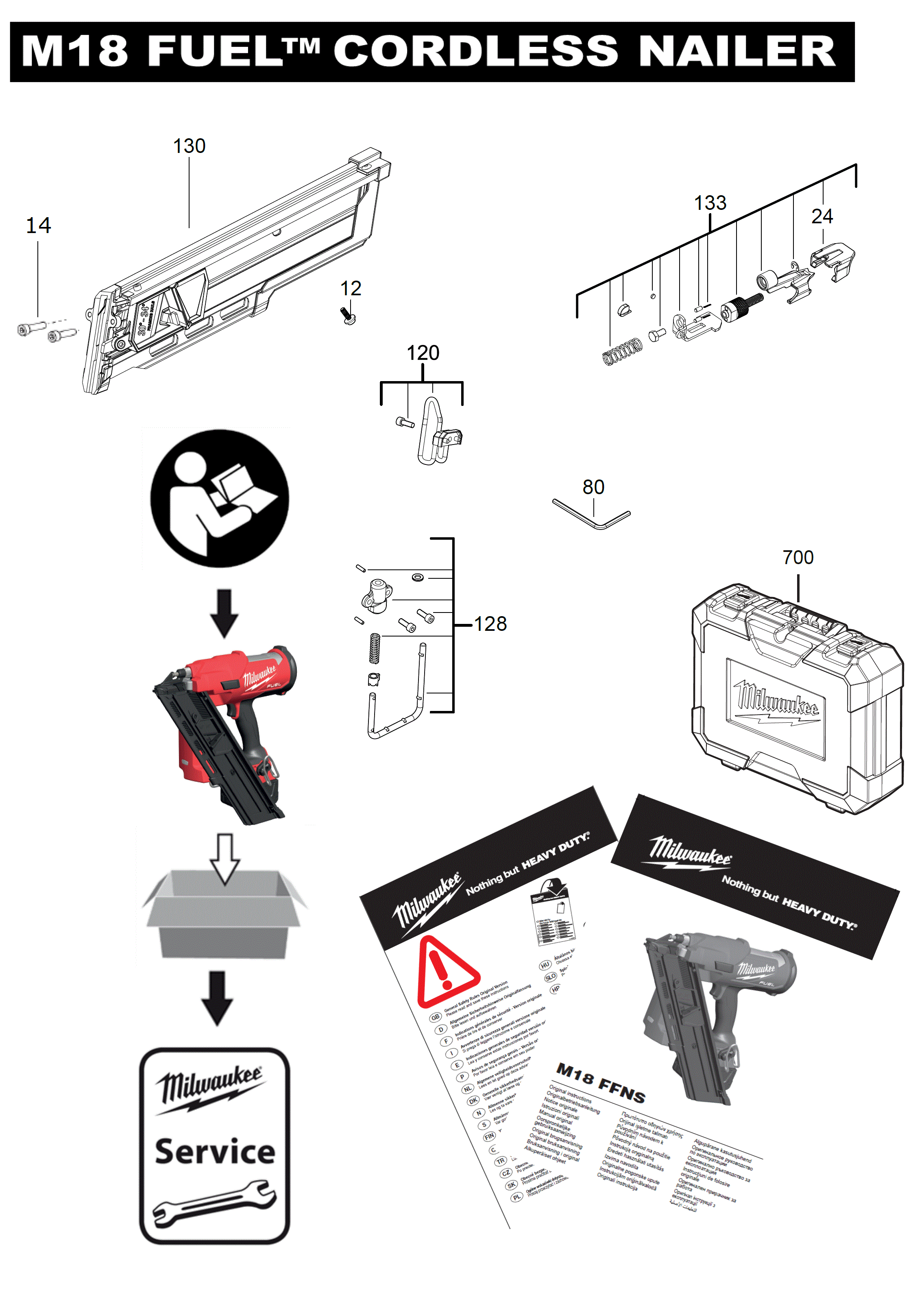

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931453966 | SCREW | 2 |
| 4931472315 | O-RING | 1 |
| 4931472316 | PLUG | 1 |
| 4931473074 | PIN | 1 |
| 4931473075 | PAWL | 1 |
| 4931473076 | SCREW | 4 |
| 4931473077 | PROTECTION WASHER | 1 |
| 4931473078 | CYLINDER COVER | 1 |
| 4931473079 | INTERMEDIATE RING | 1 |
| 4931473080 | CYLINDER GASKET | 1 |
| 4931473081 | STRIKER | 1 |
| 4931473082 | ROLLER | 6 |
| 4931473083 | PIN | 7 |
| 4931473084 | ALLEN KEY | 1 |
| 4931473085 | SCREW | 15 |
| 4931473087 | HOOK | 1 |
| 4931473088 | TRIGGER | 1 |
| 4931473089 | VALVE | 1 |
| 4931473090 | HANDLE SET | 1 |
| 4931473091 | GEAR UNIT | 1 |
| 4931473092 | GEAR BOX | 1 |
| 4931473093 | ROTOR | 1 |
| 4931473095 | HOOK | 1 |
| 4931473097 | MAGAZINE | 1 |
| 4931473098 | CYLINDER COVER | 1 |
| 4931473099 | STRIKER | 1 |
| 4931473100 | ADJUSTABLE SEGMENT | 1 |
| 4931473101 | TANK | 1 |
| 4931473102 | SPINDLE | 1 |
| 4931473103 | GUIDE ROLLER | 1 |
| 4931473104 | CARRYING CASE | 1 |
| 4931473285 | RATING PLATE | 1 |
| 4931473286 | ASSEMBLY KIT | 1 |
| 4931473287 | ELECTRONIC | 1 |
| 4931494344 | RING | 2 |
| 4931494345 | RING | 1 |
| 4931494848 | TANK M18FFNS | 1 |
| 4931495794 | VALVE | 1 |
| 4931496387 | O-RING | 1 |
| 4931496388 | CYLINDER | 1 |
| 4931599209 | FIXTURE | 1 |
| 660380006 | SCREW | 3 |
Specifications
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Flow Rate | TBA |
| Maximum Working Pressure | TBA |
| Model | M18 FFNS |
| MPN | 4933478302 |
| Nail Gauge | TBA |
| Nail Gun Angle | TBA |
| Type | Nailers and Staplers |
| Unit Quantity | 1 |
| Unit Type | Unit |
