Milwaukee HD28 IW-32X M28 ½″ Drive Impact Wrench With Pin Detent 4933416920

SKU: 250626193906001 EAN: 4002395237715

Glomar Trading - Defining Trade Excellence.

Condition
New: A genuine product, unused and unopened in original packaging.

Main Product Information
Brand	Milwaukee
Model	HD28 IW
MPN	4933416920
EAN	4002395237715
Product Category	Power Tools \| Fastening \| Impact Wrenches

Description

Specifications
Impact rate (ipm)	0 - 2450
Kit included	2 x M28 BX Battery packs, M28 C Charger, HD Box
Max. torque (Nm)	440
No load speed (rpm)	0 - 1450
Supplied in	HD Box
Tool reception	½″ square
Article Number	4933416920
EAN	4002395237715
Battery pack capacity (Ah)	3.0
Battery type	Li-ion
Charger included	M28 C
Charger supplied	60 min
No. of batteries supplied	2
Voltage (V)	28
Weight with battery pack (EPTA) (kg)	4.1 (M28 BX)
Sound power level (Lwa)(dB(A))	91
Sound power level uncertainty (dB(A))	3
Sound pressure level (Lpa)(dB(A))	80
Sound pressure level uncertainty (dB(A))	3
Vibration screw driving (m/s²)	11.3
Vibration screw driving uncertainty (m/s²)	1.5

What's Included
1x M28™ ½″ drive impact wrench with pin detent (Model: None) 2x M28™ 3.0 Ah battery (Model: M28 BX) 1x M28™ charger (Model: M28 C) 1x HD Box (Model: None) 1x HD Box (Model: None) 1x HD Box (Model: None)

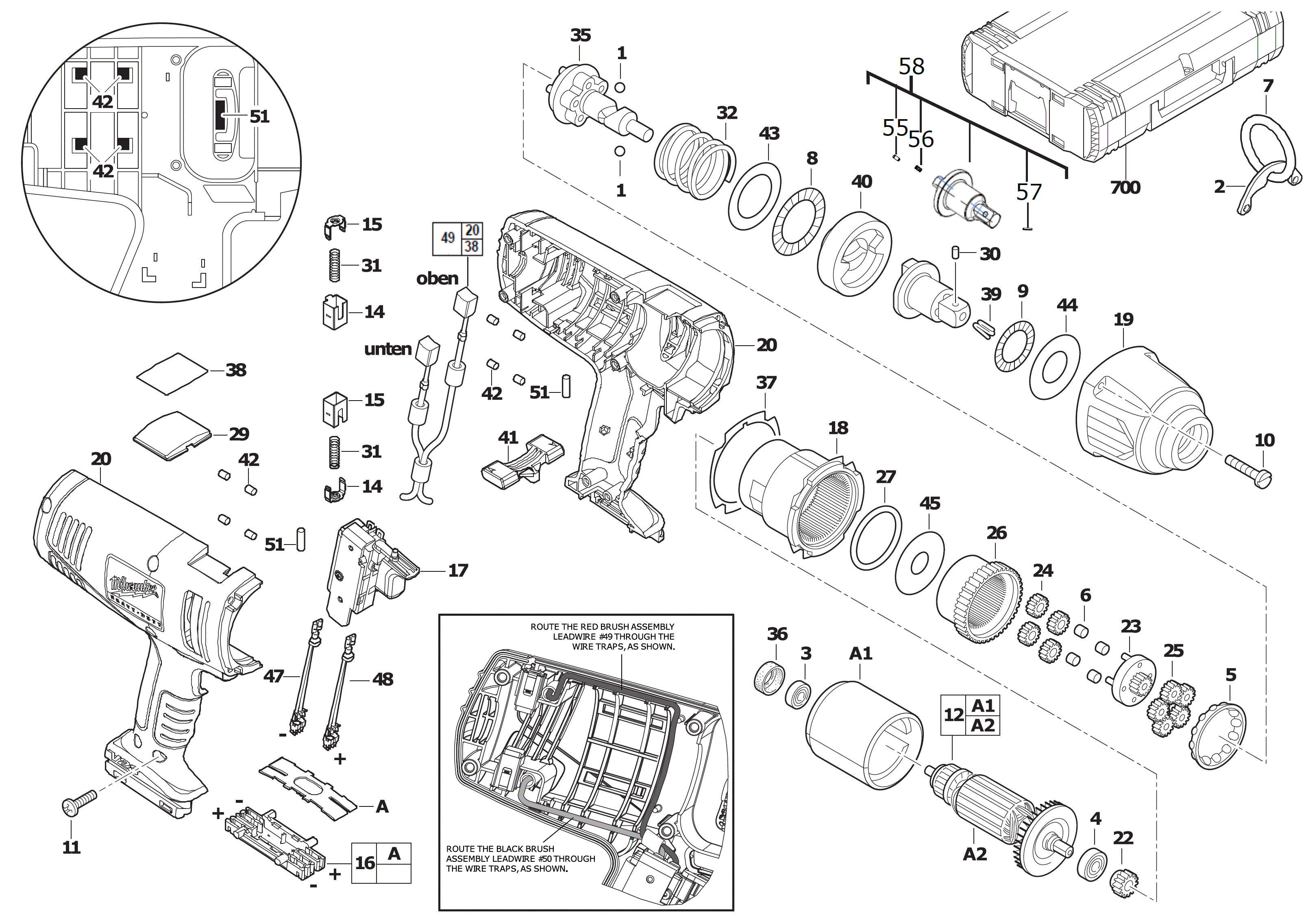

Spare Parts

Part Code	Description	Quantity

02040852	BALL BEARING	1
02400050	BEARING	1
06956290	SCREW	1
14380100	HOUSING	1
14730300	SHAFT	1
201437001	HANDLE COMPL.	1
22200425	BRUSH HOLDER	1
22320420	CLIP	1
22560975	CONNECTOR	1
23661779	SWITCH	1
23940179	RELAY CABLE	1
23940279	RELAY CABLE	1
28140175	GEAR CASE	1
290780003	MOTOR	1
32600185	GEAR	1
32620215	PLANET GEAR	5
32650005	GEAR	1
34400070	O-RING	1
40500241	SPRING	1
40509079	SPRING	1
42960015	RUBBER SLEEVE	1
43440991	GASKET	1
43720275	HOOK	1
44820205	RAM	1
44900095	SLEEVE	1
45300021	BALL	4
45300025	HOLDING-DOWN DEVICE	1
45880535	WASHER	1
45881575	WASHER	1
45883250	WASHER	1
4931433171	CARBON BRUSH SET	1
4931436071	SPRING	1
4931436072	PIN	1
4931436207	LOCKING BOLT	1
4931472706	ANVIL	1
4932378986	CARRYING CASE WITH FOAM INSERT MET	1
515364002	ADHESIVE LABEL	1
515368002	PLASTIC PLUNGER	1
610034054	PLANET WHEEL	4
610447033	PINION	1
661046002	SCREW	1
672448001	LOCKING PIN	1
680185001	BALL	1
680658010	NEEDLE BEARING	4
680658011	BALL BEARING	1
680658012	BALL BEARING	1
681150001	GROOV. BALL BEARING	1
691326001	SPRING ELEMENT	1
940045456	RATING PLATE	1

Auxiliary Handle	TBA
Battery Capacity	TBA
Battery Included	Yes
Battery Technology	Lithium-Ion (Li-Ion)
Brand	Milwaukee
Cable Length	TBA
Charging Time	TBA
Colour	Red
Country/Region of Manufacture	TBA
Features	TBA
Item Diameter	TBA
Item Height	TBA
Item Length	TBA
Item Weight	TBA
Item Width	TBA
Manufacturer Warranty	TBA
Maximum Torque	TBA
Model	HD28 IW
Motor Type	TBA
MPN	4933416920
Number of Batteries	TBA
Number of Items in Set	6
Power	TBA
Power Source	TBA
Set Includes	2 x M28 BX Battery packs, M28 C Charger, HD Box
Type	Impact Wrenches
Unit Quantity	1
Unit Type	Unit
Voltage	28
