Milwaukee HD18 PXP-H10202C M18 UPONOR Q&E Expansion Tool 4933441774
SKU: SKU250626194546003
EAN: 4002395001842
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | HD18 PXP |
| MPN | 4933441774 |
| EAN | 4002395001842 |
| Product Category | Power Tools | Force Logic | Expansion Tools |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Head type | Auto-rotating |
| Included heads | 16/20/25/32 mm |
| Kit included | 2 x M18 B2 Battery packs, M12-18 C Charger, Kitbox |
| Max. pipe diameter 10 bar (mm) | 32 x 4.4 |
| Speed (spm) | 45 |
| Standard equipment | Grease |
| Stroke length (mm) | 25 |
| Supplied in | Kitbox |
| Article Number | 4933441774 |
| EAN | 4002395001842 |
| Battery pack capacity (Ah) | 2.0 |
| Battery type | Li-ion |
| Charger included | M12-18 C |
| Charger supplied | 40 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 3.5 (M18 B2) |
| Sound power level (Lwa)(dB(A)) | 80 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 69 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | <2.5 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

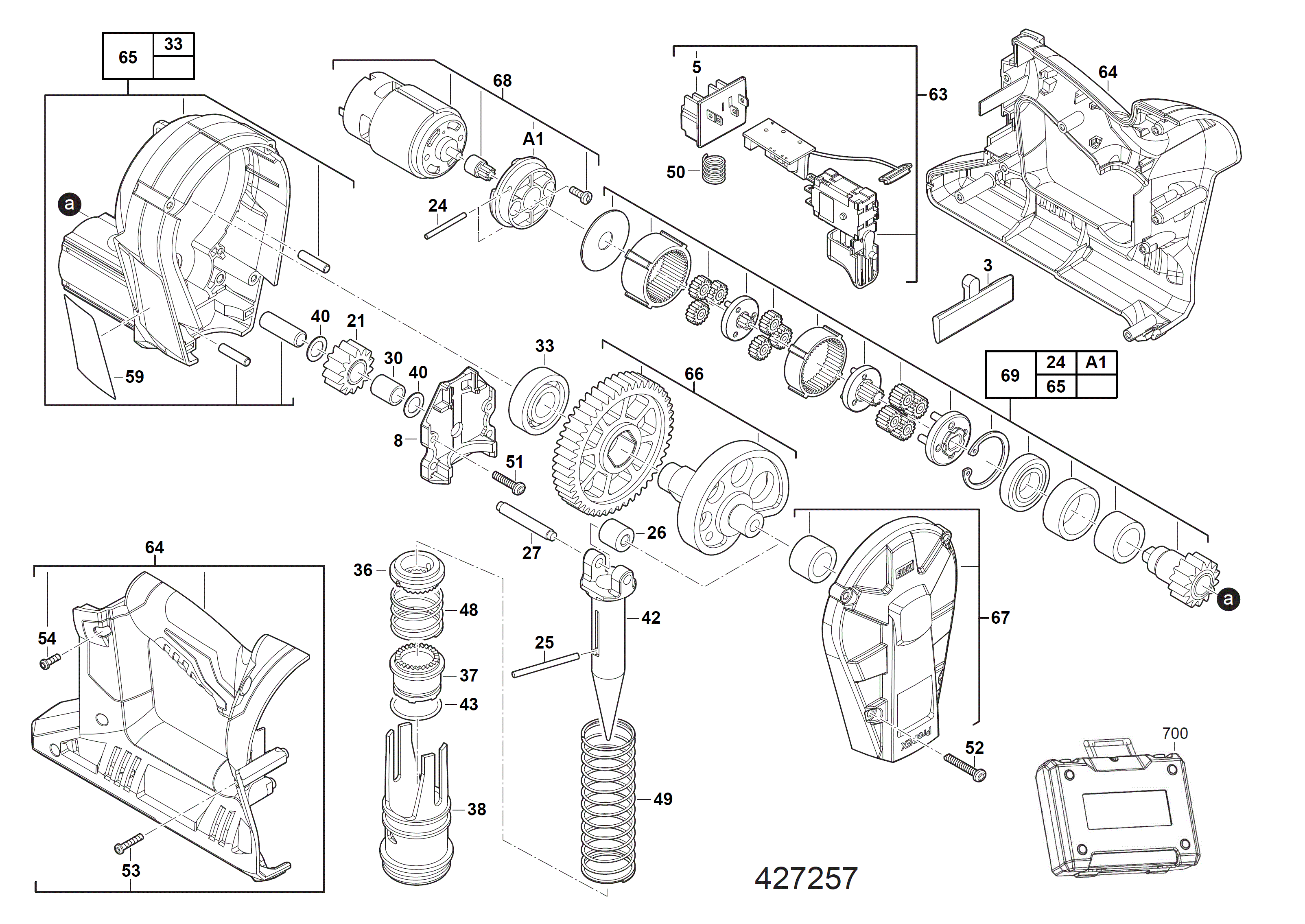

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 200001015 | GEAR BOX | 1 |
| 200230021 | CARRYING CASE | 1 |
| 200281044 | GEAR BOX | 1 |
| 200447010 | HANDLE COMPL. | 1 |
| 200663005 | MOTOR ASSEMBLY | 1 |
| 200990012 | COVER ASSY | 1 |
| 201079004 | GEARWHEEL SET | 1 |
| 201320006 | SWITCH ASSEMBLY | 1 |
| 302119005 | TERMINAL STRIP | 1 |
| 4931441173 | BOLT | 1 |
| 521623001 | LOCK BOTTON | 1 |
| 562464001 | O-RING | 1 |
| 611044001 | FRICTION DISC | 1 |
| 611241001 | INTERMEDIATE WHEEL | 1 |
| 611260001 | COLLAR | 1 |
| 633487001 | WASHER | 1 |
| 641678001 | DIAPHRAGM | 1 |
| 660031016 | SCREW | 1 |
| 660031017 | SCREW | 1 |
| 661004001 | SCREW | 1 |
| 661004002 | LOCKING SCREW | 1 |
| 671013003 | BALL BEARING | 1 |
| 672281001 | PIN | 1 |
| 672320001 | BOLT | 1 |
| 681471001 | NEEDLE BEARING | 1 |
| 691093001 | SPRING | 1 |
| 692341002 | ROLL | 1 |
| 692471001 | SPRING | 1 |
| 692472002 | SPRING | 1 |
| 692560001 | SPINDLE | 1 |
| 692561001 | FRAME | 1 |
| 940038262 | NAME PLATE | 1 |
Specifications
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | HD18 PXP |
| MPN | 4933441774 |
| Number of Items in Set | 5 |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | Expansion Tools |
| Unit Quantity | 1 |
| Unit Type | Unit |
Manufacturer Information
About
Milwaukee Tool is a heavy-duty power tool, hand tool and accessories manufacturer focused on professional trades, known for cordless innovation and jobsite solutions.
UK Contact
Techtronic Industries (UK) Limited, Suite A, Second Floor, Parkway, Marlow, Bucks, SL7 1YL, England
Product Range
Cordless and corded power tools, hand tools, measuring/instrumentation, accessories (blades, bits, fixings), storage systems (e.g., modular storage), and PPE for professional users.
