Milwaukee HD18 HX-0 Heavy Duty 4-Mode SDS-Plus Rotary Hammer Drill | 4933408320

• Condition New: A genuine product, unused and unopened in original packaging. Main Product Information Brand Milwaukee Model HD18 HX MPN 4933408320 EAN 4002395239689 Product Category Power Tools | Drilling and Chipping | SDS Plus Description Features 4-mode operation: rotary hammer, hammer only, rotation only and variolock for maximum versatility
• All metal gear case: optimum seating for gears to enhance service life
• Anti-Vibration-System delivers max. comfort by minimising vibration
• FIXTEC™ system - keyless chuck changing
• Flexible battery system: works with all MILWAUKEE® M18™ batteries
• Fuel gauge displays remaining charge
• High powered motor gives corded tool performance
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability
• Mechanical clutch: protects tool when bit binds up
• Powerful hammer mechanism: delivers 2.4 J (EPTA) of impact energy
• REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability
• REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life
• Variolock and hammer stop function
• Specifications Blow energy [EPTA][J] 2.4 Max. drilling concrete (mm) 24 Max. drilling steel (mm) 13 Max. drilling wood (mm) 30 Max. percussion rate (bpm) 4200 No load speed (rpm) 1400 Optimised drilling capacity in concrete [mm] ⌀ 6 - 18 Standard equipment Side handle with metal depth gauge, FIXTEC™ adaptor chuck Supplied in No kitbox or bag supplied Tool reception SDS-Plus Article Number 4933408320 EAN 4002395239689 Battery pack capacity (Ah) No batteries supplied Battery type Li-ion Charger included No charger supplied Charger supplied No charger supplied No. of batteries supplied 0 Voltage (V) 18 Weight (kg) 3.0 Weight with battery pack (EPTA) (kg) 3.7 (M18 B4) Sound power level (Lwa)(dB(A)) 99 Sound power level uncertainty (dB(A)) 3 Sound pressure level (Lpa)(dB(A)) 88 Sound pressure level uncertainty (dB(A)) 3 Vibration chiseling (m/s²) 8.6 Vibration chiselling uncertainty (m/s²) 1.5 Vibration drilling (m/s²) 9.8 Vibration drilling into concrete (m/s²) 9.8 Vibration drilling into concrete uncertainty (m/s²) 1.5 What's Included 1x M18™ 4-mode SDS-Plus hammer with FIXTEC™ chuck (Model: None)

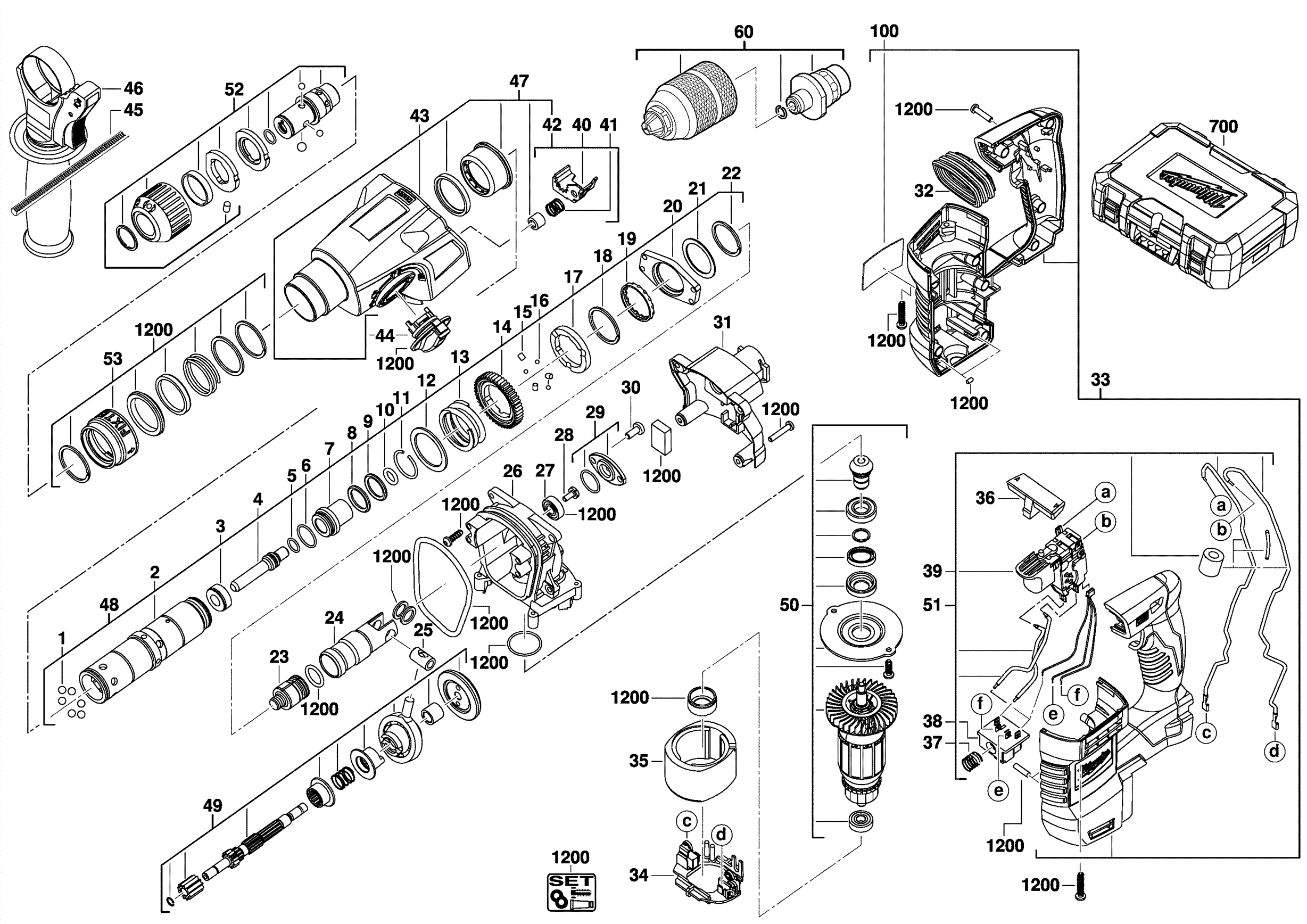

Spare Parts Part Code Description Quantity 201756001 GEAR BOX 1 201758001 SPINDLE 1 201838001 HANDLE PIECE 1 201876001 ADAPTER 1 201877001 PLATE 1 201879001 BEARING END PLATE 1 201881001 SWITCH 1 201895001 CLUTCH CHUCK ASS. 1 290627001 CARBON BRUSH SET 1 304036001 SWITCH 1 304112002 CARRYING CASE 1 304389001 AUXILIARY HANDLE 1 340124001 GEAR BOX 1 4931416290 INSERT 1 4931433267 MAINTENANCE SET 1 4931446591 REDUCT. GEAR SHAFT 1 4931446592 ARMATURE 1 522186001 SLEEVE 1 562594001 O-RING 1 562595001 O-RING 1 562596001 O-RING 1 562597001 O-RING 1 562680001 RUBBER SLEEVE 1 591123001 LEVER 1 591125001 GEAR BOX COVER 1 610727001 CLUTCH 1 611291001 REDUCTION GEAR 1 611405001 BALL 3 620448002 DEPTH GAUGE 1 621198001 SPINDLE SLEEVE 1 633513001 RETAINING PLATE 1 633516001 WASHER 1 633517001 WASHER 1 633518001 WASHER 1 633529001 CIRCLIP 1 641710001 BRACKET 1 661286001 LOCKING SCREW 2 661504001 SCREW 1 672632001 CIRCLIP 1 672634002 CIRCLIP 1 681235001 PIN 3 681383001 BALL BEARING 1 681480001 BEARING 1 681486001 BALL 6 691093001 SPRING 1 692698001 PERCUSSION BODY 1 692717001 CYLINDER 1 692718001 CYLINDER PIN 1 692722001 SLEEVE 1 692723001 SNAP DIE 1 692724001 STOP WASHER 1 692732001 SPRING 1 692735001 SPRING 1 692838001 BEARING 1 741587001 FIELD LEAD GROMMET 1 760465007 SWITCH 1 940488265 RATING PLATE 1
