| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | HD18 H |
| MPN | 4933443468 |
| EAN | 4002395004355 |
| Product Category | Power Tools | Drilling and Chipping | SDS Plus |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Blow energy (EPTA)(J) | 2.4 |
| Kit included | 2 x M18 B4 Battery packs, M12-18 C Charger, Kitbox |
| Max. drilling concrete (mm) | 24 |
| Max. drilling steel (mm) | 13 |
| Max. drilling wood (mm) | 30 |
| Max. percussion rate (bpm) | 4200 |
| No load speed (rpm) | 1400 |
| Standard equipment | Side handle with metal depth gauge |
| Supplied in | Kitbox |
| Tool reception | SDS-Plus |
| Article Number | 4933443468 |
| EAN | 4002395004355 |
| Battery pack capacity (Ah) | 4.0 |
| Battery type | Li-ion |
| Charger included | M12-18 C |
| Charger supplied | 80 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 3.5 (M18 B4) |
| Sound power level (Lwa)(dB(A)) | 99 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 88 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 8.6 |
| Vibration chiselling uncertainty (m/s²) | 1.5 |
| Vibration drilling (m/s²) | 9.8 |
| Vibration drilling into concrete [m|s²] | 9.8 |
| Vibration drilling into concrete uncertainty [m|s²] | 1.5 |
| What's Included | |
|---|---|
|

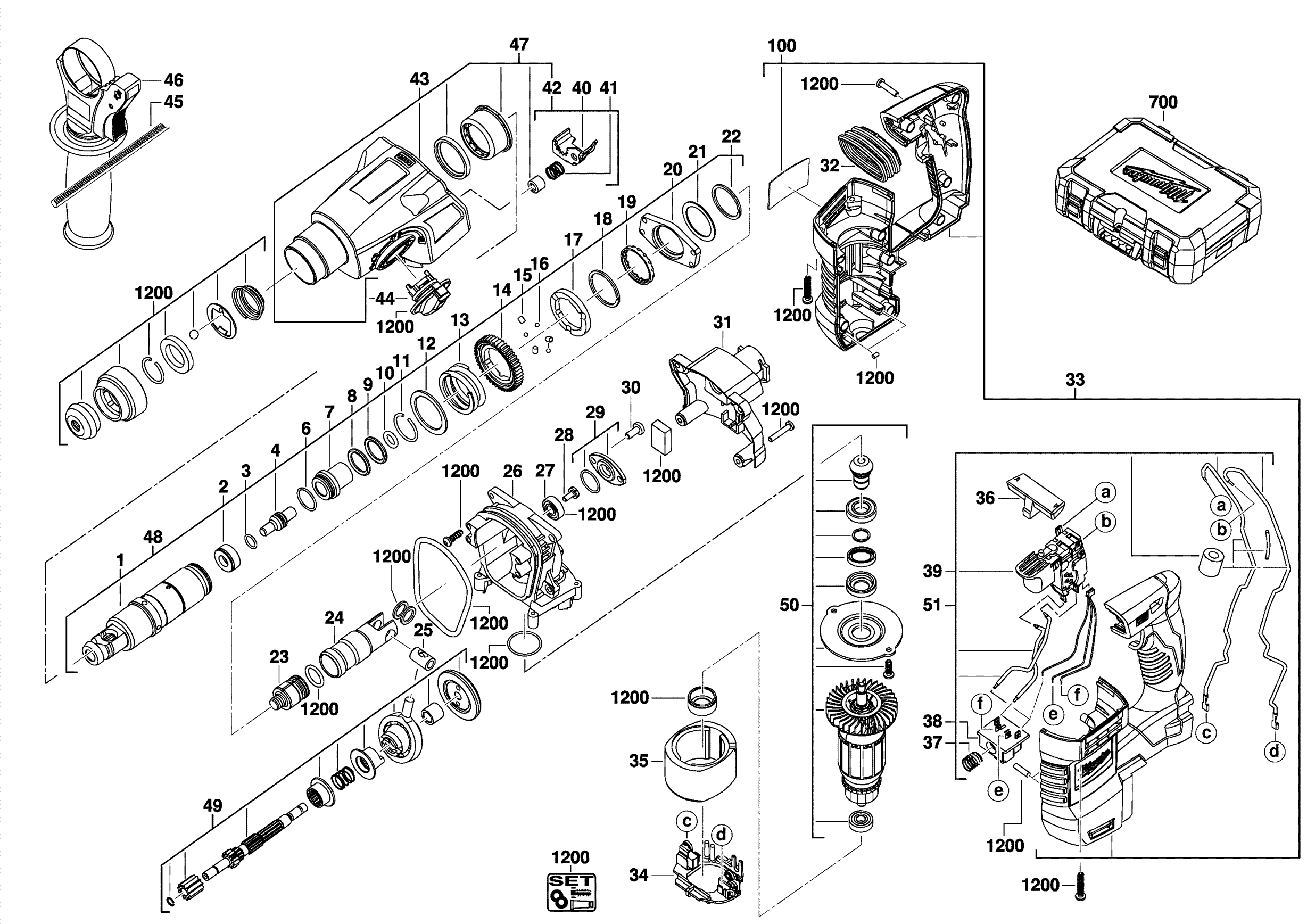

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 201756001 | GEAR BOX | 1 |
| 201836001 | HANDLE PIECE | 1 |
| 201877001 | PLATE | 1 |
| 201878001 | SPINDLE | 1 |
| 201879001 | BEARING END PLATE | 1 |
| 201880001 | MAINTENANCE SET | 1 |
| 201881001 | SWITCH | 1 |
| 290627001 | CARBON BRUSH SET | 1 |
| 304036001 | SWITCH | 1 |
| 304112002 | CARRYING CASE | 1 |
| 304389001 | AUXILIARY HANDLE | 1 |
| 340124001 | GEAR BOX | 1 |
| 4931416290 | INSERT | 1 |
| 4931446543 | SPINDLE | 1 |
| 4931446544 | ARMATURE | 1 |
| 562594001 | O-RING | 1 |
| 562595001 | O-RING | 1 |
| 562596001 | O-RING | 1 |
| 562597001 | O-RING | 1 |
| 562680001 | RUBBER SLEEVE | 1 |
| 591123001 | LEVER | 1 |
| 591125001 | GEAR BOX COVER | 1 |
| 610727001 | CLUTCH | 1 |
| 611291001 | REDUCTION GEAR | 1 |
| 611405001 | BALL | 3 |
| 620448002 | DEPTH GAUGE | 1 |
| 621199001 | SPINDLE SLEEVE | 1 |
| 633513001 | RETAINING PLATE | 1 |
| 633516001 | WASHER | 1 |
| 633517001 | WASHER | 1 |
| 633518001 | WASHER | 1 |
| 633529001 | CIRCLIP | 1 |
| 641710001 | BRACKET | 1 |
| 661286001 | LOCKING SCREW | 2 |
| 661504001 | SCREW | 1 |
| 672632001 | CIRCLIP | 1 |
| 672634002 | CIRCLIP | 1 |
| 681235001 | PIN | 3 |
| 681383001 | BALL BEARING | 1 |
| 681480001 | BEARING | 1 |
| 691093001 | SPRING | 1 |
| 692590001 | ANVIL | 1 |
| 692698001 | PERCUSSION BODY | 1 |
| 692717001 | CYLINDER | 1 |
| 692718001 | CYLINDER PIN | 1 |
| 692722001 | SLEEVE | 1 |
| 692725001 | CORE LIFTER RING | 1 |
| 692732001 | SPRING | 1 |
| 692735001 | SPRING | 1 |
| 692838001 | BEARING | 1 |
| 741587001 | FIELD LEAD GROMMET | 1 |
| 760465007 | SWITCH | 1 |
| 940488264 | RATING PLATE | 1 |
| Battery Included | Yes |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Brand | Milwaukee |
| Chuck Size | TBA |
| Chuck Type | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Maximum Speed | TBA |
| Minimum Speed | TBA |
| Model | HD18 H |
| Motor Type | TBA |
| MPN | 4933443468 |
| Number of Batteries | TBA |
| Number of Pieces | TBA |
| Power Source | TBA |
| Type | SDS Plus |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | 18 |
