Milwaukee DGL 34 Single High Speed 2-handed Die Grinder 4933385110
SKU: SKU250626193500001
EAN: 4002395230020
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | DGL 34 |
| MPN | 4933385110 |
| EAN | 4002395230020 |
| Product Category | Power Tools | Grinding and Polishing | Straight Grinders |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Collet capacity (mm) | 6 |
| Max. grinding pin diameter (mm) | 25 |
| Max. grinding wheel diameter (mm) | 40 |
| No load speed (rpm) | 34,000 |
| Power input (W) | 500 |
| Standard equipment | Spanner SW 17 / SW 15, 4 m cable, collet 6 mm |
| Supplied in | No kitbox or bag supplied |
| Article Number | 4933385110 |
| EAN | 4002395230020 |
| Weight (kg) | 1.8 |
| Sound power level (Lwa)(dB(A)) | 97 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 86 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration grinding (m/s²) | 12 |
| Vibration grinding uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

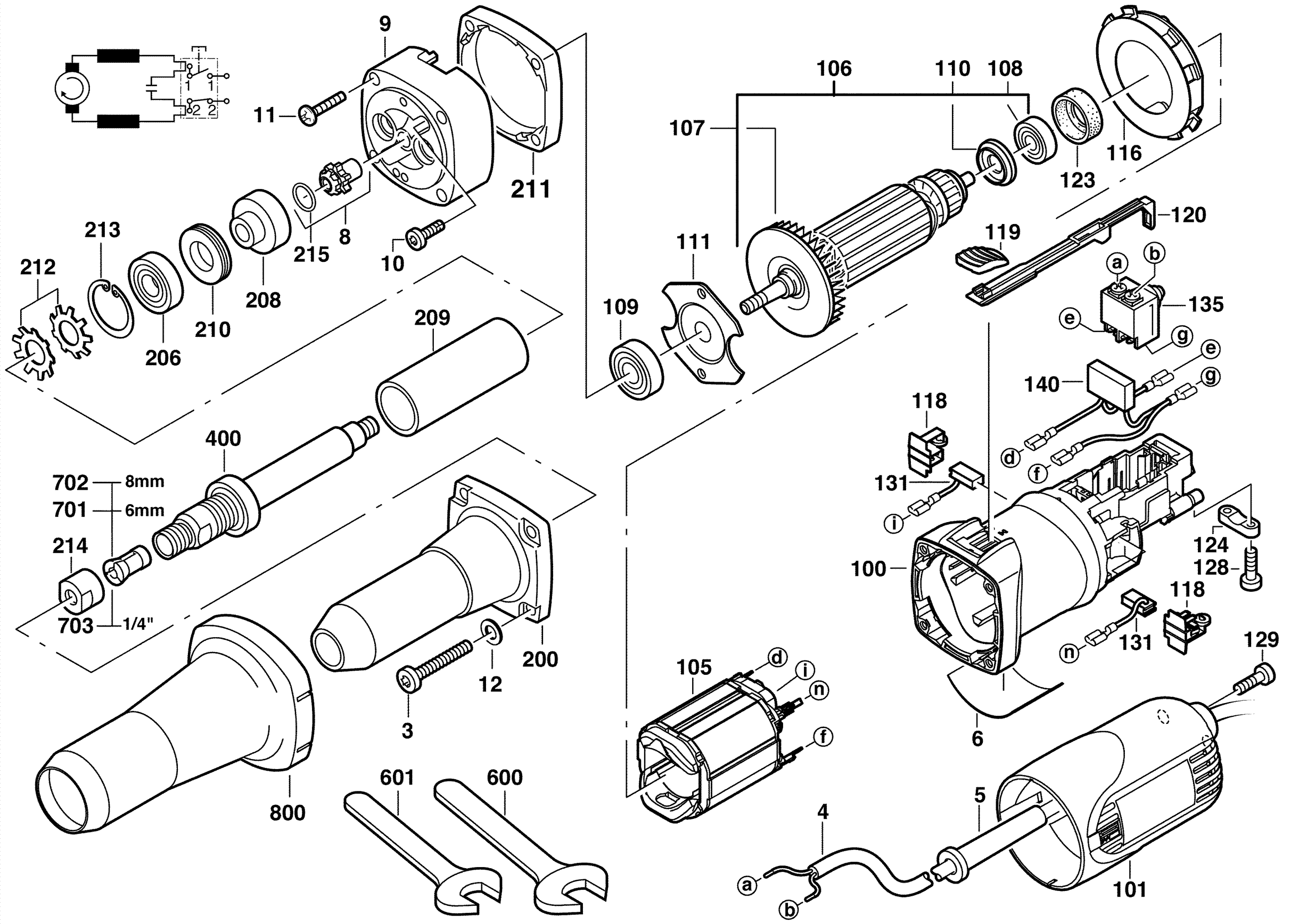

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931206687 | CABLE ENTRY SLEEVE | 1 |
| 4931208217 | DISTANCE SLEEVE | 1 |
| 4931208219 | NUT | 1 |
| 4931220726 | SPRING | 2 |
| 4931256500 | CABLE COLLAR | 1 |
| 4931278544 | NUT | 1 |
| 4931278595 | GRINDING SPINDLE | 1 |
| 4931279578 | COUPLING | 1 |
| 4931279999 | SCREW | 2 |
| 4931317532 | SCREW | 4 |
| 4931351842 | BRUSH HOLDER | 2 |
| 4931351849 | SWITCH | 1 |
| 4931351913 | BEARING COVER | 1 |
| 4931354044 | INTERMEDIATE FLANGE | 1 |
| 4931368333 | GUIDE PIECE | 1 |
| 4931368347 | FAN | 1 |
| 4931368501 | SLIDER | 1 |
| 4931368549 | AIR DEFLECTOR RING | 1 |
| 4931378008 | SLEEVE | 1 |
| 4931385381 | ARMATURE 220-240V 32X48(SUB 4931 426266) | 1 |
| 4931385545 | ELECTRIC FIELD | 1 |
| 4931385658 | INSULATING DISC | 1 |
| 4931391182 | CAPACITOR | 1 |
| 4931391718 | RATING PLATE | 1 |
| 4931392612 | CARBON BRUSH SET | 1 |
| 4931393018 | RUBBER SLEEVE | 1 |
| 4931393152 | CAM | 1 |
| 4931403011 | HOUSING CAP | 1 |
| 4931403204 | MODIFICATION SET | 1 |
| 4931412973 | BEARING CAGE | 1 |
| 4931415131 | BEARING END PLATE | 1 |
| 4931606563 | KEY D894 15 | 1 |
| 4931617414 | SEALING WASHER D 433 4,3 | 4 |
| 4931618253 | SCREW | 2 |
| 4931622399 | SCREW D 7981 3,9X40 | 4 |
| 4931623232 | SEAL RING | 1 |
| 4931624121 | CONNECTION CABLE | 1 |
| 4931624538 | SCREW | 2 |
| 4931804500 | BALL BEARING D 625 6001 ZTH LDS | 1 |
| 4931822228 | KEY D 894 17 | 1 |
| 4931884220 | LOCKING RING | 1 |
| 4931901253 | BALL BEARING | 1 |
| 4931902888 | BALL BEARING | 1 |
| 4932313190 | COLLET OF/E 8MM P1 A/M | 1 |
| 4932313192 | COLLET OF/E 6MM P1 A/M | 1 |
| 4932313194 | COLLET OFS450 6.35MM P1 A/M | 1 |
Specifications
| Action | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Type | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Disc Diameter | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | DGL 34 |
| MPN | 4933385110 |
| Power | TBA |
| Power Source | TBA |
| Type | Straight Grinders |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
