Milwaukee 545S Kango 110V SDS Max Combi Breaker Hammer
SKU: SKU240711170948003
EAN: 4002395234066
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | K 545 S |
| MPN | 4933398280 |
| EAN | 4002395234066 |
| Product Category | Power Tools | Drilling and Chipping | SDS Max |
| Description | |
|---|---|
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| Blow energy [EPTA][J] | 8.5 |
| Full load hammer action (bpm | 2840 |
| Full load speed (soft hammer) (rpm) | 350 |
| Max. drilling core bit (mm) | 100 |
| Max. drilling solid bit (mm) | 45 |
| Max. drilling tunnel bit (mm) | 65 |
| No load speed (rpm) | 450 |
| Power input (W) | 1300 |
| Standard equipment | Auxiliary straight handle, grease |
| Supplied in | Kitbox |
| Tool reception | SDS-Max |
| Article Number 110V | 4933398280 |
| EAN 110V | 4002395234066 |
| Weight (kg) | 6.7 |
| Sound power level (Lwa)(dB(A)) | 109.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 98.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration chiseling (m/s²) | 9 |
| Vibration chiselling uncertainty (m/s²) | 1.9 |
| Vibration drilling (m/s²) | 13 |
| Vibration drilling into concrete (m/s²) | 11.5 |
| Vibration drilling into concrete uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

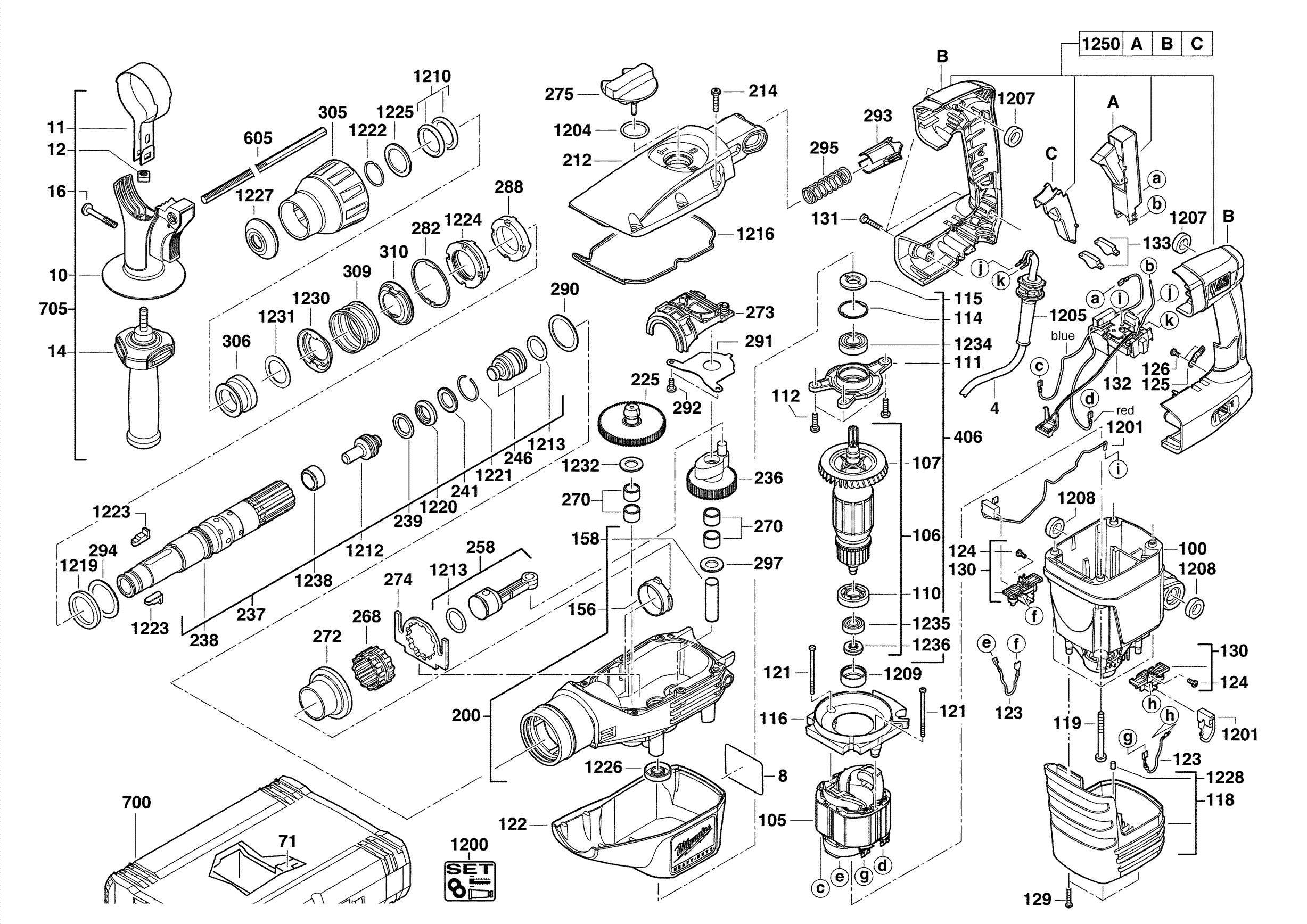

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931256500 | CABLE COLLAR | 1 |
| 4931271824 | HOLDING-DOWN DEVICE | 1 |
| 4931307147 | MAGNETIC DISC | 1 |
| 4931339996 | SCREW | 2 |
| 4931341741 | BALL BEARING | 1 |
| 4931381694 | BRUSH HOLDER | 2 |
| 4931393422 | PROTECTING COVER | 1 |
| 4931398014 | BEARING END PLATE | 1 |
| 4931398026 | SPINDLE | 1 |
| 4931398030 | SPINDLE SLEEVE | 1 |
| 4931398031 | BACK-PRESSURE RING | 1 |
| 4931398032 | DISC | 1 |
| 4931398033 | CORE LIFTER RING | 1 |
| 4931398034 | SEAL RETAINER | 1 |
| 4931398037 | PERCUSSION BODY | 1 |
| 4931398060 | SPINDLE BEVEL GEAR | 1 |
| 4931398064 | RUBBER CAP | 1 |
| 4931398067 | INTERLOCK SLEAVE | 1 |
| 4931398068 | INTERLOCK ELEMENT | 2 |
| 4931398069 | INTERLOCK ELEMENT | 1 |
| 4931398070 | PRESSURE SPRING | 1 |
| 4931398073 | RING | 1 |
| 4931398075 | LOCKING PLATE | 1 |
| 4931398078 | SET COLLAR | 1 |
| 4931398080 | INTERLOCK DISC | 1 |
| 4931398085 | RUBBER SLEEVE | 1 |
| 4931398086 | ELECTRIC FIELD | 1 |
| 4931398091 | THRUST COLLAR | 1 |
| 4931398095 | BEARING | 1 |
| 4931398097 | THRUST PIECE | 1 |
| 4931398099 | PRESSURE SPRING | 1 |
| 4931398101 | SEALING SLEEVE | 2 |
| 4931398105 | DAMPING ELEMENT | 1 |
| 4931398107 | CRANK WHEEL | 1 |
| 4931398114 | LIGHT PIPE | 2 |
| 4931398132 | CARBON BRUSH SET | 1 |
| 4931398134 | STOP WASHER | 1 |
| 4931398154 | ADJUSTING PIECE | 1 |
| 4931398185 | FAN | 1 |
| 4931398188 | ARMATURE | 1 |
| 4931398189 | GROOVED BALL BEAR. | 1 |
| 4931398198 | SEAL RING | 1 |
| 4931398203 | MOTOR HOUSING | 1 |
| 4931398204 | MOTOR CAP | 1 |
| 4931398216 | SLEEVE | 1 |
| 4931398224 | CARRYING CASE | 1 |
| 4931398228 | HANDLE | 1 |
| 4931398232 | MAINTENANCE SET | 1 |
| 4931398253 | HANDLE | 1 |
| 4931398263 | BAND | 1 |
| 4931398266 | DEPTH GAUGE | 1 |
| 4931398267 | NUT | 1 |
| 4931398276 | INSERT | 1 |
| 4931398289 | RATING PLATE | 1 |
| 4931398297 | O-RING (FKM) | 2 |
| 4931398298 | WASHER | 1 |
| 4931398336 | GEAR BOX INSULATION | 1 |
| 4931398508 | DUST SEAL | 1 |
| 4931398539 | SEAL | 1 |
| 4931398574 | ARMATURE | 1 |
| 4931398575 | PROTECTIVE CAP | 1 |
| 4931398578 | SNAP DIE | 1 |
| 4931398592 | MODIFICATION SET | 1 |
| 4931398626 | SWITCH | 1 |
| 4931398658 | LATCH PLATE | 1 |
| 4931398746 | BEARING BOLT | 1 |
| 4931398747 | PISTON COMPL. | 1 |
| 4931398748 | DAMPING ELEMENT | 2 |
| 4931405703 | AIR DEFLECTOR RING | 1 |
| 4931409088 | ELECTRONIC | 1 |
| 4931409529 | GEAR BOX | 1 |
| 4931409531 | GEAR BOX COVER | 1 |
| 4931412344 | WORK STAND | 1 |
| 4931432431 | REPAIR KIT | 1 |
| 4931621847 | NEEDLE BEARING | 4 |
| 4931622166 | O-RING N874701 26X3 | 1 |
| 4931622765 | SCREW N874101-1 SHR C-K5X45/20 KOMBITORX | 1 |
| 4931624236 | SCREW | 2 |
| 4931624263 | WIRE | 2 |
| 4931624440 | SEAL RING | 2 |
| 4931624479 | RING | 1 |
| 4931624495 | SEAL RING | 1 |
| 4931624499 | DISC | 2 |
| 4931624504 | SCREW | 3 |
| 4931624517 | SCREW N874101-1 SHR H-K4X22 T15 | 4 |
| 4931624535 | DISC | 1 |
| 4931624538 | SCREW | 4 |
| 4931624541 | SCREW | 3 |
| 4931624542 | SCREW D7500-1CE M6x60 T30 TAPT 2000 A2F | 4 |
| 4931624555 | SCREW | 6 |
| 4931624586 | WASHER | 1 |
| 4931624590 | CONNECTION CABLE | 1 |
| 4931890311 | LOCKING RING | 1 |
| 9170319040 | SPRING RING | 1 |
Specifications
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | K 545 S |
| MPN | 4933398280 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | SDS Max |
| Unit Quantity | 1 |
| Unit Type | Unit |
