Name: Milwaukee MXF DCD350 DD-0 MX FUEL 350 Mm Diamond Core Drill 4933493146
Brand: Milwaukee
SKU: SKU250626201616004
Availability: InStock

Milwaukee MXF DCD350 DD-0 MX FUEL 350 Mm Diamond Core Drill 4933493146

SKU: SKU250626201616004 EAN: 4058546480172 Milwaukee

Product Description

Glomar Trading - Defining Trade Excellence.

Condition
New: A genuine product, unused and unopened in original packaging.

Main Product Information
Brand	Milwaukee
Model	MXF DCD350
MPN	4933493146
EAN	4058546480172
Product Category	Power Tools \| Drilling and Chipping \| Diamond Drilling

Description

Features

1 ¼″ UNC reception to fit most common cores, with friction plate design allowing for easy core changes
4 speed gearing for a wide range of applications, with laser etched speed and capacity markings into the metal body
Building on the strengths of the FUEL™ technology, MX FUEL™ system reaches new levels of cordless performance. Focused on petrol, corded and pneumatic performance, these tools deliver without the hazards associated with emissions, noise, vibration, tripping hazards and the frustrations of complex maintenance
Can be used with optional vacuum pump on smooth and even surfaces
On-board battery gauge allows the user to monitor battery capacity during entire drilling process
On-board pressure gauge allows user to optimise drilling speed in order to get the best lifetime of machine and accessory
ONE-KEY™ tool tracking & security offers a free of charge cloud-based tracking network and inventory management platform for your tools. ONE-KEY™ also features a remote locking functionality
Rig-mounted diamond coring up to 350 mm diameter. Core with confidence by delivering AC performance
Speed 1: 152 - 350 mm/ Speed 2: 76 - 152 mm/ Speed 3: 51 - 76 mm/ Speed 4: up to 51 mm
Tool-free quick lock connection of the core drill to the drill stand

Specifications
Max. drilling concrete (mm)	350
No load speed (rpm)	0 - 390/ 0 - 850/ 0 - 1650/ 0 - 2200
No load speed gear 1 (rpm)	390
No load speed gear 2 (rpm)	850
No load speed gear 3 (rpm)	1650
No load speed gear 4 [rpm]	2200
Standard equipment	-
Supplied in	No kitbox or bag supplied
Tool reception	1 ¼″ UNC
Article Number	4933493146
EAN	4058546480172
Battery type	Li-ion
Charger included	No charger supplied
No. of batteries supplied	0
Weight with battery pack (EPTA) (kg)	26.4 (MXF HD812)
Sound power level (Lwa)(dB(A))	115.4
Sound power level uncertainty (dB(A))	3
Sound pressure level (Lpa)(dB(A))	102.4
Sound pressure level uncertainty (dB(A))	3

What's Included
1x MX FUEL™ 350 mm diamond core drill and stand (Model: None)

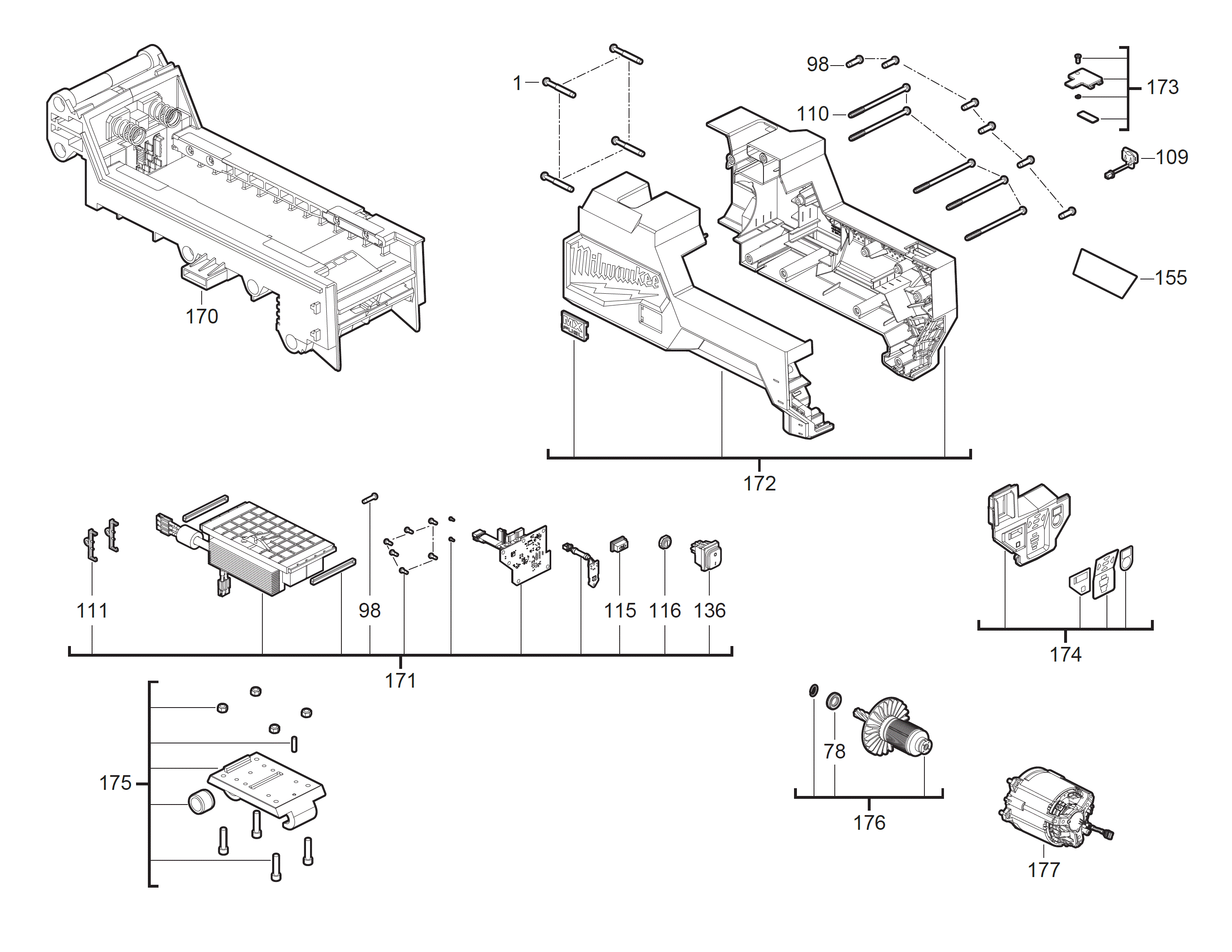

Spare Parts

Part Code	Description	Quantity

2000043211	SEE COMMENT	1
4931453095	SCREW	4
4931453937	PROTECTION WASHER	3
4931465543	SCREW	7
4931472805	SCREW	14
4931472938	CLAMP CLIP	2
4931472941	SCREW	5
4931495756	SEAL RING	2
4931495757	BUSH	1
4931495758	OUTPUT SHAFT KIT	1
4931495759	GEAR	1
4931495760	SEAL	1
4931495761	SEAL RING	1
4931495762	ELECT.CIRCUIT BOARD	1
4931495763	BUTTON	1
4931495764	BUTTON	1
4931495765	GEAR BOX HOUSING	1
4931495766	SWITCH	1
4931495767	TUBE	1
4931495768	RATING PLATE	1
4931495769	GUIDE RAIL SET	1
4931495770	ELECTRONIC	1
4931495771	HOUSING	1
4931495772	COVER	1
4931495773	LABEL	1
4931495774	BRACKET	1
4931495775	ROTOR	1
4931495776	MOTOR	1
4931495777	SEAL	1
4931495778	GEAR BOX HOUSING	1
4931495779	SHAFT	1
4931495780	KNOB	1
4931495781	SEAL	1
4931495782	FIXTURE	1
4931495783	CLUTCH SHAFT	1
4931495784	SHAFT	1
4931495785	INDICATOR LIGHT	1
4931495786	SHAFT	1
4931495787	DIAPHRAGM	1

Specifications

Auxiliary Handle	TBA
Battery Capacity	TBA
Battery Included	No
Battery Technology	Lithium-Ion (Li-Ion)
Brand	Milwaukee
Cable Length	TBA
Charging Time	TBA
Chuck Size	TBA
Chuck Type	TBA
Colour	Red
Country/Region of Manufacture	TBA
Features	TBA
Item Diameter	TBA
Item Height	TBA
Item Length	TBA
Item Weight	TBA
Item Width	TBA
Manufacturer Warranty	TBA
Maximum Torque	TBA
Model	MXF DCD350
Motor Type	TBA
MPN	4933493146
Number of Batteries	TBA
Number of Items in Set	TBA
Power	TBA
Power Source	TBA
Set Includes	TBA
Speed	TBA
Type	Diamond Drilling
Unit Quantity	1
Unit Type	Unit
Voltage	TBA
