Click to enlarge
Milwaukee MXF DCD350 DR Diamond Drilling Stand For MX FUEL 350 Mm Core Drill...
SKU: SKU250626201615003
EAN: 4058546480165
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | MXF DCD350 DR |
| MPN | 4932493145 |
| EAN | 4058546480165 |
| Product Category | Accessories | Drilling | Diamond | Dry Diamond Cores |
| Description | |
|---|---|
| For industry professionals requiring precision and reliability, this Milwaukee MXF DCD350 DR Diamond Drilling Stand remains a top-shelf consideration. Its staunch, UK tradespeople will appreciate the height-adjustable drive handle and readily accessible depth adjustment handle, designed specifically to facilitate easy one-handed operation. Moreover, the stand is enhanced with tool-free machine and watertank attachment, compatible with the M18™ SWITCH TANK™ system, enhancing its usability across various projects. It aligns perfectly with the cordless MXF DCD350 diamond drilling tool to drill holes up to ⌀ 350 mm, meeting high demands associated with heavy-duty applications. Distinctively, this stand extends its versatility with an option to pair with a vacuum pump when operating on smooth and even surfaces. As a glomar product, it provides adjustable sliding blocks for tailor-made application alignment. Additionally, its sizeable wheels ensure seamless transportation on the worksite, enhancing operational efficiency. On top of it all, a nifty quick-lock mechanism provides a tool-free installation of the MX FUEL™ DCD350 motor unit within mere seconds, significantly reducing machine downtime and enhancing productivity on-site. |
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| Article Number | 4932493145 |
| EAN | 4058546480165 |
| What's Included | |
|---|---|
|
| Summary | |
|---|---|
| The Milwaukee MXF DCD350 DR is a steadfast diamond drilling stand suitable for avid professionals engaged in rigorous drilling applications. Whether used for commercial construction projects or individual heavy-duty assignments, its benefits lies in the ability to provide one-handed operation, swift adjustments, and easy transportation on the worksite. The stand includes a Diamond drilling stand for the MX FUEL™ 350 mm diamond core drill, making it a comprehensive solution for construction and repair needs. Its unique blend of efficiency, robustness and transporting ease makes this a grand ally for any tradesperson. |

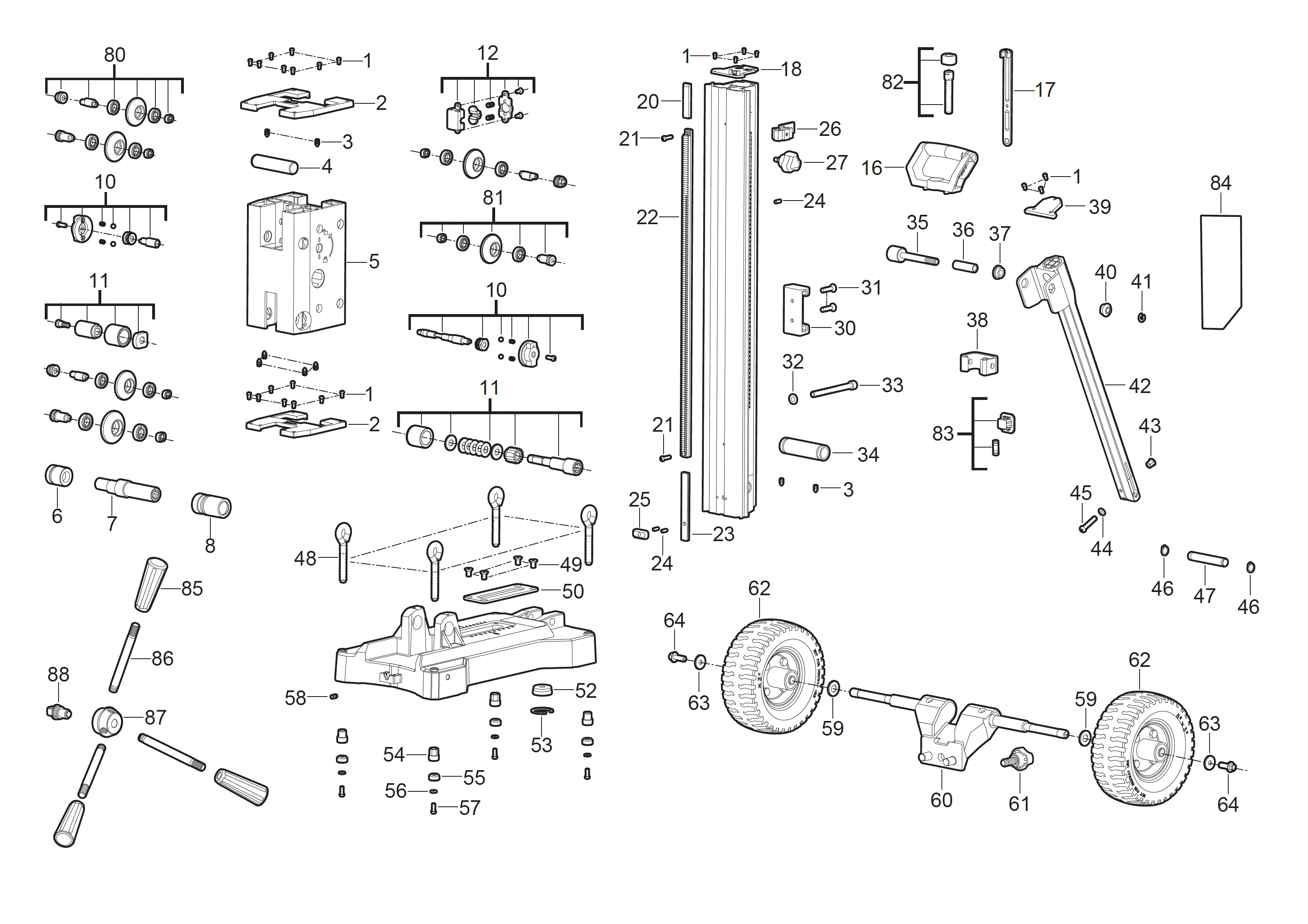

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931435474 | SCREW | 23 |
| 4931436401 | SLEEVE | 1 |
| 4931453039 | WASHER | 1 |
| 4931453043 | WASHER | 4 |
| 4931453136 | SPINDLE LOCK | 1 |
| 4931461511 | SCREW | 2 |
| 4931472710 | SCREW | 4 |
| 4931472785 | SCREW | 8 |
| 4931472804 | PLATE | 1 |
| 4931472805 | SCREW | 2 |
| 4931472808 | PLATE | 1 |
| 4931472809 | HOLDER | 1 |
| 4931472810 | SCREW | 2 |
| 4931472812 | WASHER | 1 |
| 4931472813 | CAP | 1 |
| 4931472815 | NUT | 1 |
| 4931472816 | SCREW | 1 |
| 4931472817 | NUT | 1 |
| 4931472818 | YOKE | 1 |
| 4931472819 | BUSHING | 1 |
| 4931472825 | SCREW | 4 |
| 4931472826 | PLATE | 1 |
| 4931472829 | BUSH | 4 |
| 4931472833 | SNAP RING | 2 |
| 4931495706 | SCREW | 1 |
| 4931495707 | BOLT | 4 |
| 4931495708 | DISTANCE PIECE | 4 |
| 4931495718 | CAP | 2 |
| 4931495719 | PIN | 1 |
| 4931495720 | BODY | 1 |
| 4931495721 | THREADED SLEEVE | 1 |
| 4931495722 | LOCK PIN | 1 |
| 4931495723 | BUSH | 1 |
| 4931495724 | LOCK RELEASE KIT | 1 |
| 4931495725 | PINION SHAFT | 1 |
| 4931495726 | INTERLOCK ELEMENT | 1 |
| 4931495727 | HANDLE | 1 |
| 4931495728 | POINTER | 1 |
| 4931495729 | CAP | 1 |
| 4931495730 | ROD CHOKE | 1 |
| 4931495731 | PIN | 3 |
| 4931495732 | STOPPER | 1 |
| 4931495733 | DEPTH GAUGE | 1 |
| 4931495734 | KNOB | 1 |
| 4931495735 | BOLT | 1 |
| 4931495736 | SLEEVE | 1 |
| 4931495737 | BOLT | 1 |
| 4931495738 | CLAMP | 1 |
| 4931495739 | BRACKET | 1 |
| 4931495740 | PIN | 1 |
| 4931495741 | RETAINING RING | 1 |
| 4931495742 | SPRING | 1 |
| 4931495743 | WASHER | 2 |
| 4931495744 | AXLE | 1 |
| 4931495745 | TURNING KNOB | 1 |
| 4931495746 | WHEEL | 2 |
| 4931495747 | WASHER | 2 |
| 4931495748 | KIT | 4 |
| 4931495749 | KIT | 4 |
| 4931495750 | SET SCREW | 1 |
| 4931495751 | KIT | 1 |
| 4931495752 | RATING PLATE | 1 |
| 4931495753 | KNOB HANDLE | 3 |
| 4931495754 | SHAFT | 3 |
| 4931495755 | HUB | 1 |
Specifications
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | MXF DCD350 DR |
| MPN | 4932493145 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | Dry Diamond Cores |
| Unit Quantity | 1 |
| Unit Type | Unit |
