Milwaukee M18 BJS-402C Top Handle Jigsaw 4933451390
SKU: SKU250626194615001
EAN: 4002395157983
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | M18 BJS |
| MPN | 4933451390 |
| EAN | 4002395157983 |
| Product Category | Power Tools | Sawing and Cutting | Jigsaws |
| Description | |
|---|---|
| Indulge in the durability and efficiency of the Milwaukee M18 BJS-402C, a high-performance, trade quality jigsaw, tailor-made for the serious tradesman under the reputable glomar enterprise. This piece of engineering prowess runs on a remarkable power that delivers a swift cutting speed of 2800 spm, a crucial trait for fast-paced work environments. The superior M18 BJS manifests Milwaukee's dedication to quality and innovation, boasting in-built REDLINK™ overload protection, ensuring absolute safeguarding of both tool and battery pack, thus enhancing the tool's lifespan. Enhancing your work-precision, the FIXTEC™ blade clamp design aids rapid blade changes, while the keyless bevel capability on the base plate permits adjustments range from 0 to 45°. Stay confident with the five-stage pendulum action for amplified cutting performance and an integrated LED light to illuminate your workspace—an invaluable asset during low light conditions or intricate operations. Notably, it also possesses a dust blower to keep your lines of cut wood dust-free, hence improving visibility, and a removable soft shoe that protects soft materials from accidental scratches or markings. Fuelled by the inextinguishable REDLITHIUM™ battery, expect superior construction, and fade-free, lasting performance that ensures higher productivity during the tool's life span. The M18 BJS is compatible with all MILWAUKEE® M18™ batteries, bestowing further flexibility to your collection. |
| Features | |
|---|---|
|
| Specifications | |
|---|---|
| Kit included | 2 x M18 B4 Battery packs, M12-18 C Charger, Kitbox |
| Max. cutting capacity steel (mm) | 10 |
| Max. cutting capacity wood (mm) | 135 |
| No load stroke rate (spm) | 0 - 2800 |
| Standard equipment | non scratch shoe, jigsaw blade, dust guard, dust pipe |
| Stroke length (mm) | 25 |
| Stroke rate (spm) | 2700 |
| Supplied in | Kitbox |
| Article Number 240V | 4933451390 |
| EAN 240V | 4002395157983 |
| Battery pack capacity (Ah) | 4.0 |
| Battery type | Li-ion |
| Charger included | M12-18 C |
| Charger supplied | 80 min |
| No. of batteries supplied | 2 |
| Voltage (V) | 18 |
| Weight with battery pack (EPTA) (kg) | 2.5 (M18 B4) |
| Sound power level (Lwa)(dB(A)) | 96 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 85 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration cutting boards uncertainty [m|s²] | 1.5 |
| Vibration cutting in boards [m|s²] | 6.41 |
| Vibration cutting of sheet meta uncertaintyl [m|s²] | 1.5 |
| Vibration cutting of sheet metal [m|s²] | 4.53 |
| What's Included | |
|---|---|
|
| Summary | |
|---|---|
| The Milwaukee M18 BJS-402C Jigsaw is a robust, feature-packed tool that offers high-speed cutting performance tailor-made for trade professionals. It is ideal for individuals seeking an adaptable, resourceful, and resilient sawing tool. Its range of features such as LED lighting, dust blower and REDLITHIUM™ battery technology extend cutting precision and longevity. Included in the package are the M18™ top handle jigsaw, two M18™ 4.0 Ah batteries, an M12™ - M18™ charger, and a handy kit box. |

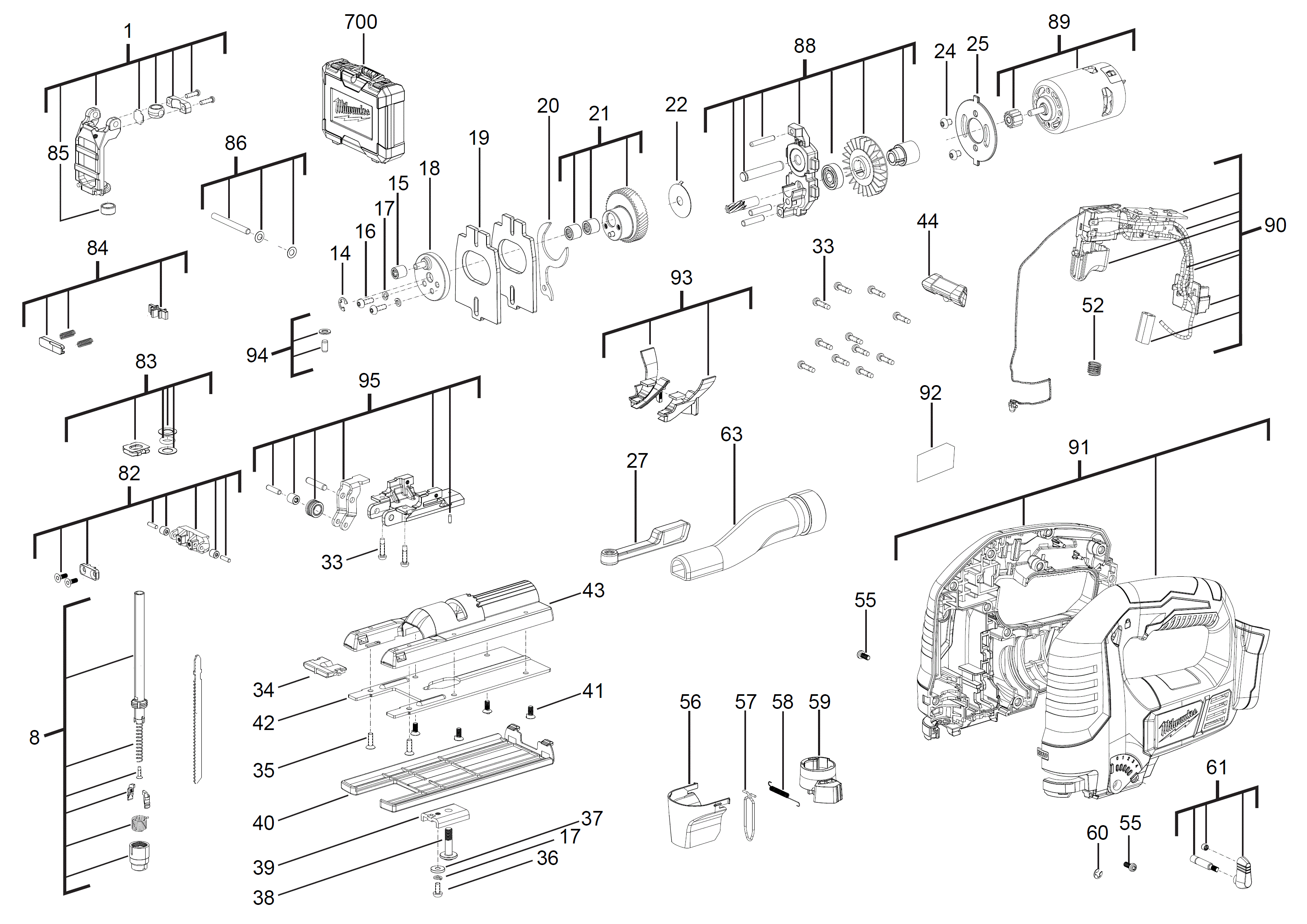

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 2000043211 | SEE COMMENT | 1 |
| 4931408243 | PRESSURE SPRING | 1 |
| 4931431787 | ANT-CHIPPING DEVICE | 1 |
| 4931453100 | SCREW | 1 |
| 4931453302 | SCREW | 2 |
| 4931454297 | GUIDE ELEMENT | 1 |
| 4931454298 | RAM | 1 |
| 4931454299 | RETAINING RING | 1 |
| 4931454300 | BALL BEARING | 1 |
| 4931454301 | SCREW | 2 |
| 4931454302 | WASHER | 3 |
| 4931454303 | EXCENTER | 1 |
| 4931454304 | ECCENTRIC BEARING | 2 |
| 4931454305 | ECCENTRIC DISC | 1 |
| 4931454306 | GEAR BOX ASSY | 1 |
| 4931454307 | WASHER | 1 |
| 4931454308 | SCREW | 2 |
| 4931454309 | MOTOR PLATE | 1 |
| 4931454310 | LEVER | 1 |
| 4931454311 | WASHER | 1 |
| 4931454312 | SCREW | 1 |
| 4931454313 | HOLDING PLATE | 1 |
| 4931454314 | COVER | 1 |
| 4931454315 | SCREW | 4 |
| 4931454316 | BASE PLATE | 1 |
| 4931454317 | BASE PLATE | 1 |
| 4931454318 | PUSH-BUTTON | 1 |
| 4931454319 | COVER | 1 |
| 4931454320 | DISTANCE HOLDER | 1 |
| 4931454321 | SPRING | 1 |
| 4931454322 | LEVER | 1 |
| 4931454323 | RING | 1 |
| 4931454324 | LEVER | 1 |
| 4931454325 | DUST EXTRACTION | 1 |
| 4931454326 | CONNECTION SET | 1 |
| 4931454327 | WASHER PACK/5 | 1 |
| 4931454328 | BACKING PLATE | 1 |
| 4931454329 | BALL BEARING | 1 |
| 4931454330 | WASHER PACK/5 | 1 |
| 4931454331 | FAN | 1 |
| 4931454332 | MOTOR ASSEMBLY | 1 |
| 4931454333 | SWITCH | 1 |
| 4931454334 | HOUSING | 1 |
| 4931454335 | RATING PLATE | 1 |
| 4931454336 | AIR DEFLECTOR RING | 1 |
| 4931454337 | SEAL | 1 |
| 4931454338 | SUPPORT ROLL HOLDER | 1 |
| 4931454339 | CARRYING CASE | 1 |
| 660024030 | SCREW | 13 |
| 660400005 | SCREW | 2 |
Specifications
| Battery Capacity | TBA |
| Battery Included | Yes |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Blade Length | TBA |
| Blade Location | TBA |
| Blade Strength | TBA |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Cutting Angle | TBA |
| Cutting Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | M18 BJS |
| Motor Type | TBA |
| MPN | 4933451390 |
| Number of Batteries | TBA |
| Number of Items in Set | 4 |
| Power Source | TBA |
| Safety Type IP | TBA |
| Set Includes | 2 x M18 B4 Battery packs, M12-18 C Charger, Kitbox |
| Suitable For | TBA |
| Type | Jigsaws |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | 18 |
