Milwaukee MDE 41 Magnetic Drilling Press With Electro Magnet 4933451015
SKU: SKU250626194613001
EAN: 4002395136681
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | MDE 41 |
| MPN | 4933451015 |
| EAN | 4002395136681 |
| Product Category | Power Tools | Drilling and Chipping | Mag Press |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Magn. holding power (at drill point pressure) (N) | 9930 |
| Max. depth broaching capacity (mm) | 50 |
| Max. diameter broaching capacity (mm) | 41 |
| Max. drilling solid bit (mm) | 13 |
| No load speed (rpm) | 475 / 730 |
| Power input (W) | 1200 |
| Standard equipment | Spray can, 13 mm chuck with Weldon adaptor, chuck key, ejector pin, safety strap |
| Supplied in | Kitbox |
| Article Number | 4933451015 |
| EAN | 4002395136681 |
| Weight (kg) | 13.5 |
| Sound power level (Lwa)(dB(A)) | 106 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 95 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 2.17 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

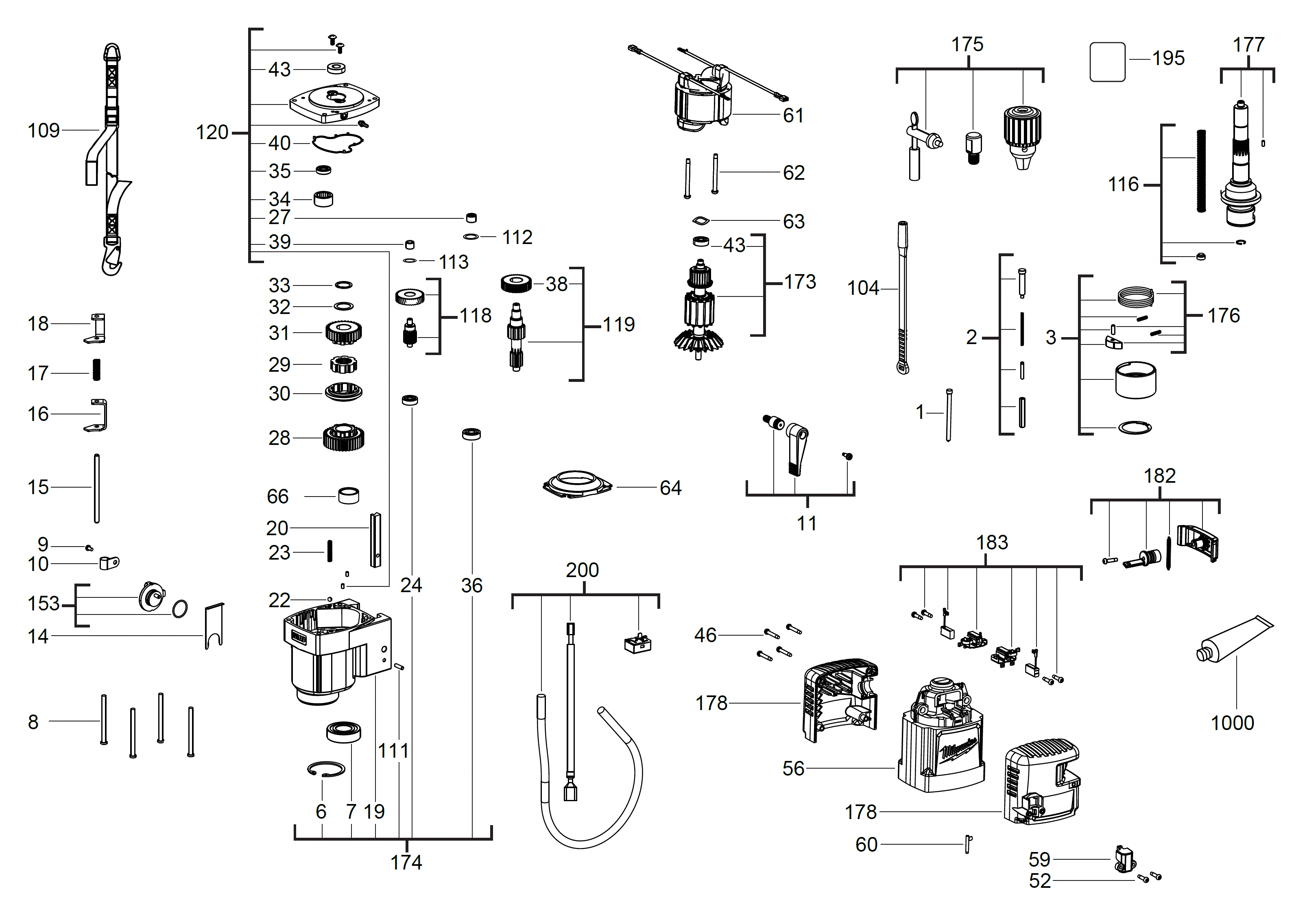

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 02040640 | BALL BEARING | 1 |
| 02502400 | NEEDLE BEARING | 1 |
| 49085270 | GREASE | 1 |
| 4931435627 | SCREW | 3 |
| 4931436769 | SCREW | 4 |
| 4931453092 | CHUCK SHROUD | 1 |
| 4931453093 | RETAINING RING | 1 |
| 4931453094 | BALL BEARING | 1 |
| 4931453097 | RETAINING PLATE | 1 |
| 4931453098 | LOCKING ROD | 1 |
| 4931453099 | CABLE CLAMP | 1 |
| 4931453100 | SCREW | 1 |
| 4931453101 | GUIDE BOLT | 1 |
| 4931453102 | HOLDING BRACKET | 1 |
| 4931453103 | SPRING | 1 |
| 4931453104 | HOLDING BRACKET | 1 |
| 4931453105 | BALL BEARING | 1 |
| 4931453106 | SPRING | 1 |
| 4931453107 | OUTPUT SHAFT KIT | 1 |
| 4931453109 | COUPLING | 1 |
| 4931453110 | HUB | 1 |
| 4931453112 | RETAINING RING | 1 |
| 4931453113 | NEEDLE BEARING | 1 |
| 4931453114 | SEAL | 1 |
| 4931453115 | SEAL | 1 |
| 4931453124 | SCREW | 8 |
| 4931453127 | SCREW | 4 |
| 4931453129 | BIT GUIDE | 1 |
| 4931453130 | BUSHING | 2 |
| 4931453131 | COMPENSATION PLATE | 1 |
| 4931453132 | SCREW | 2 |
| 4931453133 | HANDLE | 1 |
| 4931453136 | SPINDLE LOCK | 1 |
| 4931453137 | OPERATING HANDLE | 3 |
| 4931453138 | SCREW | 4 |
| 4931453140 | TOOTH RACK | 1 |
| 4931453141 | SCREW | 3 |
| 4931453155 | SWITCH | 1 |
| 4931453167 | SCREW | 6 |
| 4931453168 | SWITCH COVER | 1 |
| 4931453171 | SCREW | 2 |
| 4931453172 | CYLINDER PIN | 1 |
| 4931453173 | HOLDING DEVICE | 1 |
| 4931453175 | GEAR BOX KIT | 1 |
| 4931453177 | FEED SPINDLE | 1 |
| 4931453184 | TURNING KNOB | 1 |
| 4931453185 | KIT | 1 |
| 4931453191 | EJECTOR | 1 |
| 4931453192 | BUSHING | 1 |
| 4931453193 | KEY HOLDER | 1 |
| 4931453194 | SAFETY STRAP | 1 |
| 4931453196 | Adjust. washer set | 1 |
| 4931453396 | GUIDE BOLT | 1 |
| 4931453397 | GUIDE BAR | 1 |
| 4931453398 | SCREW | 4 |
| 4931453399 | GEAR BOX | 1 |
| 4931453400 | WORM GEAR WHEEL | 1 |
| 4931453401 | WORM GEAR WHEEL | 1 |
| 4931453402 | BALL BEARING | 1 |
| 4931453403 | WORM GEAR WHEEL | 1 |
| 4931453404 | NEEDLE BEARING | 1 |
| 4931453405 | SCREW | 3 |
| 4931453406 | MOTOR HOUSING | 1 |
| 4931453407 | CLAMP | 2 |
| 4931453408 | PIN | 1 |
| 4931453409 | ELECTRIC FIELD | 1 |
| 4931453410 | SCREW | 2 |
| 4931453411 | WASHER | 1 |
| 4931453412 | AIR DEFLECTOR RING | 1 |
| 4931453413 | SCREW | 2 |
| 4931453415 | CONNECTOR | 1 |
| 4931453417 | CONNECTION CABLE | 1 |
| 4931453418 | CABLE CLAMP | 1 |
| 4931453423 | TANK | 1 |
| 4931453424 | WASHER | 1 |
| 4931453425 | WASHER | 1 |
| 4931453426 | PINION | 1 |
| 4931453427 | PINION | 1 |
| 4931453428 | GEAR BOX COVER | 1 |
| 4931453429 | MAGNET | 1 |
| 4931453430 | MOTOR ASSEMBLY | 1 |
| 4931453431 | GEAR KIT | 1 |
| 4931453433 | SWITCH KIT | 1 |
| 4931453434 | CARBON BRUSH SET | 1 |
| 4931453437 | FOOT | 1 |
| 4931453438 | WIRE | 1 |
| 4931453452 | ELECTRONIC | 1 |
| 4931453455 | SWITCH | 1 |
| 4931453456 | ELECTRIC ELEMENT | 1 |
| 4931453457 | MAG BASE PLATE | 1 |
| 4931453460 | MOTOR HOUSING | 1 |
| 4931453462 | HOUSING | 1 |
| 4931453463 | RATING PLATE | 1 |
| 4931453465 | CARRYING CASE | 1 |
| 4931456260 | CLAMPING LEVER | 1 |
| 49590020 | CHUCK W KEY AND ADAPT.-1PC | 1 |
| 660024030 | SCREW | 4 |
| 680335077 | WASHER 24x17,8x0,8 | 1 |
| 681337001 | BALL BEARING | 2 |
Specifications
| Application | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | MDE 41 |
| MPN | 4933451015 |
| Number of Items in Set | TBA |
| Package Quantity | TBA |
| Suitable For | TBA |
| Type | Mag Press |
| Unit Quantity | 1 |
| Unit Type | Unit |
Manufacturer Information
About
Milwaukee Tool is a heavy-duty power tool, hand tool and accessories manufacturer focused on professional trades, known for cordless innovation and jobsite solutions.
UK Contact
Techtronic Industries (UK) Limited, Suite A, Second Floor, Parkway, Marlow, Bucks, SL7 1YL, England
Product Range
Cordless and corded power tools, hand tools, measuring/instrumentation, accessories (blades, bits, fixings), storage systems (e.g., modular storage), and PPE for professional users.
