Milwaukee AGV 17-180 XC DMS 1750 W Angle Grinder With AVS 4933432270
SKU: SKU250626194519001
EAN: 4002395244003
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | AGV 17 |
| MPN | 4933432270 |
| EAN | 4002395244003 |
| Product Category | Power Tools | Grinding and Polishing | 180mm Grinders |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Anti-kickback protection | Yes |
| AVS Anti-Vibration System | No |
| Brake | No |
| Disc diameter (mm) | 180 |
| Line lock out function | Yes |
| Max. cutting depth (mm) | 58 |
| No load speed (rpm) | 7600 |
| Power input (W) | 1750 |
| Spindle size | M 14 |
| Standard equipment | Quick release safety guard, AVS side handle, FIXTEC™ flange nut, flange nut, 4 m cable |
| Supplied in | No kitbox or bag supplied |
| Switch type | Deadman switch |
| Variable speed | No |
| Article Number | 4933432270 |
| EAN | 4002395244003 |
| Weight (kg) | 3.1 |
| Sound power level (Lwa)(dB(A)) | 97.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 86.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration grinding (m/s²) | 7.4 |
| Vibration grinding uncertainty (m/s²) | 1.5 |
| Vibration sanding (m/s²) | 3 |
| Vibration sanding uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

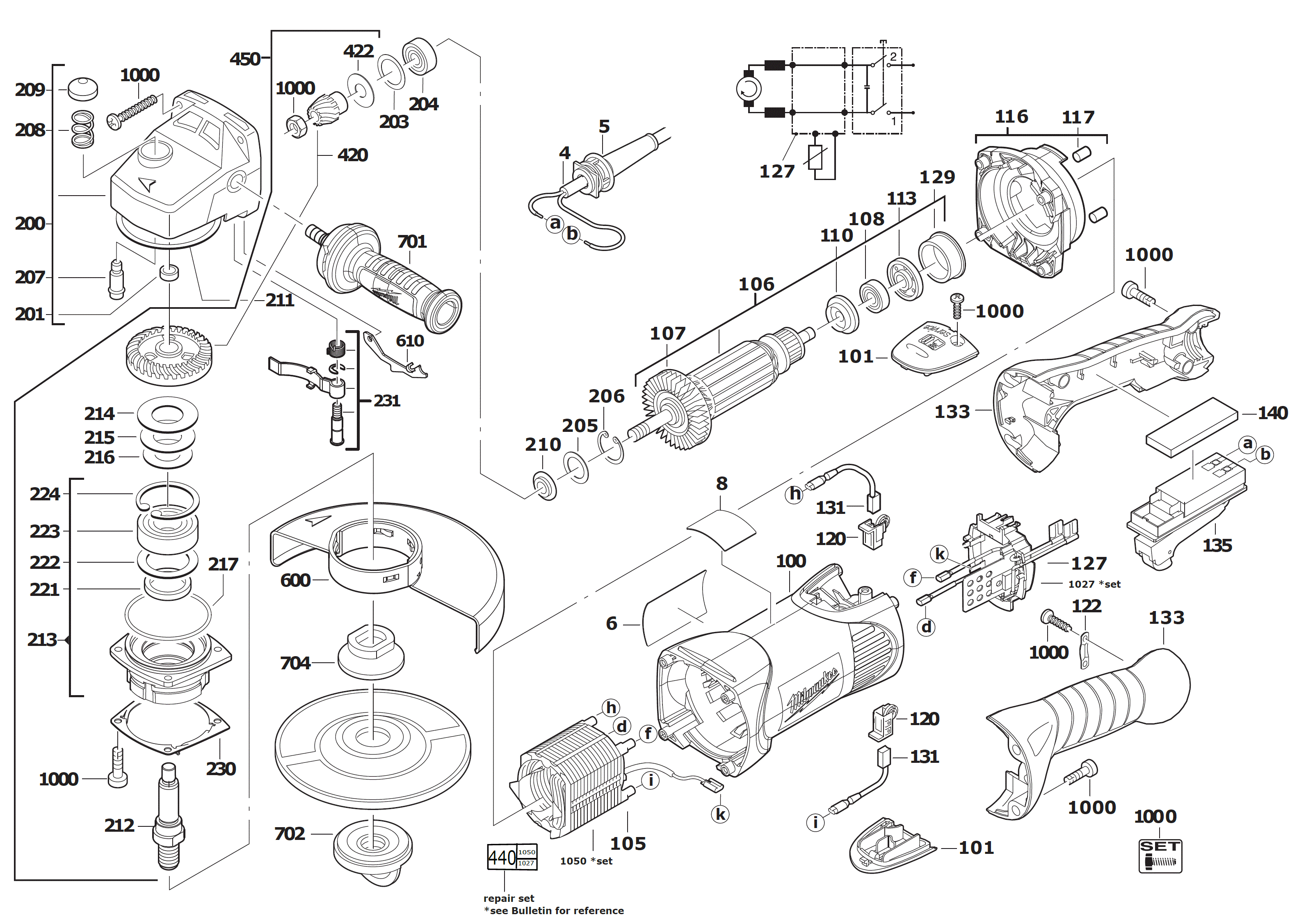

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931254894 | COMPENSATING WASHER | 1 |
| 4931256500 | CABLE COLLAR | 1 |
| 4931271823 | INSULATING DISC | 1 |
| 4931325518 | NUT | 1 |
| 4931326929 | LOCKING BOLT | 1 |
| 4931326930 | PUSH-BUTTON | 1 |
| 4931326942 | PRESSURE SPRING | 1 |
| 4931326953 | BEARING SLEEVE | 1 |
| 4931341088 | FAN | 1 |
| 4931362085 | WASHER | 1 |
| 4931362086 | WASHER | 1 |
| 4931362999 | SPINDLE | 1 |
| 4931368037 | GROOVED BALL BEAR. | 1 |
| 4931378566 | COVER | 2 |
| 4931378762 | HANDLE | 1 |
| 4931378949 | SWITCH | 1 |
| 4931381391 | CARBON BRUSH SET | 1 |
| 4931382268 | BRUSH HOLDER | 2 |
| 4931395204 | AIR DEFLECTOR RING | 1 |
| 4931395289 | PLATE | 1 |
| 4931395290 | GUARD CAP | 1 |
| 4931407029 | BEVEL GEAR PAIR | 1 |
| 4931407067 | GEAR BOX | 1 |
| 4931407142 | BEARING END PLATE | 1 |
| 4931407251 | SEAL | 1 |
| 4931407269 | ADHESIVE LABEL | 1 |
| 4931407605 | LOCKING PIECE | 1 |
| 4931409552 | PROTECTING COVER | 1 |
| 4931409768 | HOLDING-DOWN DEVICE | 1 |
| 4931426009 | DRIVE GEAR | 1 |
| 4931426499 | SPRING PLATE | 1 |
| 4931426553 | ARMATURE | 1 |
| 4931426570 | MAGNETIC DISC | 1 |
| 4931426610 | ELECTRIC FIELD | 1 |
| 4931432242 | ELECTRONIC ELEMENT | 1 |
| 4931432245 | AUXILIARY HANDLE | 1 |
| 4931432246 | MOTOR HOUSING | 1 |
| 4931432260 | CONNECTION SET | 1 |
| 4931432273 | RATING PLATE | 1 |
| 4931463371 | REPAIR KIT | 1 |
| 4931616614 | LOCKING RING | 1 |
| 4931621817 | COMPENSATING WASHER | 1 |
| 4931622761 | DISC | 1 |
| 4931623311 | CONNECTION CABLE | 1 |
| 4931623655 | SEAL RING | 1 |
| 4931623679 | SEAL RING N874701 40X2 | 1 |
| 4931623862 | DISC | 1 |
| 4931623908 | BALL BEARING | 1 |
| 4931624662 | BALL BEARING | 1 |
| 4931808473 | DISC N874237 12,2X22X0,1 | 1 |
| 4931912093 | SLEEVE N874989 HKO 0810 | 1 |
| 4931920048 | LOCKING RING | 1 |
| 4931925940 | DISC N874237 12,2X22X0,2 | 1 |
| 4932263299 | CLAMPING FLANGE WS115-230 P1 A/M | 1 |
| 4932358225 | FIXTEC NUT M14 P1A | 1 |
Specifications
| Action | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Type | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Disc Diameter | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | AGV 17 |
| MPN | 4933432270 |
| Power | TBA |
| Power Source | TBA |
| Type | 180mm Grinders |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
