Milwaukee AGV 17-125 XE 1750 W Angle Grinder With AVS 4933432230
SKU: SKU250626194518003
EAN: 4002395243983
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | AGV 17 |
| MPN | 4933432230 |
| EAN | 4002395243983 |
| Product Category | Power Tools | Grinding and Polishing | 180mm Grinders |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Anti-kickback protection | Yes |
| AVS Anti-Vibration System | No |
| Brake | No |
| Disc diameter (mm) | 125 |
| Line lock out function | Yes |
| Max. cutting depth (mm) | 33 |
| No load speed (rpm) | 2600 - 11,000 |
| Power input (W) | 1750 |
| Spindle size | M 14 |
| Standard equipment | Quick release safety guard, AVS side handle, FIXTEC™ flange nut, flange nut, 4 m cable |
| Supplied in | No kitbox or bag supplied |
| Switch type | Trigger lock-on switch |
| Variable speed | Yes |
| Article Number | 4933432230 |
| EAN | 4002395243983 |
| Weight (kg) | 2.8 |
| Sound power level (Lwa)(dB(A)) | 97.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 86.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration grinding (m/s²) | 9.4 |
| Vibration grinding uncertainty (m/s²) | 1.5 |
| Vibration sanding (m/s²) | 3 |
| Vibration sanding uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

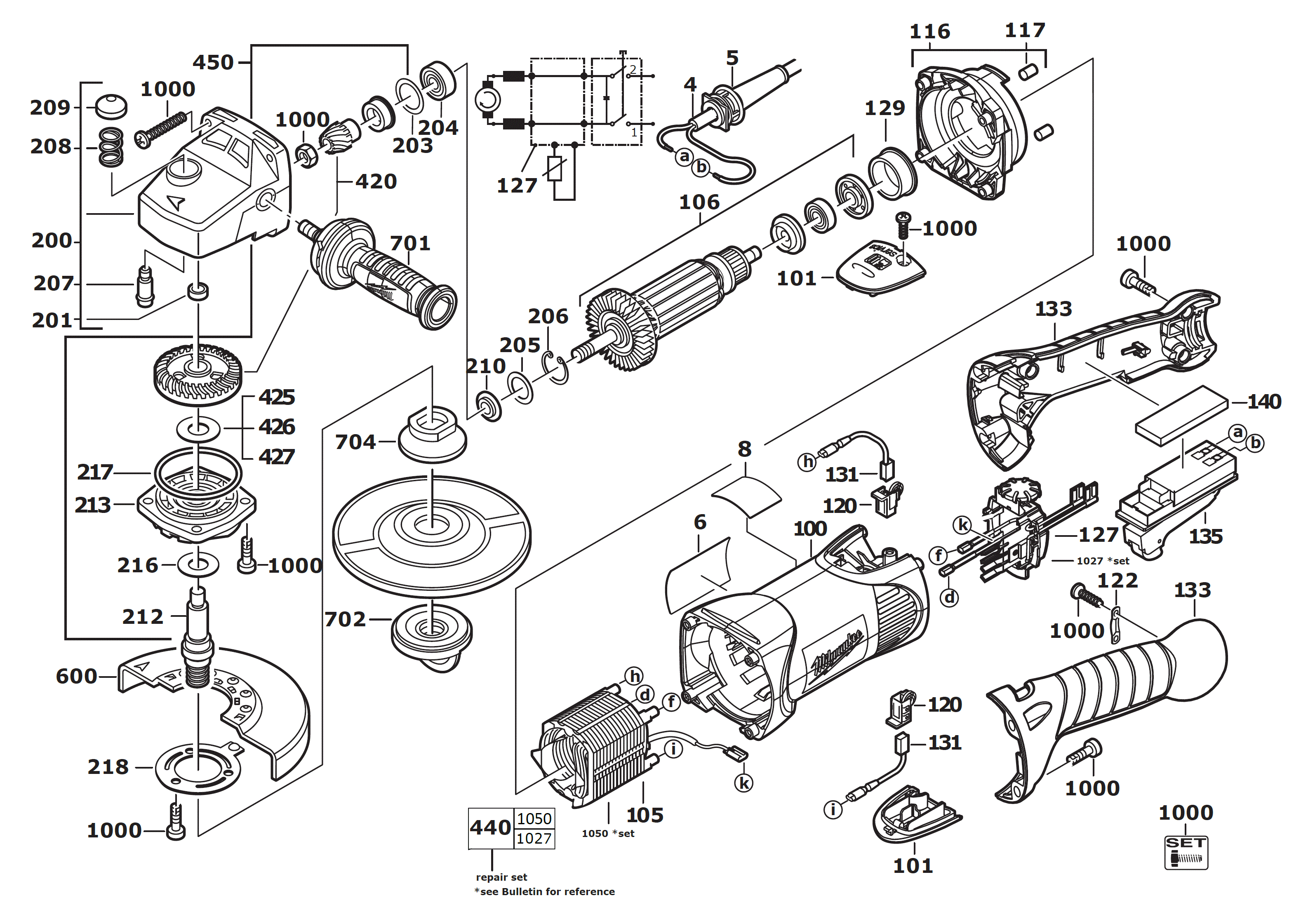

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931256500 | CABLE COLLAR | 1 |
| 4931326929 | LOCKING BOLT | 1 |
| 4931326930 | PUSH-BUTTON | 1 |
| 4931326942 | PRESSURE SPRING | 1 |
| 4931326953 | BEARING SLEEVE | 1 |
| 4931345965 | SPRING WASHER | 1 |
| 4931362085 | WASHER | 1 |
| 4931368037 | GROOVED BALL BEAR. | 1 |
| 4931369937 | BEVEL GEAR PAIR | 1 |
| 4931378310 | BEARING END PLATE | 1 |
| 4931378566 | COVER | 2 |
| 4931378765 | HANDLE | 1 |
| 4931378983 | SWITCH | 1 |
| 4931381391 | CARBON BRUSH SET | 1 |
| 4931382268 | BRUSH HOLDER | 2 |
| 4931391476 | DRIVE GEAR | 1 |
| 4931395204 | AIR DEFLECTOR RING | 1 |
| 4931407251 | SEAL | 1 |
| 4931407269 | ADHESIVE LABEL | 1 |
| 4931407642 | GUARD CAP | 1 |
| 4931409552 | PROTECTING COVER | 1 |
| 4931409768 | HOLDING-DOWN DEVICE | 2 |
| 4931409808 | SPINDLE | 1 |
| 4931412193 | GEAR BOX | 1 |
| 4931426610 | ELECTRIC FIELD | 1 |
| 4931432220 | ARMATURE ASSEMBLY | 1 |
| 4931432241 | ELECTRONIC ELEMENT | 1 |
| 4931432245 | AUXILIARY HANDLE | 1 |
| 4931432246 | MOTOR HOUSING | 1 |
| 4931432260 | CONNECTION SET | 1 |
| 4931449069 | RATING PLATE | 1 |
| 4931463373 | REPAIR KIT | 1 |
| 4931616614 | LOCKING RING | 1 |
| 4931622761 | DISC | 1 |
| 4931623311 | CONNECTION CABLE | 1 |
| 4931623480 | DISC | 1 |
| 4931623590 | SEAL RING | 1 |
| 4931624256 | DISC | 1 |
| 4931624287 | WASHER | 1 |
| 4931808473 | DISC N874237 12,2X22X0,1 | 1 |
| 4931912093 | SLEEVE N874989 HKO 0810 | 1 |
| 4931925940 | DISC N874237 12,2X22X0,2 | 1 |
| 4932263299 | CLAMPING FLANGE WS115-230 P1 A/M | 1 |
| 4932352473 | FIXTEC NUT P1 | 1 |
Specifications
| Action | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Type | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Disc Diameter | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | AGV 17 |
| MPN | 4933432230 |
| Power | TBA |
| Power Source | TBA |
| Type | 180mm Grinders |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
