Milwaukee JSPE 135 TX Heavy Duty Top Handle Jigsaw 4933381230
SKU: SKU250626193502003
EAN: 4002395232529
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | JSPE 135 |
| MPN | 4933381230 |
| EAN | 4002395232529 |
| Product Category | Power Tools | Sawing and Cutting | Jigsaws |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Max. cutting capacity aluminium (mm) | 30 |
| Max. cutting capacity steel (mm) | 10 |
| Max. cutting capacity wood (mm) | 135 |
| Max. cutting capacity wood/ steel/ aluminium (mm) | 135/ 10/ 30 |
| Mitre capacity (°) | 45 |
| No load stroke rate (spm) | 800 - 3000 |
| Power input (W) | 750 |
| Standard equipment | 4 m cable, 5 saw blades, anti-splintering device, sliding shoe, dust cup, absorption adaptor |
| Stroke length (mm) | 26 |
| Supplied in | Kitbox |
| Article Number | 4933381230 |
| EAN | 4002395232529 |
| Weight (kg) | 2.5 |
| Sound power level (Lwa)(dB(A)) | 99 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 88 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration cutting metal (m/s²) | 6 |
| Vibration cutting metal uncertainty (m/s²) | 1.5 |
| Vibration cutting wood (m/s²) | 6.5 |
| Vibration cutting wood uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

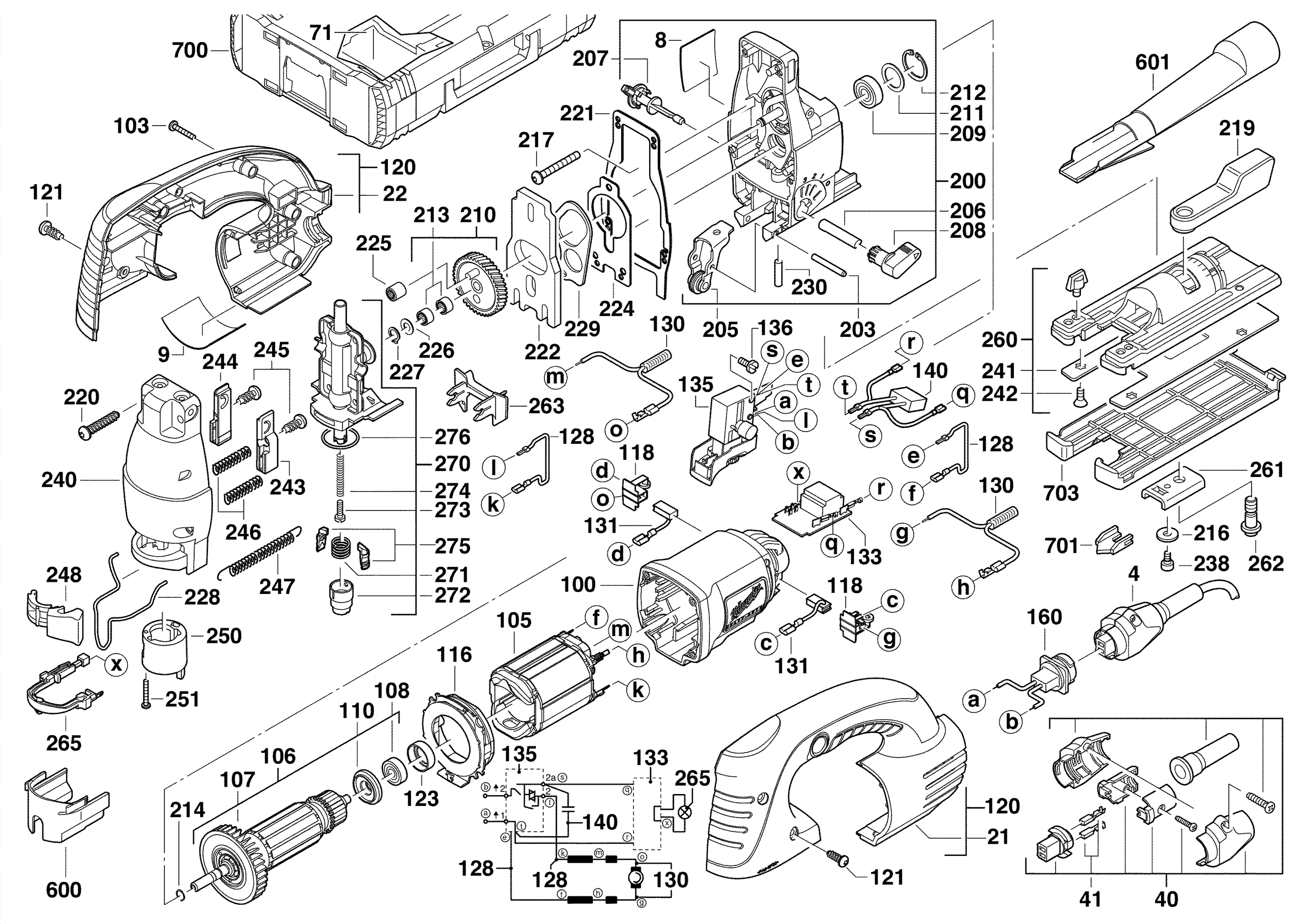

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931219422 | NEEDLE BEARING | 2 |
| 4931253752 | WIRE | 2 |
| 4931300699 | SCREW | 1 |
| 4931310396 | SCREW | 4 |
| 4931317532 | SCREW | 2 |
| 4931330051 | HOLDER | 1 |
| 4931330303 | CENTERING JAW | 2 |
| 4931330424 | TORSION SPRING | 1 |
| 4931330453 | TENSION SPRING | 1 |
| 4931330494 | COLLET | 1 |
| 4931341759 | PRESSURE SPRING | 2 |
| 4931357515 | GEAR | 1 |
| 4931357522 | ROCKER BAR | 1 |
| 4931357577 | SHIM | 1 |
| 4931357588 | PRESSURE ELEMENT | 1 |
| 4931357605 | SLIDE PLATE | 1 |
| 4931357686 | PRESSURE SPRING | 1 |
| 4931357693 | RAM | 1 |
| 4931357982 | WIRE STRAP | 1 |
| 4931357983 | SUCTION SLEEVE | 1 |
| 4931357985 | BEARING CAGE | 1 |
| 4931357986 | BEARING CAGE | 1 |
| 4931357987 | DUST CAP | 1 |
| 4931361376 | NEEDLE BUSH | 1 |
| 4931368347 | FAN | 1 |
| 4931368374 | RUBBER SLEEVE | 1 |
| 4931368633 | BRUSH HOLDER | 2 |
| 4931368649 | AIR DEFLECTOR RING | 1 |
| 4931369504 | CHOKING COIL | 2 |
| 4931378505 | INSERT | 1 |
| 4931378812 | SWITCH HANDLE | 1 |
| 4931380758 | REPAIR KIT | 1 |
| 4931380763 | Cable socket p./10 | 1 |
| 4931381086 | ARMATURE | 1 |
| 4931381103 | INDEXING BOLT | 1 |
| 4931381109 | BALANCE WEIGHT | 1 |
| 4931381112 | CYLINDER PIN | 1 |
| 4931381124 | SCREW | 1 |
| 4931381146 | ELECTRIC FIELD | 1 |
| 4931381156 | SWITCH | 1 |
| 4931381158 | INDEXING SLEEVE | 1 |
| 4931381159 | SWITCH LEVER | 1 |
| 4931381227 | PAIR HANDLE SHELLS | 1 |
| 4931381333 | MOTOR HOUSING | 1 |
| 4931381340 | SWITCH | 1 |
| 4931381351 | RATING PLATE | 1 |
| 4931381603 | HOLDER | 1 |
| 4931381609 | TENSION LEVER | 1 |
| 4931381623 | GROUND PLATE | 1 |
| 4931381628 | PRINTED CIRC. BOARD | 1 |
| 4931381638 | COVER | 1 |
| 4931381649 | PLUG | 1 |
| 4931381654 | CAPACITOR | 1 |
| 4931381656 | SEAL | 1 |
| 4931381659 | SAW TABLE | 1 |
| 4931381666 | CARBON BRUSH SET | 1 |
| 4931385658 | INSULATING DISC | 1 |
| 4931412827 | GROUND PLATE | 1 |
| 4931412831 | GEAR BOX | 1 |
| 4931412834 | GEAR BOX COVER | 1 |
| 4931605092 | RING D471 6X0,7 | 1 |
| 4931613683 | LOCKING RING D 472 22X1 | 1 |
| 4931618253 | SCREW | 4 |
| 4931621515 | SCREW D 7981 3,9X32 | 4 |
| 4931621772 | SCREW | 2 |
| 4931621828 | LOCKING RING D 471 7X0,8 | 1 |
| 4931621830 | DISC N874237 6,1X12X0,5 | 1 |
| 4931621942 | PIN D 6325 4 M6X32 | 1 |
| 4931622131 | DISC | 1 |
| 4931623020 | SCREW | 4 |
| 4931623048 | SCREW | 4 |
| 4931623091 | SEAL RING | 1 |
| 4931623102 | SCREW | 1 |
| 4931624171 | CONNECTION CABLE IN2 | 1 |
| 4931624172 | SCREW | 1 |
| 4931803914 | SEALING WASHER 21,8X15,8X0,2 | 1 |
| 4931901253 | BALL BEARING | 1 |
| 4931902888 | BALL BEARING | 1 |
| 4932357682 | ANT-CHIPPING DEVICE (3 PCS) P1 A/M | 1 |
| 4932357881 | GUIDE SHOE JSPE90X P1 A/M | 1 |
| 4932378986 | CARRYING CASE WITH FOAM INSERT MET | 1 |
Specifications
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Blade Length | TBA |
| Blade Location | TBA |
| Blade Strength | TBA |
| Brand | Milwaukee |
| Cable Length | TBA |
| Charging Time | TBA |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Cutting Angle | TBA |
| Cutting Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | JSPE 135 |
| Motor Type | TBA |
| MPN | 4933381230 |
| Number of Batteries | TBA |
| Number of Items in Set | TBA |
| Power Source | TBA |
| Safety Type IP | TBA |
| Set Includes | TBA |
| Suitable For | TBA |
| Type | Jigsaws |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
