Milwaukee SCS 65 Q 190 Mm Circular Saw DOC) 638051
SKU: SKU250626193501003
EAN: 4002395229529
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | SCS 65 Q |
| MPN | 638051 |
| EAN | 4002395229529 |
| Product Category | Power Tools | Sawing and Cutting | Circular Saws |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Bevel capacity (°) | 0 - 45 |
| Blade diameter (mm) | 190 |
| Bore size (mm) | 30 |
| Max. cutting depth 45° (mm) | 52 |
| Max.cutting depth 90° (mm) | 65 |
| No load speed (rpm) | 5800 |
| Power input (W) | 1900 |
| Standard equipment | 4 m QUIK-LOK™ cable, carbide tipped 20 tooth saw blade, parallel guide, spanner |
| Supplied in | Kitbox |
| Article Number | 638051 |
| EAN | 4002395229529 |
| Weight (kg) | 5.5 |
| Sound power level (Lwa)(dB(A)) | 104 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 93 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 3.1 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

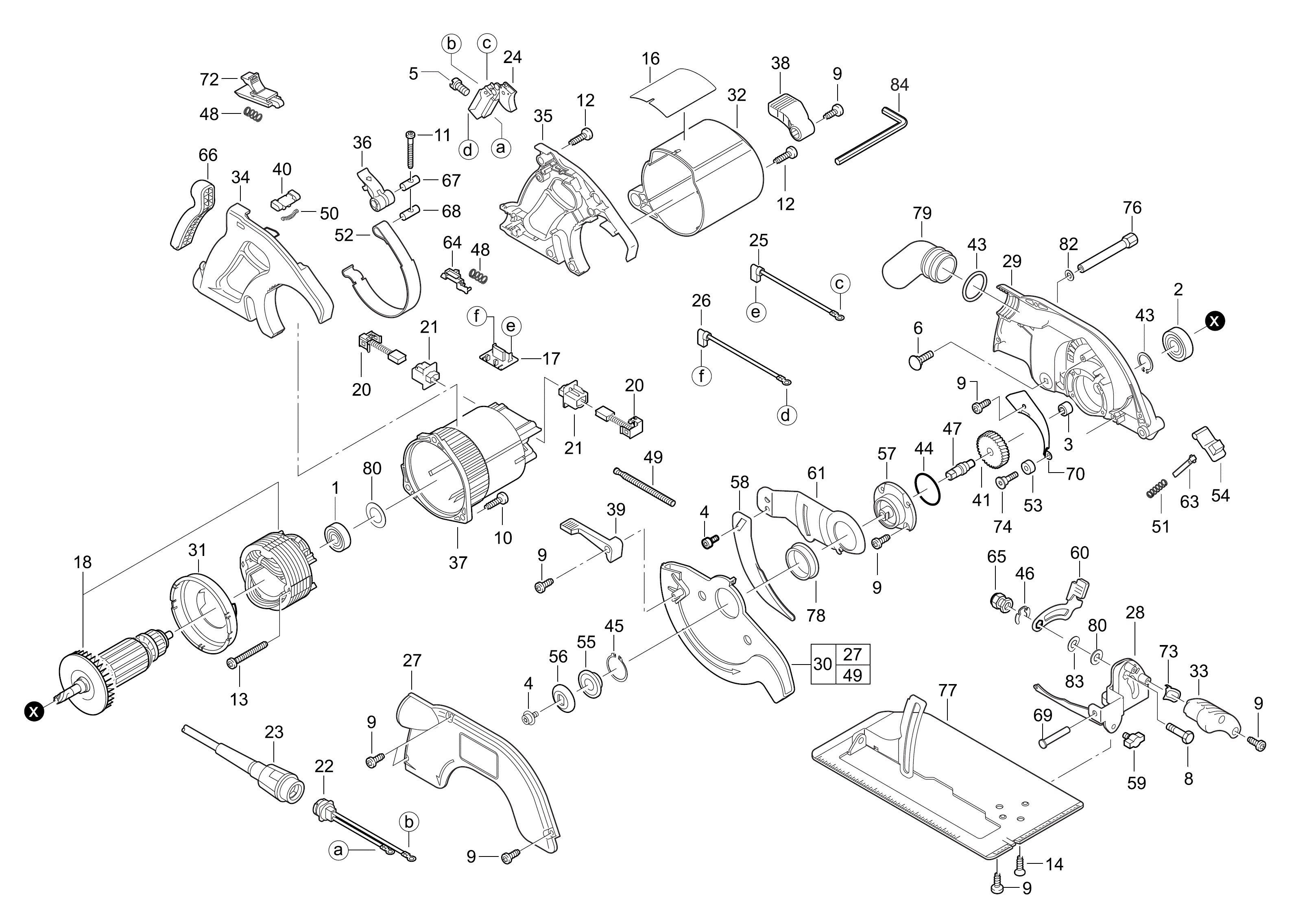

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 02040847 | BALL BEARING | 1 |
| 02041850 | BALL BEARING | 1 |
| 02502423 | BALL BEARING | 1 |
| 05780305 | SCREW | 4 |
| 05890055 | SCREW | 2 |
| 06100710 | BOLT | 1 |
| 06755850 | BOLT | 1 |
| 06825314 | SCREW TORX SCREW | 13 |
| 06827270 | SCREW | 10 |
| 06828875 | SCREW | 3 |
| 1000063920 | PART NOT DEATAILED | 1 |
| 12996380 | TYPE PLATE | 1 |
| 14201325 | CAPACITOR | 1 |
| 14320135 | GUARD CAP | 1 |
| 14670260 | BRACKET | 1 |
| 16740060 | ARMATURE | 1 |
| 22180085 | CARBON BRUSH | 2 |
| 22220030 | BRUSH HOLDER | 2 |
| 22560857 | CONNECTION SLEEVE | 1 |
| 23662117 | SWITCH | 1 |
| 23941180 | CABLE | 1 |
| 23941185 | CABLE | 1 |
| 28140110 | GEAR BOX | 1 |
| 31050045 | AIR DEFLECTOR RING | 1 |
| 31150461 | COVER | 1 |
| 31440060 | HANDLE | 1 |
| 31440083 | HANDLE RIGHT | 1 |
| 31440093 | HANDLE LEFT | 1 |
| 31442157 | HANDLE | 1 |
| 31500050 | HOUSING | 1 |
| 31520015 | STOP | 1 |
| 31520025 | STOP | 1 |
| 31760016 | DRIVER | 1 |
| 32753205 | GEAR | 1 |
| 34401375 | O-RING | 2 |
| 34401380 | O-RING | 1 |
| 34600320 | THRUST COLLAR | 1 |
| 34602330 | RING | 1 |
| 38500065 | SPINDLE | 1 |
| 40500055 | SPRING | 2 |
| 40500270 | SPRING | 1 |
| 40508040 | PRESSURE SPRING | 1 |
| 42160160 | HANDLE | 1 |
| 42380222 | GUARD | 1 |
| 42420275 | SPINDLE | 1 |
| 43340480 | FLANGE | 1 |
| 43340485 | FLANGE | 1 |
| 43780155 | BEARING HOUSING | 1 |
| 43970075 | KNIFE | 1 |
| 43980615 | KNOB | 1 |
| 44100130 | LEVER | 1 |
| 44140225 | PLATE | 1 |
| 44200510 | SPINDLE | 1 |
| 44200640 | SLIDE | 1 |
| 44400780 | ADJUSTING NUT | 1 |
| 44520682 | HANDLE | 1 |
| 44600075 | PIN | 1 |
| 44600085 | PIN | 1 |
| 44601180 | PIN | 1 |
| 44660075 | LATCH PLATE | 1 |
| 44660201 | PLATE | 1 |
| 44720050 | POINTER | 1 |
| 45040485 | SCREW | 1 |
| 45080415 | SHAFT | 1 |
| 45160165 | STOP | 1 |
| 45220605 | SLEEVE | 1 |
| 45760331 | TUBE | 1 |
| 45880577 | WASHER | 2 |
| 45881545 | WASHER | 1 |
| 45888460 | WASHER | 1 |
| 4931624171 | CONNECTION CABLE IN2 | 1 |
| 4931624181 | CONNECTION CABLE Swiss | 1 |
| 4931624184 | CONNECTION CABLE GB2 | 1 |
| 4931624342 | CONNECTION CABLE AUS NZ | 1 |
| 49960345 | WRENCH CHAIN | 1 |
Specifications
| Blade Diameter | TBA |
| Blade Material | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material Cut | TBA |
| Model | SCS 65 Q |
| MPN | 638051 |
| Number of Teeth | TBA |
| Package Quantity | TBA |
| Teeth per Inch | TBA |
| Type | Circular Saws |
| Unit Quantity | 1 |
| Unit Type | Unit |
Manufacturer Information
About
Milwaukee Tool is a heavy-duty power tool, hand tool and accessories manufacturer focused on professional trades, known for cordless innovation and jobsite solutions.
UK Contact
Techtronic Industries (UK) Limited, Suite A, Second Floor, Parkway, Marlow, Bucks, SL7 1YL, England
Product Range
Cordless and corded power tools, hand tools, measuring/instrumentation, accessories (blades, bits, fixings), storage systems (e.g., modular storage), and PPE for professional users.
