Milwaukee CS 60 184 Mm Circular Saw (61 DOC) 4933419225
SKU: SKU250626193501002
EAN: 4002395238361
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | CS 60 |
| MPN | 4933419225 |
| EAN | 4002395238361 |
| Product Category | Power Tools | Sawing and Cutting | Circular Saws |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Bevel capacity (°) | 0 - 56 |
| Blade diameter (mm) | 184 |
| Bore size (mm) | 30 |
| Max. cutting depth 45° (mm) | 49 |
| Max.cutting depth 90° (mm) | 61 |
| No load speed (rpm) | 5800 |
| Power input (W) | 1600 |
| Power output (W) | 765 |

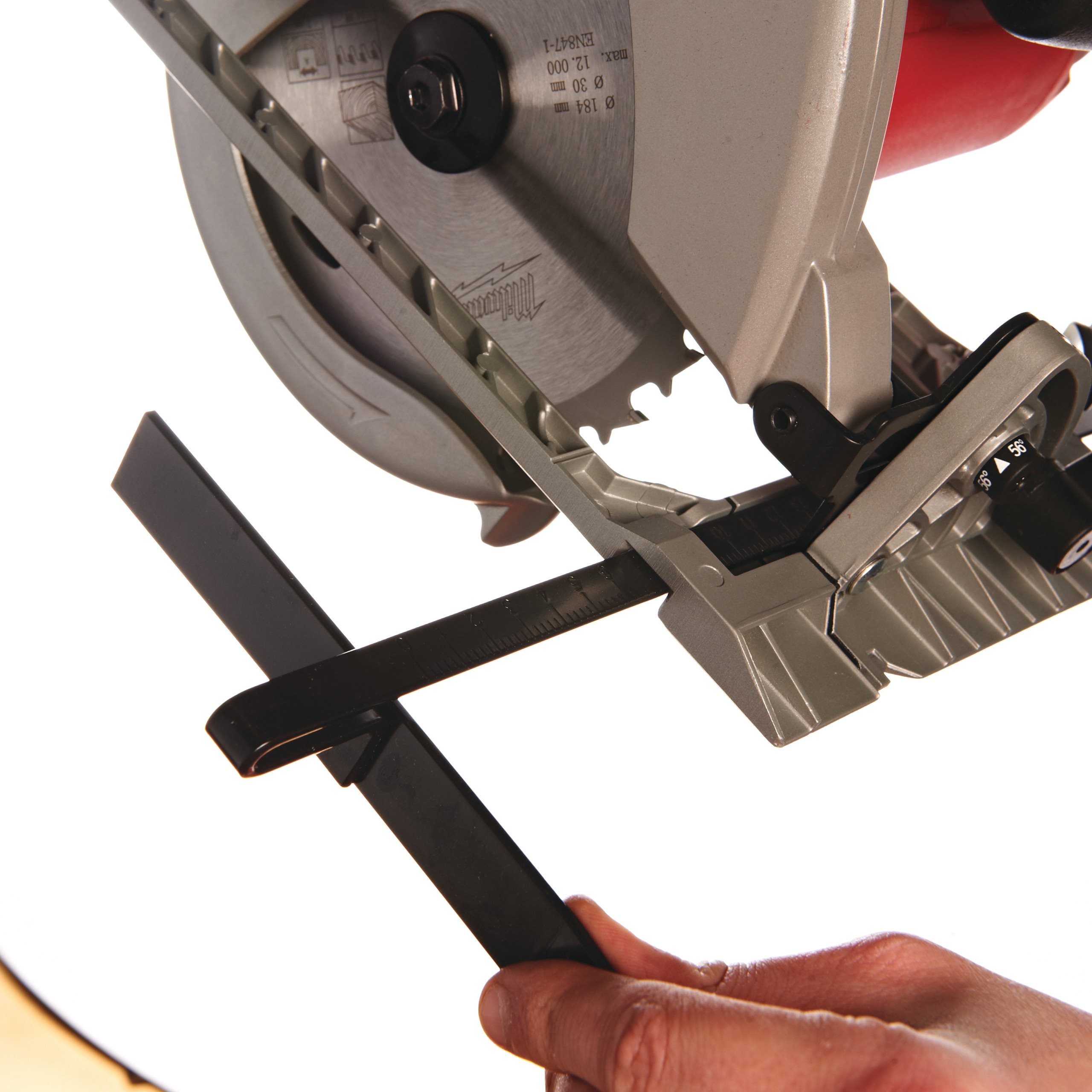

| Standard equipment | Side fence, saw blade key |
| Supplied in | No kitbox or bag supplied |
| Article Number | 4933419225 |
| EAN | 4002395238361 |
| Weight (kg) | 4.8 |
| Sound power level (Lwa)(dB(A)) | 103.5 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 92.5 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 2.3 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

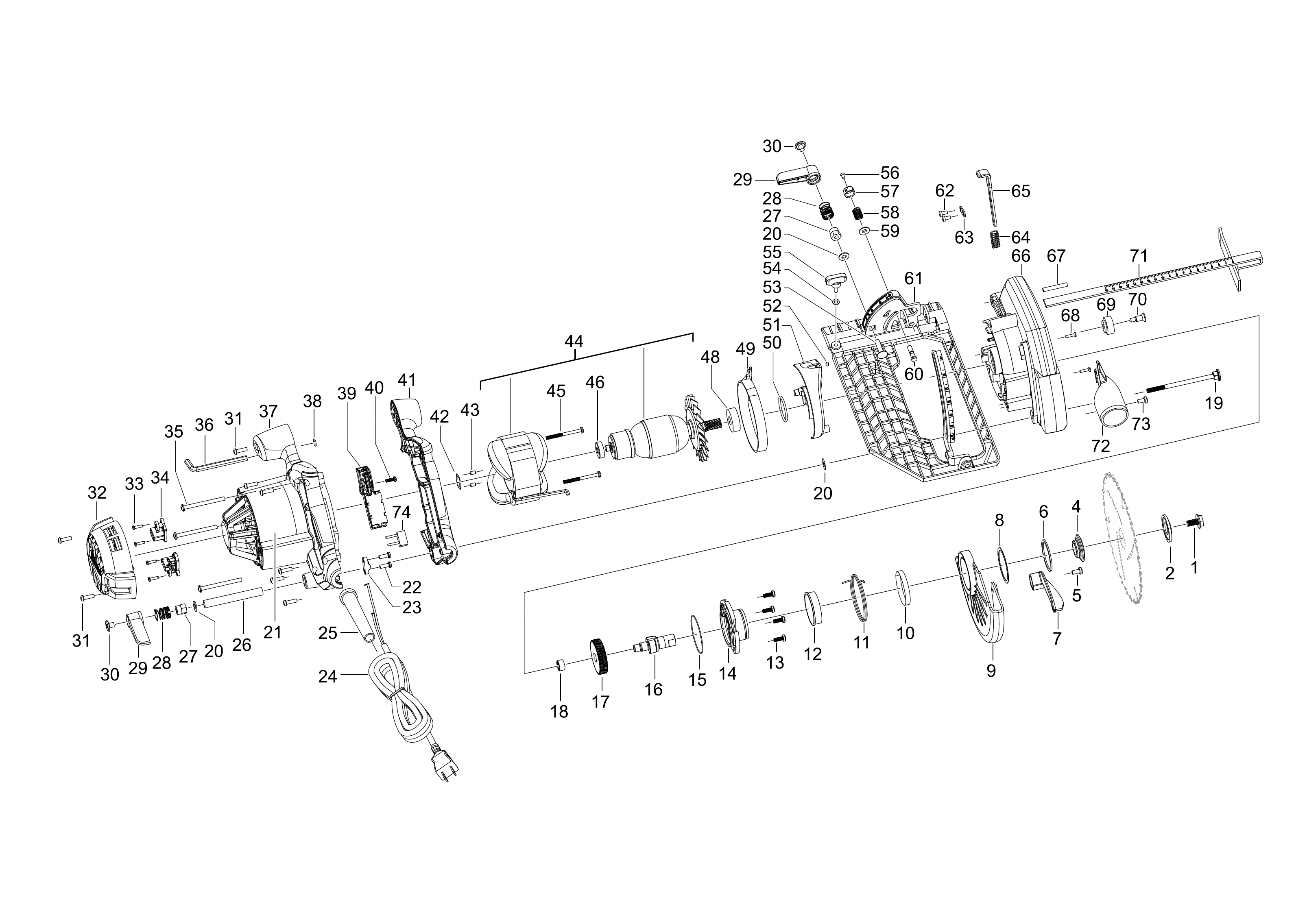

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 201531004 | CONNECTION CABLE | 1 |
| 290244021 | CAPACITOR | 1 |
| 290365001 | CARBON BRUSH | 2 |
| 290396003 | MOTOR | 1 |
| 302431005 | BASE PLATE | 1 |
| 340061002 | COVER | 1 |
| 351257001 | COVER | 1 |
| 511129004 | LOCKING BOLT | 1 |
| 513965004 | LEVER | 1 |
| 513967001 | WASHER | 1 |
| 514310001 | BUSH | 1 |
| 516847002 | COVER | 1 |
| 516848002 | SPRING | 1 |
| 516867002 | GUARD | 1 |
| 519211001 | ADAPTER | 1 |
| 519250002 | LEVER | 1 |
| 521255001 | MOTOR HOUSING | 1 |
| 521256001 | HOUSING | 1 |
| 550339001 | PLUG | 1 |
| 561487001 | CABLE ENTRY SLEEVE | 1 |
| 561488001 | O-RING | 1 |
| 561489001 | O-RING | 1 |
| 561984001 | RUBBER STOP | 1 |
| 562326001 | O-RING | 1 |
| 590501001 | CLAMP | 1 |
| 610641001 | PINION | 1 |
| 620536001 | SPINDLE | 1 |
| 631686001 | SPINDLE | 1 |
| 631687001 | PIN | 1 |
| 631876003 | WASHER | 1 |
| 632371003 | BUSH | 1 |
| 632425001 | CLAMP | 1 |
| 633375001 | SPINDLE LOCK | 1 |
| 633402001 | STOP | 1 |
| 641280002 | GUARD CAP | 1 |
| 641519004 | BUSH | 1 |
| 660024045 | SCREW | 1 |
| 660066005 | SCREW | 1 |
| 660151005 | SCREW | 1 |
| 660165011 | SCREW | 1 |
| 660203060 | SCREW | 1 |
| 660204009 | SCREW | 1 |
| 660208037 | SCREW | 1 |
| 660208094 | SCREW | 1 |
| 660841002 | NUT | 1 |
| 660842001 | BOLT | 1 |
| 660858003 | BOLT | 1 |
| 660982001 | SCREW | 1 |
| 660986001 | SCREW | 1 |
| 660988001 | SCREW | 1 |
| 660993002 | SCREW | 1 |
| 660997001 | SCREW | 1 |
| 661153002 | SCREW | 1 |
| 661197002 | SCREW | 1 |
| 661245002 | SCREW | 1 |
| 671237002 | SPRING WASHER | 1 |
| 671774002 | NEEDLE BEARING | 1 |
| 680778003 | RETAINING RING | 1 |
| 680980004 | ROLL | 1 |
| 681035001 | PRESSURE SPRING | 1 |
| 681036001 | SPRING | 1 |
| 681100001 | BALL BEARING | 1 |
| 681102001 | BALL BEARING | 1 |
| 681108001 | SPRING | 1 |
| 681231001 | SPANNER | 1 |
| 691142001 | WASHER | 1 |
| 692037001 | SPRING | 1 |
| 692038003 | SPRING | 1 |
| 692254001 | FLANGE | 1 |
| 692256001 | FLANGE | 1 |
| 760405005 | SWITCH | 1 |
| 940045452 | RATING PLATE | 1 |
Specifications
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Technology | Lithium-Ion (Li-Ion) |
| Blade Diameter | TBA |
| Blade Length | TBA |
| Blade Location | TBA |
| Blade Strength | TBA |
| Brand | Milwaukee |
| Cable Length | TBA |
| California Prop 65 Warning | TBA |
| Charging Time | TBA |
| Color | Red |
| Country/Region of Manufacture | TBA |
| Cutting Angle | TBA |
| Cutting Depth | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | CS 60 |
| Motor Type | TBA |
| MPN | 4933419225 |
| Number of Batteries | TBA |
| Number of Items in Set | TBA |
| Power Source | TBA |
| Safety Type IP | TBA |
| Set Includes | TBA |
| Suitable For | TBA |
| Type | Circular Saws |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
