Milwaukee AGV 26-230 GE DMS 2600 W Angle Grinder With AVS 4933402490
SKU: SKU250626193457002
EAN: 4002395234356
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | AGV 26 |
| MPN | 4933402490 |
| EAN | 4002395234356 |
| Product Category | Power Tools | Grinding and Polishing | 230mm Grinders |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Anti-kickback protection | No |
| AVS Anti-Vibration System | Yes |
| Brake | No |
| Disc diameter (mm) | 230 |
| Line lock out function | No |
| Max. cutting depth (mm) | 68 |
| No load speed (rpm) | 6600 |
| Power input (W) | 2600 |
| Rotatable main handle | Yes |
| Spindle size | M 14 |
| Standard equipment | Quick release safety guard, AVS side handle, Autobalancer, flange nut, wrench, 4 m cable |
| Supplied in | No kitbox or bag supplied |
| Switch type | Deadman switch |
| Variable speed | No |
| Article Number | 4933402490 |
| EAN | 4002395234356 |
| Weight (kg) | 5.5 |
| Sound power level (Lwa)(dB(A)) | 105 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 93 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration grinding (m/s²) | 2.6 |
| Vibration grinding uncertainty (m/s²) | 1.5 |
| Vibration sanding (m/s²) | <2.5 |
| Vibration sanding uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

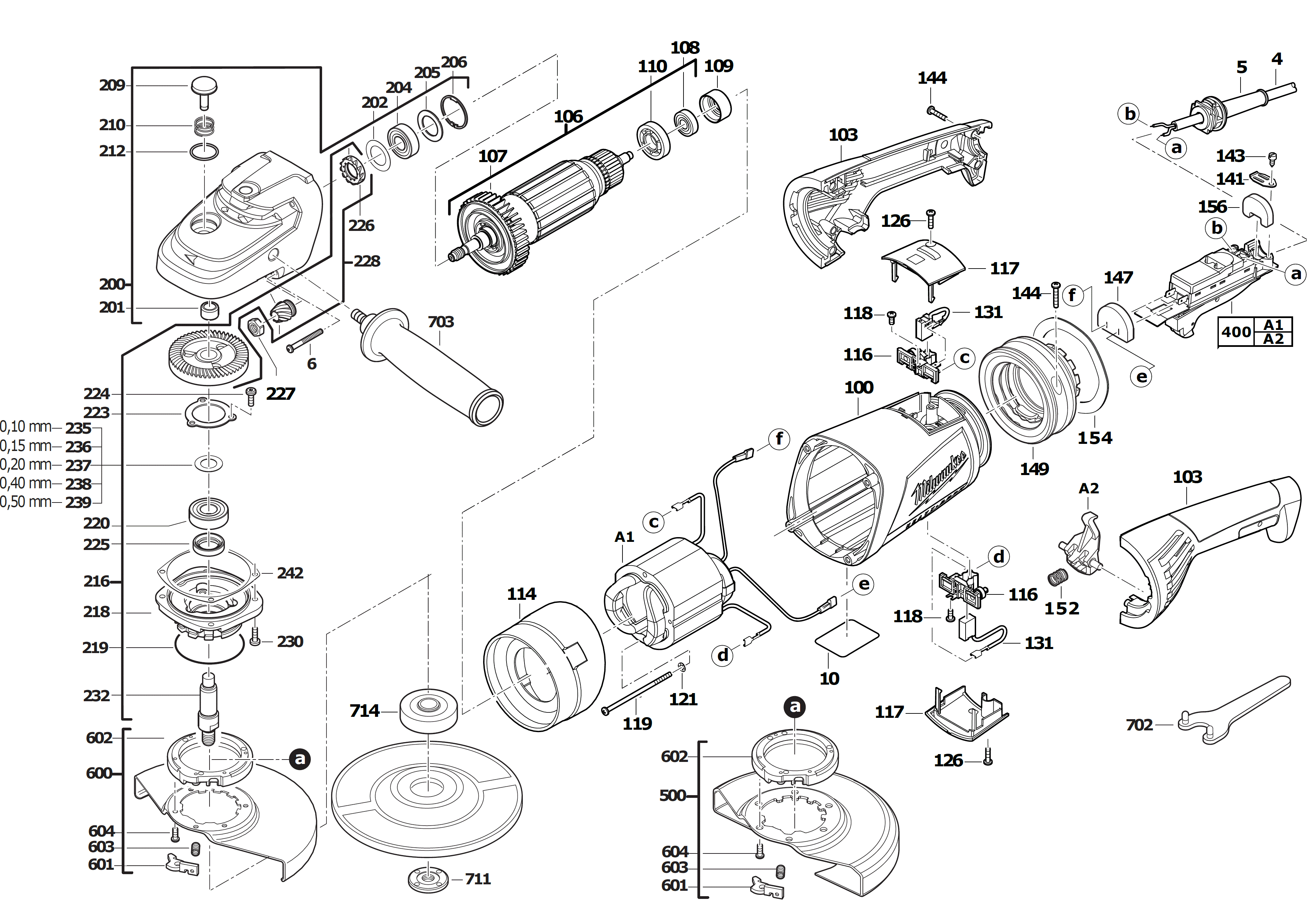

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 4931279734 | RUBBER SLEEVE | 1 |
| 4931329086 | RUBBER SLEEVE | 1 |
| 4931329150 | GASKET | 1 |
| 4931329173 | PRESSURE SPRING | 1 |
| 4931329178 | GREASE RETAIN.DISC | 1 |
| 4931329273 | CABLE COLLAR | 1 |
| 4931329494 | NUT | 1 |
| 4931331734 | SCREW | 2 |
| 4931334394 | FAN | 1 |
| 4931334400 | LOCKING RING | 1 |
| 4931341741 | BALL BEARING | 1 |
| 4931369479 | CARBON BRUSH SET | 1 |
| 4931381694 | BRUSH HOLDER | 2 |
| 4931387206 | PROTECTING COVER | 1 |
| 4931398251 | HANDLE | 1 |
| 4931402013 | DUST SEAL | 1 |
| 4931402029 | SPRING WASHER | 1 |
| 4931402039 | PRESSURE SPRING | 1 |
| 4931402063 | FLANGE | 1 |
| 4931402072 | CATCH LEVER | 1 |
| 4931402089 | PRESSURE SPRING | 1 |
| 4931402150 | BEARING COVER | 1 |
| 4931402161 | GEAR BOX | 1 |
| 4931402166 | LOCKING BOLT | 1 |
| 4931402169 | COVER | 2 |
| 4931402176 | SWITCH HANDLE | 1 |
| 4931402219 | SEAL RING | 1 |
| 4931402268 | MOTOR HOUSING | 1 |
| 4931402269 | AIR DEFLECTOR RING | 1 |
| 4931402286 | DUST SEAL | 1 |
| 4931402435 | AUTOBALANCER | 1 |
| 4931402546 | DRIVE GEAR | 1 |
| 4931407540 | GEAR ENDPLATE | 1 |
| 4931409592 | BEVEL GEAR PAIR | 1 |
| 4931409816 | SPINDLE | 1 |
| 4931426625 | GUARD CAP | 1 |
| 4931428099 | CUTTING GUARD | 1 |
| 4931442695 | ARMATURE | 1 |
| 4931455265 | DAMPER | 1 |
| 4931455392 | CONNECTION CABLE | 1 |
| 4931476750 | RATING PLATE | 1 |
| 4931476901 | REPAIR KIT | 1 |
| 4931618253 | SCREW | 6 |
| 4931619992 | SPRING WASHER D 137 B 4 | 2 |
| 4931621629 | DISC N874237 22,5X35X0,3 | 1 |
| 4931621981 | SLEEVE | 1 |
| 4931622747 | COMPENSATING WASHER | 1 |
| 4931622764 | O-RING | 1 |
| 4931622765 | SCREW N874101-1 SHR C-K5X45/20 KOMBITORX | 4 |
| 4931622897 | DISC | 1 |
| 4931623312 | WASHER N874237 | 1 |
| 4931624147 | SCREW D 7500 M 3X12 | 4 |
| 4931624305 | BALL BEARING | 1 |
| 4931624491 | SCREW | 5 |
| 4931624537 | SCREW | 1 |
| 4931624538 | SCREW | 2 |
| 4931624591 | WASHER | 1 |
| 4931624672 | SEAL RING | 1 |
| 4931624701 | DISC | 1 |
| 4931941094 | DISC N874237 18X27,9X0,5 | 1 |
| 4932345628 | FLANGE NUT M14 3MM P1 A/M | 1 |
| 4932367712 | PIN SPANNER 115-230/WP/WSAP1 A/M | 1 |
| 9170316990 | BEARING | 1 |
Specifications
| Action | TBA |
| Battery Capacity | TBA |
| Battery Included | No |
| Battery Type | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Disc Diameter | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Model | AGV 26 |
| MPN | 4933402490 |
| Power | TBA |
| Power Source | TBA |
| Type | 230mm Grinders |
| Unit Quantity | 1 |
| Unit Type | Unit |
| Voltage | TBA |
