Milwaukee WCS 45 1900 W 150 Mm DOC) Wall Chaser 4933383350
SKU: SKU250626193320001
EAN: 4002395229086
Milwaukee
Price Comparison
No recent prices available for this product
Prices are updated regularly. Please check back later.Product Description
| Condition | |
|---|---|
| New: A genuine product, unused and unopened in original packaging. |
| Main Product Information | |
|---|---|
| Brand | Milwaukee |
| Model | WCS 45 |
| MPN | 4933383350 |
| EAN | 4002395229086 |
| Product Category | Power Tools | Sawing and Cutting | Wall Chasers |
| Description | |
|---|---|
| Specifications | |
|---|---|
| Cutting width (mm) | 45 |
| Disc diameter (mm) | 150 |
| Max. cutting depth (mm) | 45 |
| No load speed (rpm) | 5800 |
| Power input (W) | 1900 |
| Spindle size | M 14 |
| Supplied in | Kitbox |
| Article Number | 4933383350 |
| EAN | 4002395229086 |
| Weight (kg) | 6.6 |
| Sound power level (Lwa)(dB(A)) | 110 |
| Sound power level uncertainty (dB(A)) | 3 |
| Sound pressure level (Lpa)(dB(A)) | 99 |
| Sound pressure level uncertainty (dB(A)) | 3 |
| Vibration level (m/s²) | 6.5 |
| Vibration uncertainty (m/s²) | 1.5 |
| What's Included | |
|---|---|
|

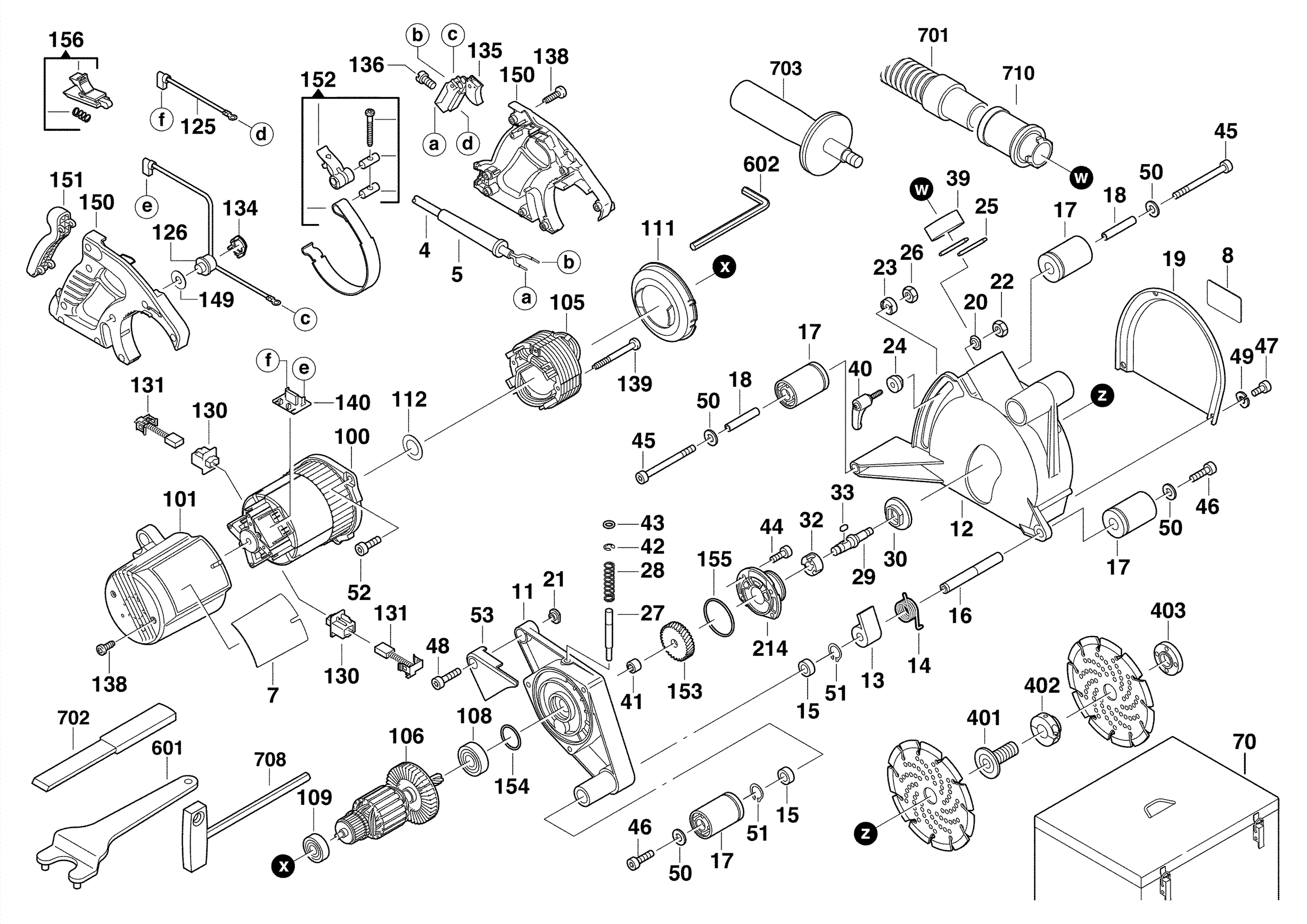

| Spare Parts | ||
|---|---|---|
 | ||
| Part Code | Description | Quantity |
|---|---|---|
| 02040847 | BALL BEARING | 1 |
| 02041850 | BALL BEARING | 1 |
| 05890045 | SCREW | 1 |
| 06827270 | SCREW | 1 |
| 12990005 | TYPE PLATE | 1 |
| 14201325 | CAPACITOR | 1 |
| 22180085 | CARBON BRUSH | 2 |
| 22220030 | BRUSH HOLDER | 1 |
| 23662117 | SWITCH | 1 |
| 23941180 | CABLE | 1 |
| 31050045 | AIR DEFLECTOR RING | 1 |
| 31500050 | HOUSING | 1 |
| 34401375 | O-RING | 1 |
| 34401380 | O-RING | 1 |
| 44520682 | HANDLE | 1 |
| 44760050 | CABLE CLAMP | 1 |
| 45880577 | WASHER | 1 |
| 4931362928 | T-SPANNER | 1 |
| 4931378806 | TYPE PLATE | 1 |
| 4931383373 | DRIVING PLATE | 1 |
| 4931383374 | GUARD CAP | 1 |
| 4931383375 | COVER | 1 |
| 4931383376 | SPRING | 1 |
| 4931383377 | BUSH | 2 |
| 4931383378 | AXLE | 1 |
| 4931383379 | ROLL | 4 |
| 4931383382 | WASHER | 1 |
| 4931383383 | SPACER | 1 |
| 4931383384 | AXLE | 2 |
| 4931383385 | BUSH | 1 |
| 4931383386 | WASHER | 1 |
| 4931383387 | RULER THRUST | 1 |
| 4931383388 | LOCKING ROD | 1 |
| 4931383389 | PRESSURE SPRING | 1 |
| 4931383390 | DRIVING SHAFT | 1 |
| 4931383392 | BUSH | 1 |
| 4931383393 | KEY | 1 |
| 4931383394 | Location bolt | 1 |
| 4931383395 | SLEEVE | 1 |
| 4931383396 | O-RING | 1 |
| 4931383397 | SCREW | 4 |
| 4931383399 | SCREW | 3 |
| 4931383422 | SEALING WASHER | 1 |
| 4931383499 | CLAMPING LEVER | 1 |
| 4931383504 | SCREW | 3 |
| 4931383609 | ARMATURE | 1 |
| 4931383610 | ELECTRIC FIELD | 1 |
| 4931383611 | CONNECTION CABLE | 1 |
| 4931383613 | BONNET | 1 |
| 4931383614 | HANDLE COMPL. | 1 |
| 4931383615 | STRIP-BAND | 1 |
| 4931383616 | GEAR | 1 |
| 4931383617 | SLIDER | 1 |
| 4931385349 | COVER | 1 |
| 4931385373 | SWITCH | 1 |
| 4931385599 | SWITCH RETAINER | 1 |
| 4931393186 | CLAMPING NUT | 1 |
| 4931393187 | ADJUSTING LOCK | 1 |
| 4931393224 | BEARING END PLATE | 1 |
| 4931393475 | COVER PLATE | 1 |
| 4931487373 | CARRYING CASE | 1 |
| 4931605142 | RING D471 12X1 | 2 |
| 4931606753 | SCREW DRIVER | 1 |
| 4931607021 | SCREW D912 M6X12 | 2 |
| 4931607960 | NUT D934 M6 | 1 |
| 4931615511 | SEALING WASHER | 4 |
| 4931621502 | NUT | 1 |
| 4931621973 | SHAFT CLIP | 1 |
| 4931623799 | SPRING WASHER | 3 |
| 4931624124 | SCREW D 912 M 4X10 SSI | 1 |
| 4931943567 | NEEDLE BEARING N874989 HK 1010 | 1 |
| 4932209035 | HANDLE 180-230/WP/WSA P1A/M | 1 |
| 4932263299 | CLAMPING FLANGE WS115-230 P1 A/M | 1 |
| 4932334704 | TUYAU ASPIRATION 4M | 1 |
| 4932362778 | ADAPTER DME P1 AEG | 1 |
| 4932371358 | BREAK-OUT CHISEL DME P1 AEG | 1 |
| 4932371469 | PIN SPANNER WS(A) P1 A/M | 1 |
| 9170019900 | SCREW | 2 |
Specifications
| Action | TBA |
| Brand | Milwaukee |
| Colour | Red |
| Country/Region of Manufacture | TBA |
| Features | TBA |
| Item Diameter | TBA |
| Item Height | TBA |
| Item Length | TBA |
| Item Weight | TBA |
| Item Width | TBA |
| Manufacturer Warranty | TBA |
| Material | TBA |
| Model | WCS 45 |
| MPN | 4933383350 |
| Number of Pieces | TBA |
| Size | TBA |
| System of Measurement | TBA |
| Type | Wall Chasers |
| Unit Quantity | 1 |
| Unit Type | Unit |
