Panasonic EY74A3X Dual Voltage 14.4v/18v Drill Driver Body Only

Panasonic EY74A3X Cordless Brushless Dual Voltage 14.4v/18v Drill Driver Body Only

Next generation intelligent control technology

The Panasonic EY74A3 Drill Driver features Panasonic''s new "Smart BL" technology - the new leading-edge micro-controller delivering optimal brushless motor output. This allows maximised tool performance, delivering the power and speed to suit your task. The drill automatically adjusts between speeds for easier work and higher torque as the load increases.

This EY74A3X version comes supplied as body only - batteries, charger and accessories are sold separately.

PANASONIC EY74A3 FEATURES

\n
• Smart BL - maximised tool performance with optimal brushless motor output
\n
• Built in high-efficiency micro-controller
\n
• Grip torque control ensures good progress under heavy load
\n
• Rotation and torque are optimised to speed up jobs
\n
• Automatic adjustment between a fast rotation speed for lighter work and higher torque whenever load increases
\n
• Tungsten chuck inserts for ultimate grip and long life
\n

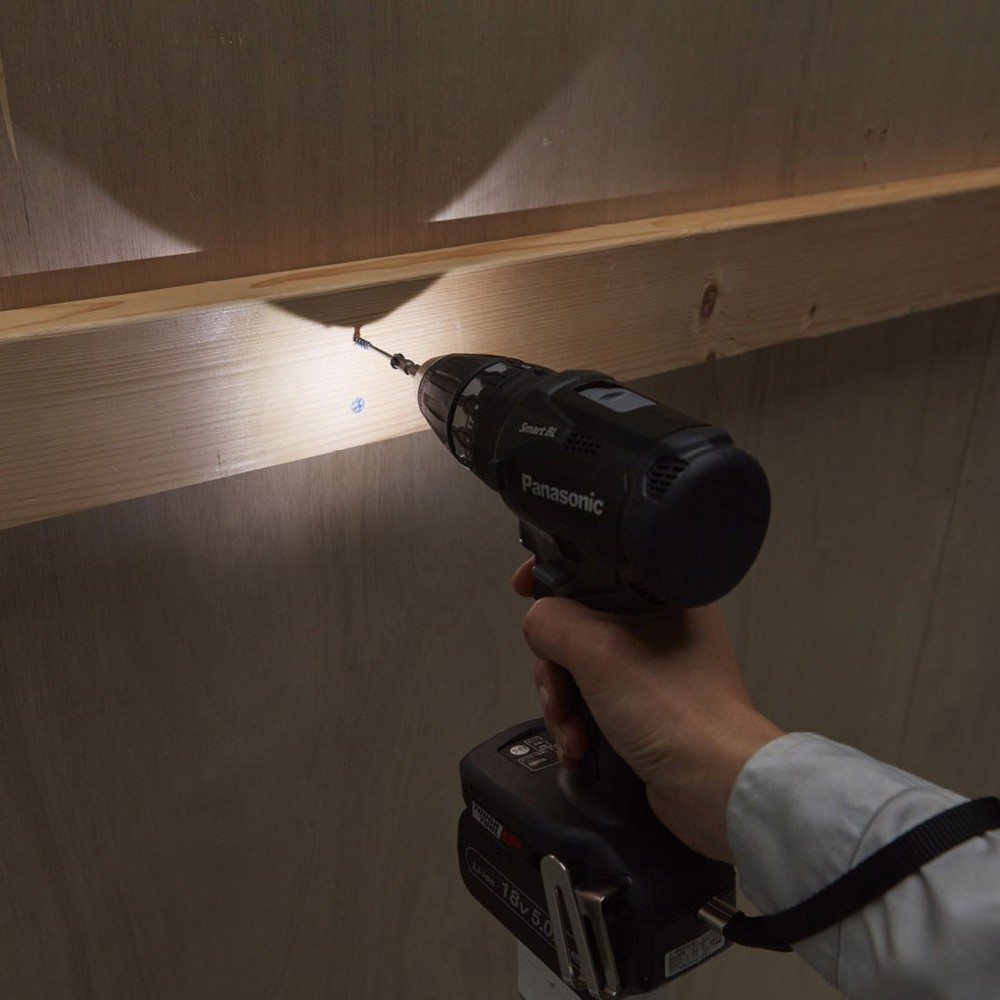

• Better LED illumination (150% improvement vs EY74A2) for working in dark areas
\n
• Innovations such as the new aluminium bodied chuck make the EY74A3 lighter and easier to handle
\n
• New metal tapping mode for maximum convenience and accuracy allowing automatic reverse without having to change the toggle
\n
• The base of the device includes storage space for 2x 56mm bits (to left and right)
\n
• Includes the Panasonic TOUGH TOOL IP technology (IP = Intelligent Powertool)
\n

PANASONIC EY74A3 SPECIFICATION

\n
• Voltage: 14.4v / 18v Dual Voltage
\n
• Chuck: Keyless Chuck 1.5mm-13mm
\n
• Stalling Torque (18v): Low Speed: 32Nm
\n
• Stalling Torque (18v): High Speed: 12Nm
\n
• Instant Torque (18v): Low Speed: 50Nm
\n
• Instant Torque (14.4v): Low Speed: 40Nm
\n
• No-Load Speed (18v): Low Speed: 20-530 Rpm
\n
• No-Load Speed (18v): High Speed: 70-1800 Rpm
\n
• Clutch Torque: 0.5-4.4 Nm (0.23 Nm per Stage, Total 18 Stage)
\n
• Drilling Capacity (5.0Ah High Mode - Hole Saw SPC 21x1.6mm): 45
\n
• Drilling Capacity (5.0Ah High Mode - Wood/Pine 15x120mm): 240
\n
• Drilling Capacity (5.0Ah High Mode - Wood/Pine 21x120mm): 150
\n
• Drilling Capacity (5.0Ah High Mode - Core Drill 65x16/12): 45
\n
• Screwing Capacity (5.0Ah High Mode - Woodscrew/Pine 4.1x25mm): 1550
\n
• Screwing Capacity (5.0Ah High Mode - Coach Bolt/Pine M6x80mm): 300
\n
• Dimensions (18v 5.0Ah): L 189 x H 254 x D 68
\n
• Weight (18v 5.0Ah): 2 Kg
\n
