Evolution RAGE5-S 255mm Table Saw With TCT Multi Material Cutting Blade

Evolution RAGE5-S 255mm Table Saw 110v or 240v With TCT Multi Material Cutting Blade

The most versatile, multi-material cutting quality table saw on the market - the RAGE5-S will easily cut steel, aluminium, wood (even wood with embedded nails) and plastic, using just one blade. Excellent at ripping thin stock, making accurate crosscuts and handling sheet materials.

FEATURES

\n
• Multi-Material cutting technology - one saw, one blade, cuts all
\n
• Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide
\n
• Reliable smooth square cutting every time in a variety of materials
\n
• Powerful hi-torque motor with an optimized gearbox & blade system
\n

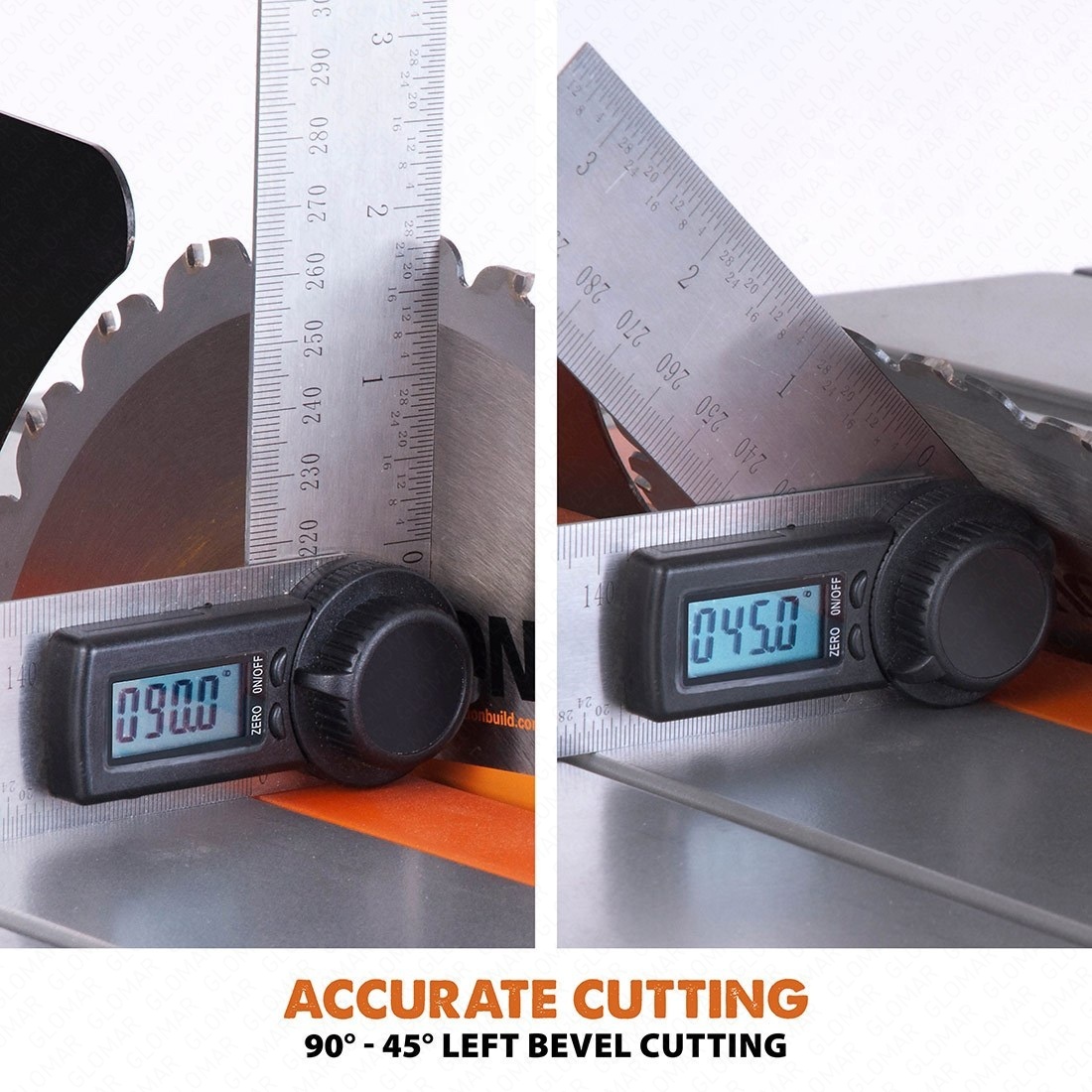

• 0- 45-degree bevel tilt and 60 - 60-degree mitre fence covers all common, compound cutting angles
\n
• 83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees
\n

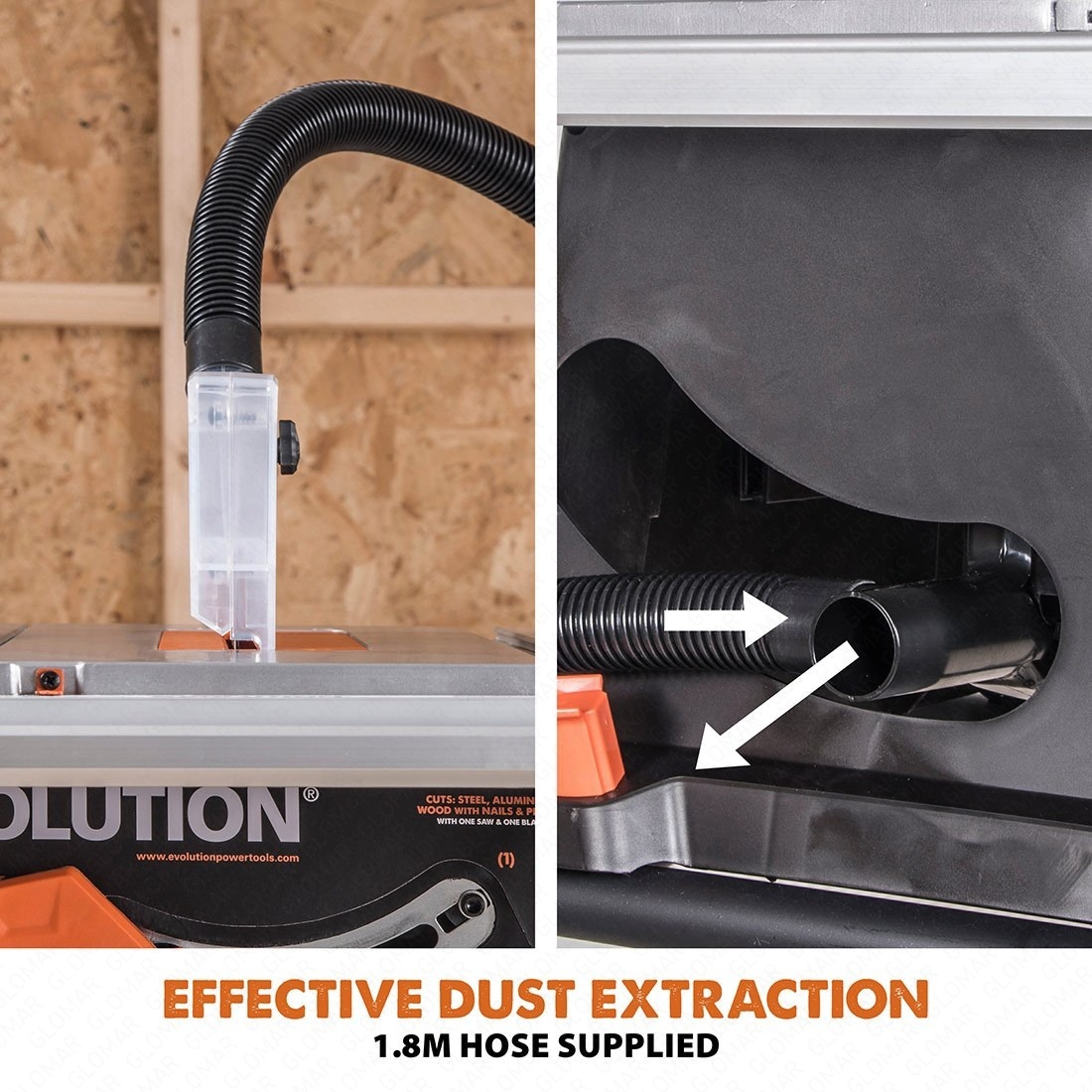

• Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately)
\n
• Collapsible frame with wheels for easy storage and portability
\n

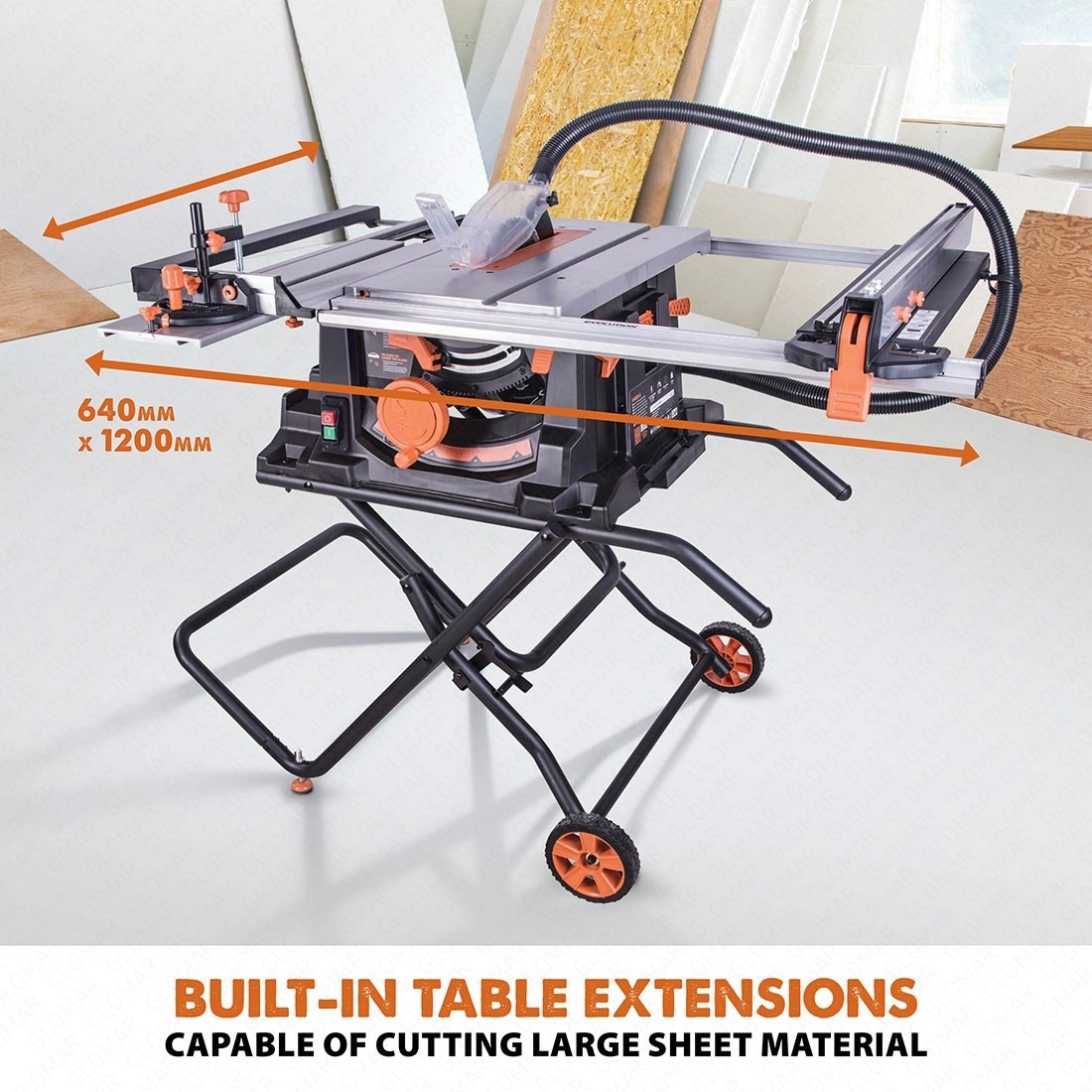

• Left and right table extensions support wide work-pieces with a table surface area of 1200mm x 640mm when fully extended
\n
• 1.5m durable cable with the built-in storage cable holder
\n
• Push Stick included for safer operation when handling smaller offcuts
\n
• Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included
\n

SPECIFICATION

\n
• Motor (110v/240v): 1600 / 1500 W
\n
• No Load Speed: 2500 rpm
\n
• Max Bevel (Left): 45°
\n
• Blade Diameter: 255mm
\n
• No. of Teeth: 24
\n
• Bore: 25.4mm
\n
• Kerf: 2.0mm
\n
• Max. Depth of Cut (0°): 83mm
\n
• Max. Depth of Cut (45°): 58mm
\n
• Mild Steel Plate (Max. Thickness): 6mm
\n
• Rip Capacity (Right of the Blade): 650mm
\n
• Rip Capacity (Left of the Blade): 305mm
\n
• Riving Knife Thickness: 1.8mm
\n
• Dimensions (With Leg Assembly): 1050 x 750 x 940mm
\n
• Dimensions (Without Leg Assembly): 880 x 730 x 330mm
\n
• Max. Table Dimensions: 1200 x 640mm
\n
• Min. Table Dimensions: 745 x 640mm
\n
• Product Weight: 28.5 kg
\n

NOISE & VIBRATION

\n
• Sound Pressure Level: 93.2 dB(A)
\n
• Sound Power Level: 106.2 dB(A)
\n
• Uncertainty K: 3 dB(A)
\n

Available In 110v & 240v
